TELEGÄRTNER TNC-bus voor RG-58, 50 Ohm, crimp/soldeer, DC-11 GHz

Engineered for high-frequency performance up to 11 GHz, this TNC female jack connector delivers a VSWR of ≤1.2 at 6 GHz, ensuring minimal signal reflection in demanding RF applications. The threaded coupling mechanism provides secure mating and reliable connectivity in vibration-prone environments.

Overview

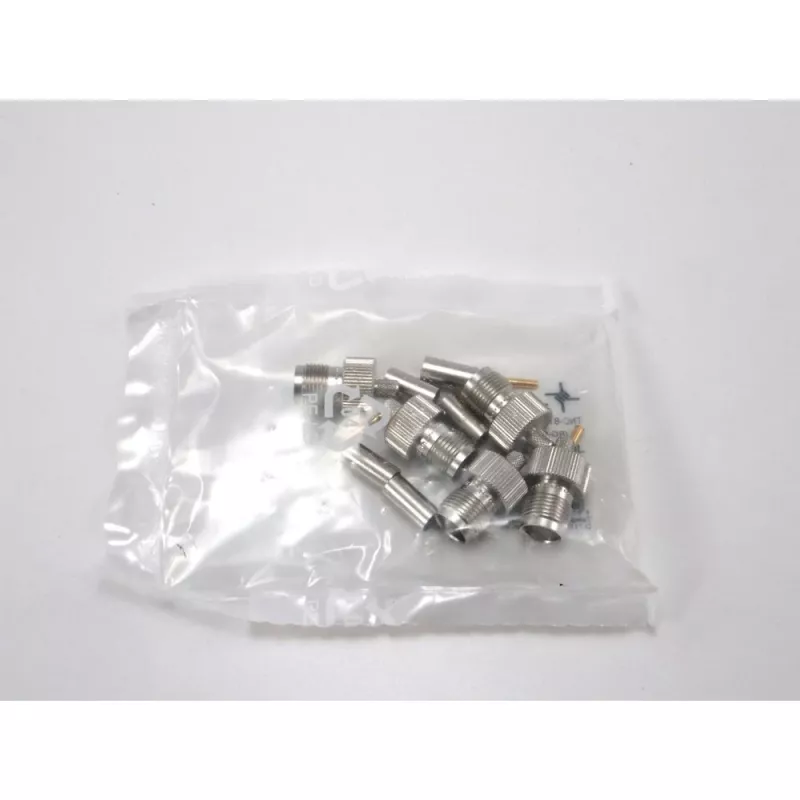

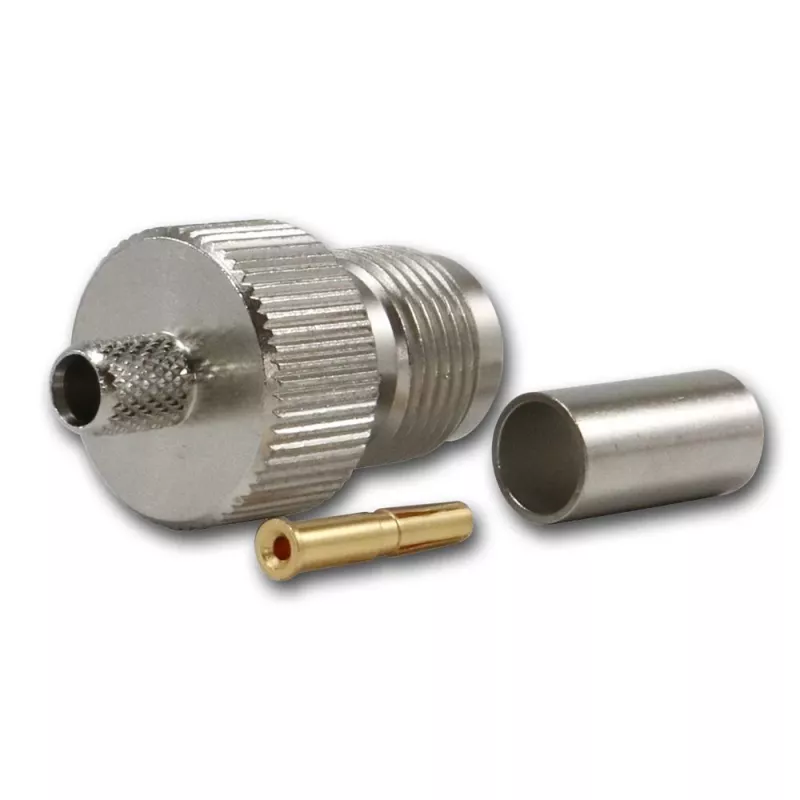

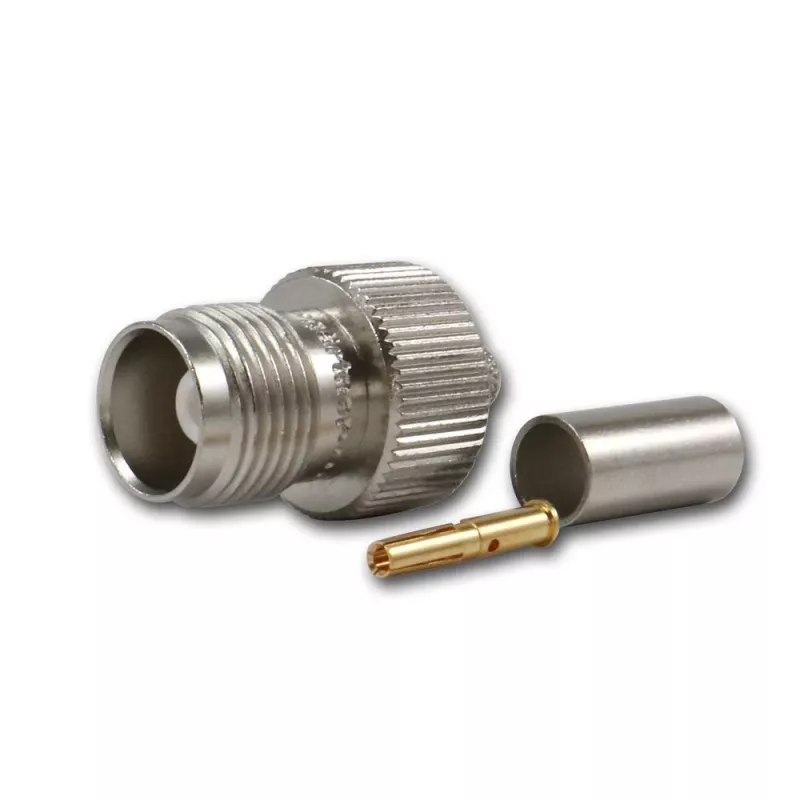

The TELEGÄRTNER 100023786 is a cable-mount TNC female jack connector designed for coaxial cables including RG-58, RG-141, RG-142, RG-223, RG-400, URM 43, URM 76, and KX 15. With a 50 Ohm impedance, it is ideal for wireless, telecommunications, and test equipment. The connector features a solder center contact and crimp outer contact for durable, low-loss terminations.

What stands out

• Wide frequency range: DC to 11 GHz with excellent VSWR characteristics.
• Robust construction: brass body with nickel plating and gold-plated center contact.
• High mating durability: ≥500 mating cycles for long service life.
• Broad cable compatibility: supports multiple RG and URM cable types.
• Wide operating temperature range: -55 °C to +155 °C for harsh environments.

Technical details

• Connector type: TNC
• Gender: Female (Jack)
• Impedance: 50 Ohm
• Termination: Solder center contact, crimp outer contact
• Mounting type: Cable mount
• Frequency range: DC to 11 GHz
• VSWR: ≤1.2 at 6 GHz
• Dielectric withstanding voltage: 1500 Veff
• Operating voltage: 500 Veff
• Body material: Brass, nickel-plated
• Center contact: Brass, gold-plated
• Insulator: PTFE
• Coupling mechanism: Threaded
• Mating cycles: ≥500
• Operating temperature: -55 °C to +155 °C

Our verdict

A high-quality TNC connector that combines precision RF performance with rugged construction, suitable for professional wireless and coaxial applications.
