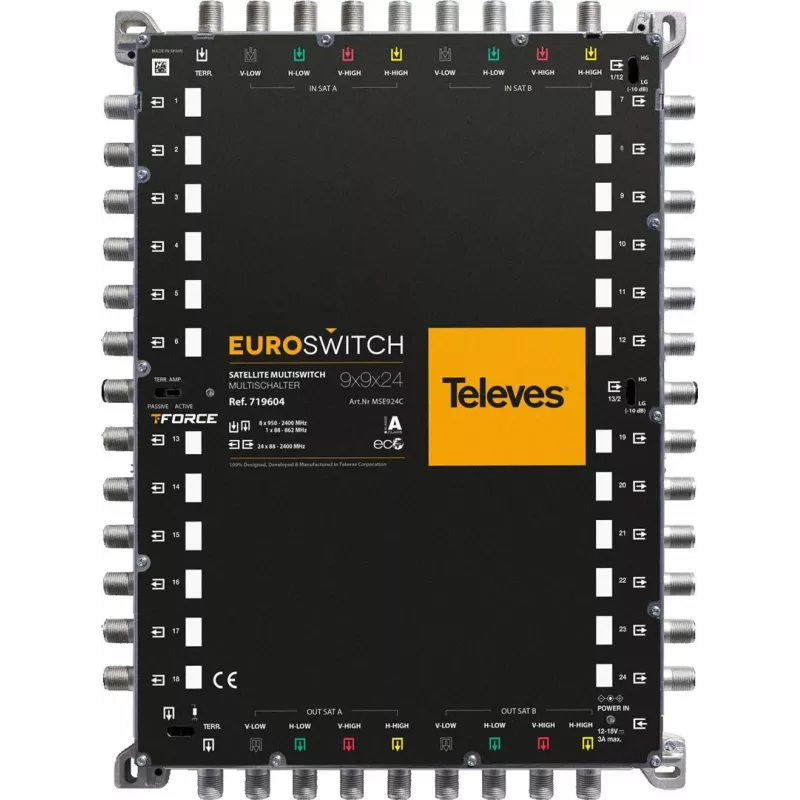

TELEVES EuroSwitch 9x9x24 cascaded multiswitch 8 SAT + 1 TER ingangen 24 gebruikersuitgangen ref. 719604

The TELEVES EuroSwitch 9x9x24 (ref. 719604) is a high-performance cascaded multiswitch designed for distributing satellite and terrestrial TV signals in large residential or commercial installations. With 8 satellite inputs (2 satellites, 4 polarities each) and 1 terrestrial input, it provides 24 user outputs and 9 trunk outputs (8 SAT + 1 TER), enabling flexible signal distribution to multiple subscribers.

Advantages

This multiswitch offers exceptional signal quality with low insertion loss and high isolation between ports (>30 dB SAT-SAT and SAT-TER). It supports DiSEqC 2.0 control protocol for seamless integration with modern satellite systems. The internal power supply (230V AC) ensures reliable operation, and the compact design allows for easy installation in distribution cabinets.

Suitable for

• Multi-dwelling units (apartment buildings, hotels)
• Office complexes and commercial buildings
• Single-family homes with multiple TV outlets
• Satellite and terrestrial TV distribution systems

Key specifications

• Product Type: Cascaded Multiswitch
• Number of Satellite Inputs: 8 (2 Satellites, 4 polarities each)
• Number of Terrestrial Inputs: 1
• Number of User Outputs: 24
• Number of Trunk Outputs: 9 (8 SAT + 1 TER)
• Satellite Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 47 - 862 MHz
• Satellite User Output Gain: 0 to 5 dB
• Terrestrial User Output Gain: -1 to 3 dB
• Satellite Trunk Loss: -2 to 2 dB
• Terrestrial Trunk Loss: -1 to 3 dB
• Control Protocol: DiSEqC 2.0 (compatible with 1.0)
• Input/Output Connectors: F-type
• Power Supply: Internal, 230V AC
• Maximum Power Consumption: 30 W
• Isolation (SAT-SAT): >30 dB
• Isolation (SAT-TER): >30 dB
• Operating Temperature: -5 to +45 °C

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. This multiswitch is ideal for new installations or upgrades of existing distribution networks. Pair with TELEVES amplifiers and splitters for a complete system solution.
