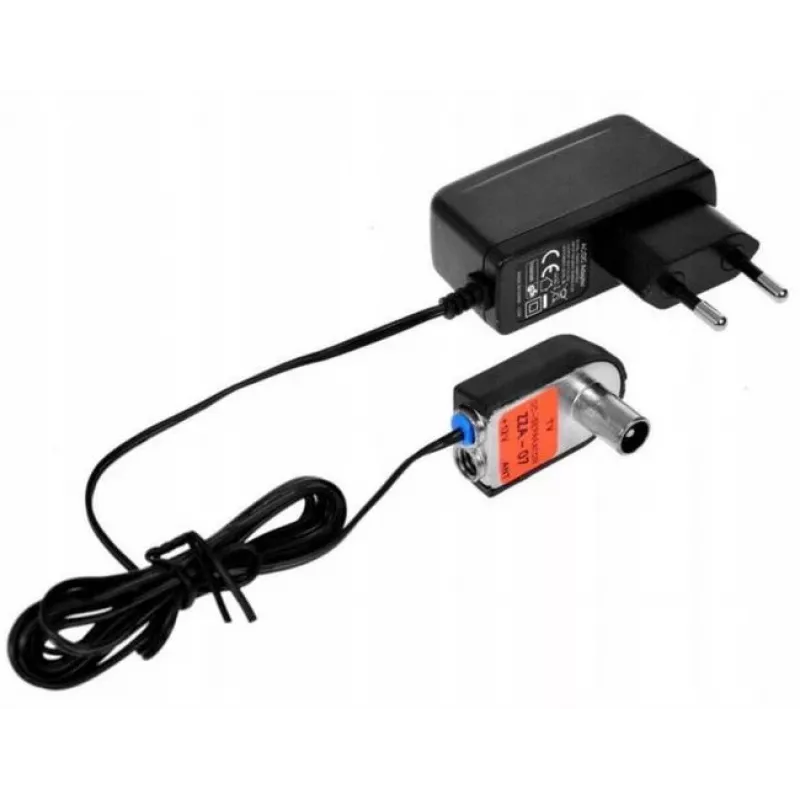

Telmor ZZA-7 Antennevoeding met diplexer

The Telmor ZZA-7 is a high-quality antenna power supply with an integrated RF/DC diplexer, designed to provide reliable power to active DVB-T/T2 antennas. It combines a 12V DC power supply with a signal splitter, allowing both power and RF signal to be transmitted over a single coaxial cable. This compact and efficient unit is ideal for indoor use, ensuring stable reception of VHF/UHF signals.

Advantages

Simplifies installation by combining power supply and signal splitting in one device. Features short-circuit protection and an LED power indicator for safe and easy operation. Low power consumption of less than 3W makes it energy-efficient.

Suitable for

• Active DVB-T/T2 indoor antennas
• VHF/UHF signal distribution systems
• Home entertainment setups requiring antenna signal amplification

Key specifications

• Input Voltage: 230V AC
• Input Frequency: 50 Hz
• Output Voltage: 12V DC
• Output Current: 100 mA
• RF Frequency Range: 47 - 862 MHz (VHF/UHF)
• Number of RF Outputs: 1
• Connector Type: 2x F-type (female)
• Insertion Loss: < 1 dB
• Impedance: 75 Ohm
• Power Consumption: < 3 W
• Protection Features: Short-circuit protection
• Indicator: LED power indicator
• Application: Indoor use
• Operating Temperature: -10°C to +50°C

Recommendations

For optimal performance, use with compatible active DVB-T/T2 antennas and ensure proper connection of F-type connectors. This device is intended for indoor use only.
