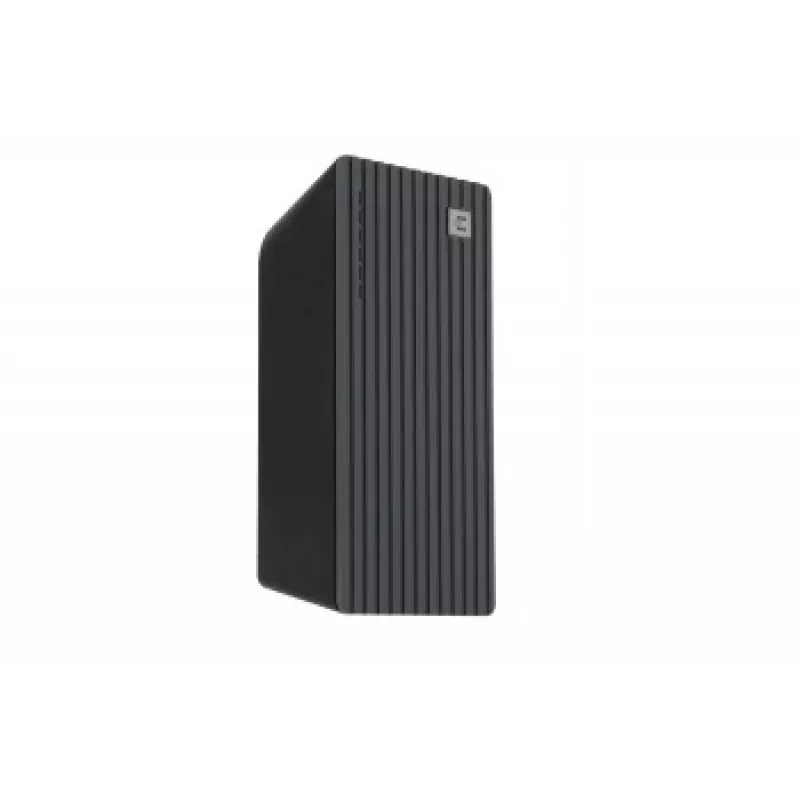

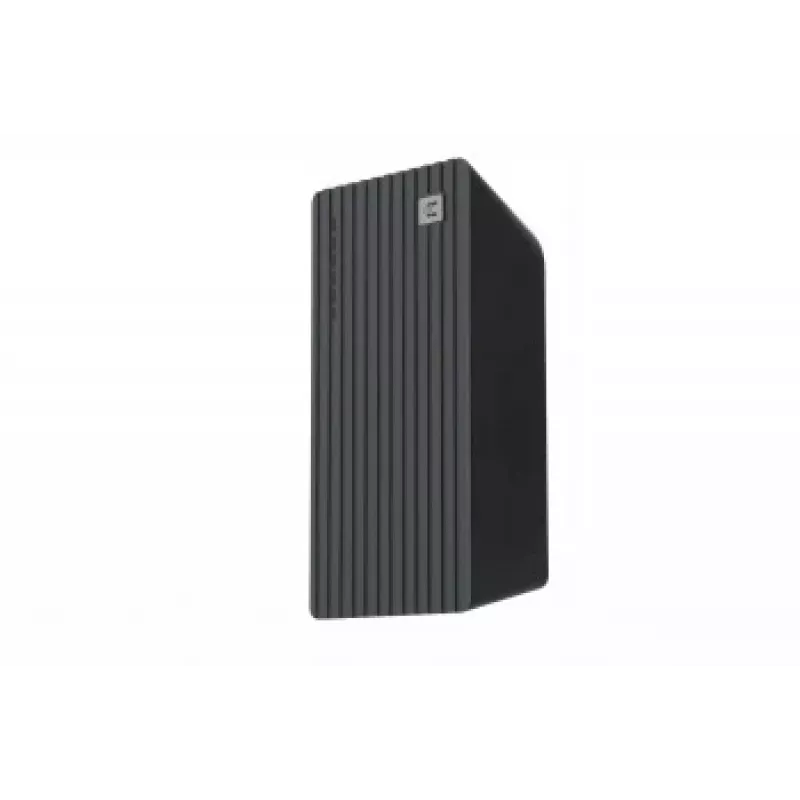

TELTONIKA TELTOCHARGE - zonder frontplaat 22kW/3-fase/Type 2 (5m kabel)

The Teltonika TeltoCharge is a high-performance electric vehicle (EV) charging station designed for commercial and residential use. This model comes without a front panel, offering a robust 22kW charging power with 3-phase input and a Type 2 connector with a 5-meter cable. It supports OCPP 1.6J for smart charging management and features integrated MID-certified energy metering for accurate billing.

Advantages

With 22kW output, the TeltoCharge significantly reduces charging time compared to standard 11kW units. Its dynamic load balancing (DLB) ensures optimal power distribution, preventing grid overload. The IP55 and IK10 ratings guarantee durability in harsh environments, while RFID and mobile app authentication provide secure access control.

Suitable for

• Commercial parking lots and fleet depots
• Office buildings and multi-unit residential complexes
• Public charging stations requiring OCPP compliance
• Installations where a front panel is not required

Key specifications

• Charging Power: 22 kW (AC)
• Phases: 3-Phase
• Connector Type: Type 2 (IEC 62196-2)
• Cable Length: 5 meters
• Input Voltage: 400 V AC
• Max Input Current: 32 A
• Frequency: 50/60 Hz
• Connectivity: Wi-Fi, Bluetooth, Ethernet (RJ45), 4G LTE (optional)
• Authentication: RFID (ISO/IEC 14443A/B), Mobile App
• OCPP Support: OCPP 1.6J
• Residual Current Device (RCD): Type A + 6mA DC
• Enclosure Rating: IP55
• Impact Resistance: IK10
• Operating Temperature: -30°C to +50°C
• Mounting Type: Wall-mounted
• Special Feature: No Front Panel
• Energy Metering: Integrated MID-certified
• Load Balancing: Dynamic Load Balancing (DLB) support
• User Interface: LED Status Indicator, Mobile App
• Certifications: CE, UKCA

Recommendations

For optimal performance, ensure the installation is carried out by a certified electrician. The unit requires a 3-phase power supply with a minimum 32A circuit breaker. Pair with the Teltonika Remote Management System (RMS) for remote monitoring and firmware updates.
