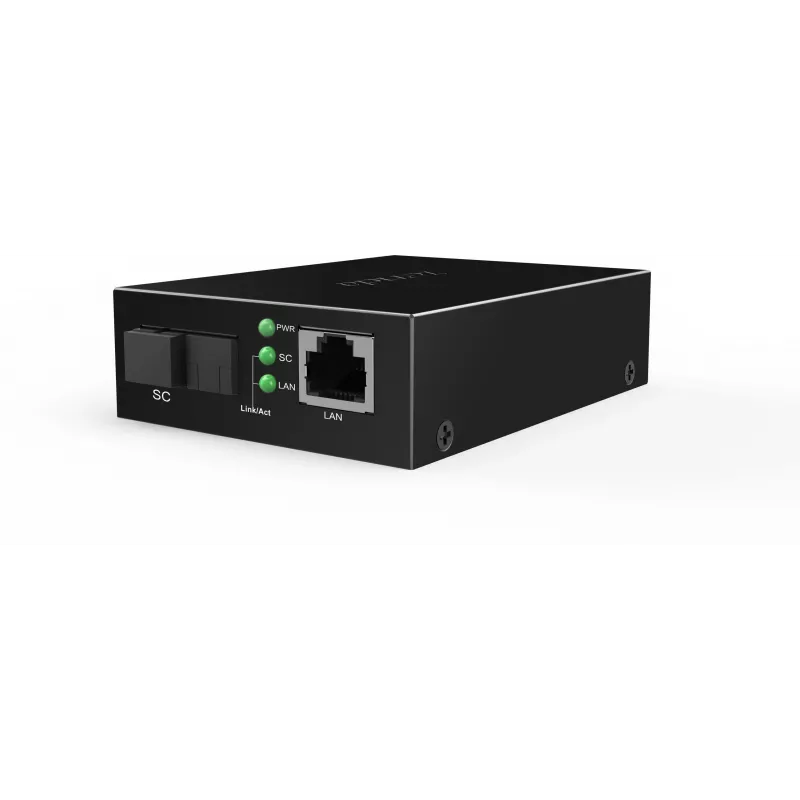

Tenda TFC100A Fast Ethernet mediaconverter, single-mode SC, 20 km

The Tenda TFC100A is a high-performance Fast Ethernet media converter designed to extend network connectivity over long distances. It converts 10/100Base-TX copper signals to 100Base-FX fiber signals, supporting single-mode fiber with SC connectors for distances up to 20 km. Ideal for connecting remote networks, surveillance systems, and enterprise LANs, this plug-and-play device ensures reliable data transmission with auto MDI/MDIX and full/half-duplex support.

Advantages

With the TFC100A, you can overcome the distance limitations of traditional copper Ethernet. It provides a cost-effective solution for extending your network up to 20 km using single-mode fiber, ensuring stable and secure data transfer. The compact desktop design and external power adapter make installation simple and flexible.

Suitable for

• Extending network reach in office buildings, campuses, and industrial facilities
• Connecting remote IP cameras and surveillance systems
• Integrating fiber optic backbones into existing copper networks
• ISP and telecom applications requiring long-distance connectivity

Key specifications

• Product Type: Fast Ethernet Media Converter
• Ethernet Port: 1x 10/100Base-TX RJ45
• Fiber Port: 1x 100Base-FX SC (Single-mode)
• Fiber Wavelength: 1310 nm
• Max Fiber Distance: 20 km
• Data Rates: 10/100 Mbps (Ethernet), 100 Mbps (Fiber)
• Duplex: Full/Half (Ethernet), Full (Fiber)
• LED Indicators: PWR, FX Link/Act, TX Link/Act, FX FDX/COL, TX FDX/COL, TX 100
• Power Supply: External DC 5V/1A Adapter
• Jumbo Frame Support: Up to 1536 bytes
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% non-condensing
• Mounting: Desktop
• Plug and Play: Yes
• Auto MDI/MDIX: Yes

Recommendations

For optimal performance, use with single-mode fiber patch cables (SC connectors) and ensure the fiber distance does not exceed 20 km. The converter is compatible with any standard 10/100Base-TX switch or router.
