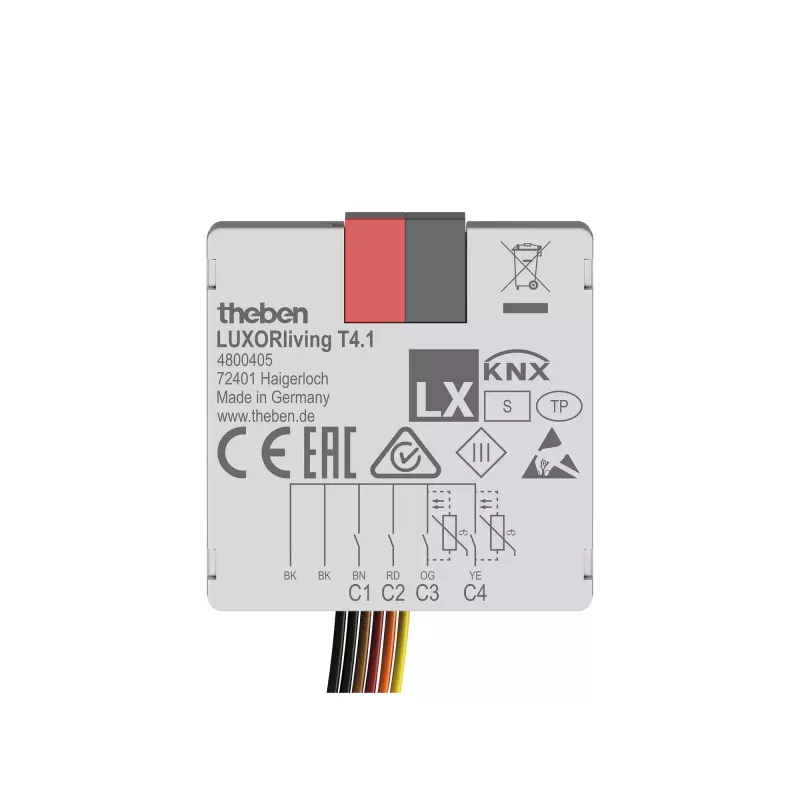

Theben LUXORliving T4.1 taster-interface, 4-kanaals, inbouwmontage 4800405

The LUXORliving T4.1 from Theben converts conventional push-buttons or potential-free contacts into KNX-compatible inputs for the LUXORliving smart home system. Unlike a standalone actuator, it mounts directly behind standard switches in a flush-mounted box, preserving the existing room aesthetic while adding four independent control channels.

Highlights

• Four potential-free inputs for switches, push-buttons, or contacts
• Each input configurable for switching, dimming, blinds, scenes, or value transmission
• Powered directly from the LUXORliving bus – no separate power supply needed
• Compact design with screwless plug-in terminals for quick installation
• Compatible with standard flush-mounted boxes and common switch ranges

In daily use

Install the T4.1 behind a standard switch or push-button, connect the existing wiring to the screwless terminals, and connect the two-wire LUXORliving bus. Using the LUXORliving IP-Router or ETS software, assign each input a function: toggle a light, dim a lamp, move blinds, recall a scene, or send a value. The device remains completely hidden, so the room's design stays unchanged.

Full specifications

• Number of channels: 4
• Input type: potential-free contacts
• Bus system: Theben LUXORliving
• Mounting type: flush-mounted
• Power supply: via LUXORliving bus
• Functions per input: switching, dimming, blinds, scenes, value transmitter
• Max. input cable length: 30 cm
• Connection terminals: screwless plug-in terminals
• Operating temperature: -5 to +45 °C
• Storage temperature: -25 to +70 °C
• Bus connection: 2-wire bus cable
• Installation depth: 12 mm
• Programming method: LUXORliving IP-Router / ETS software
• Housing material: plastic
• Compatibility: standard flush-mounted boxes

Final note

The T4.1 is a discreet way to integrate existing push-buttons into a LUXORliving installation, offering flexible control without additional visible devices.
