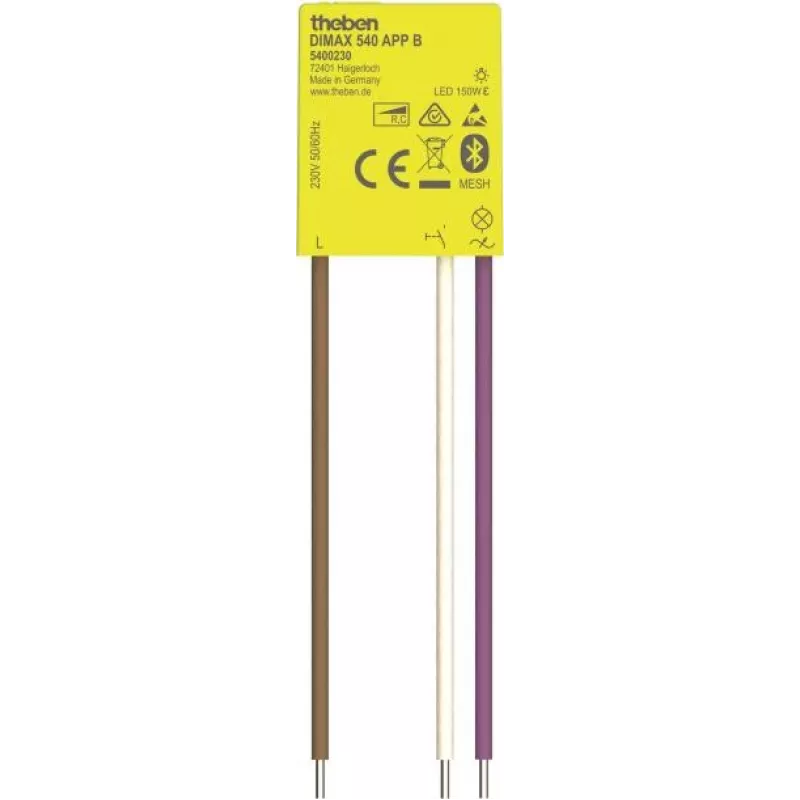

Theben Mini-universele dimmer UP DIMAX 540 APP B (5400230) - inbouw-universele dimmer met Bluetooth

Lighting control in modern buildings often requires flexible dimming for various lamp types, including LEDs and halogens. The Theben Mini-Universaldimmer UP DIMAX 540 APP B solves this by offering universal dimming compatibility in a compact flush-mounted design, controlled via push button or Bluetooth app.

Who is it for

Electricians, installers, and homeowners seeking a reliable dimmer for mixed lighting loads, especially where remote control and app-based configuration are desired.

Main features

• Universal dimming for dimmable LEDs, incandescent, and HV/LV halogen lamps
• Control via push button or Bluetooth using the theben DIMAX app
• Automatic load detection for optimal dimming performance
• Adjustable minimum brightness and memory function
• Staircase light function and overload/short-circuit protection

Specifications

• Operating voltage: 230 V AC, 50 Hz
• Switching capacity: 3-200 W for LED and LV halogen with electronic transformer; 3-250 W for incandescent/HV halogen; 3-200 VA for LV halogen with wound transformer
• Standby power consumption: < 0.5 W
• Protection class: IP20
• Connection: screw terminals, 0.5 - 2.5 mm²
• Operating temperature: 0°C to +45°C

Tips

Ensure the connected load is within the specified wattage range for the lamp type. Use the app for advanced settings like minimum brightness and staircase function.
