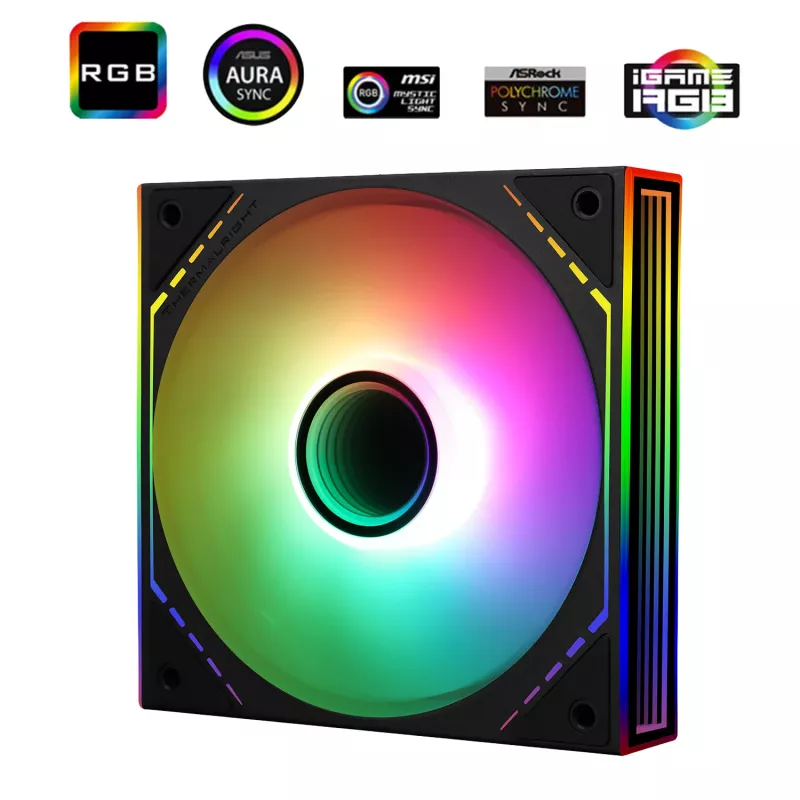

Thermalright TL-M12-S PWM ARGB 120-mm behuizingsventilator, zwart

High-performance PC builds often struggle with heat buildup, especially when using air coolers or compact cases with restricted airflow. The Thermalright TL-M12-S PWM ARGB fan directly addresses this by delivering strong static pressure and precise speed control, ensuring your components stay cool under load. Its addressable RGB lighting adds a customizable visual flair without compromising on cooling efficiency.

Who is it for

This fan is ideal for PC enthusiasts and gamers who demand both performance and aesthetics. Whether you're upgrading a CPU cooler, optimizing case airflow, or building a themed rig with synchronized lighting, the TL-M12-S offers the reliability and visual appeal needed for modern systems.

Main features

• 120mm PWM fan with speed range from 900 to 2000 RPM for dynamic cooling
• High static pressure of 2.04 mmH2O, perfect for radiators and heatsinks
• Addressable RGB LEDs (3-pin 5V) for vibrant, customizable lighting effects
• Fluid Dynamic Bearing (S-FDB) ensures quiet operation and long lifespan
• Maximum airflow of 66.17 CFM to efficiently exhaust hot air
• Low noise level of just 27.7 dBA at full speed

Specifications

• Fan dimensions: 120 x 120 x 25 mm
• Bearing type: S-FDB (Fluid Dynamic Bearing)
• Fan speed: 900 - 2000 RPM ±10%
• Max airflow: 66.17 CFM
• Max static pressure: 2.04 mmH2O
• Noise level: 27.7 dBA
• Fan connector: 4-pin PWM
• LED connector: 3-pin 5V ARGB
• Rated voltage: 12V DC (fan), 5V DC (LED)
• Rated current: 0.15 A (fan), 0.30 A (LED)
• Power consumption: 1.8 W (fan), 1.5 W (LED)
• MTTF: 60,000 hours
• Colour: Black
• Quantity: 1 fan

Tips

For optimal cooling, mount the TL-M12-S as an exhaust at the rear or top of your case, or pair it with a radiator for CPU liquid cooling. Use your motherboard's ARGB software to synchronize lighting with other components. Ensure proper orientation: the side with the fan blades should face the interior for intake, or the exterior for exhaust.
