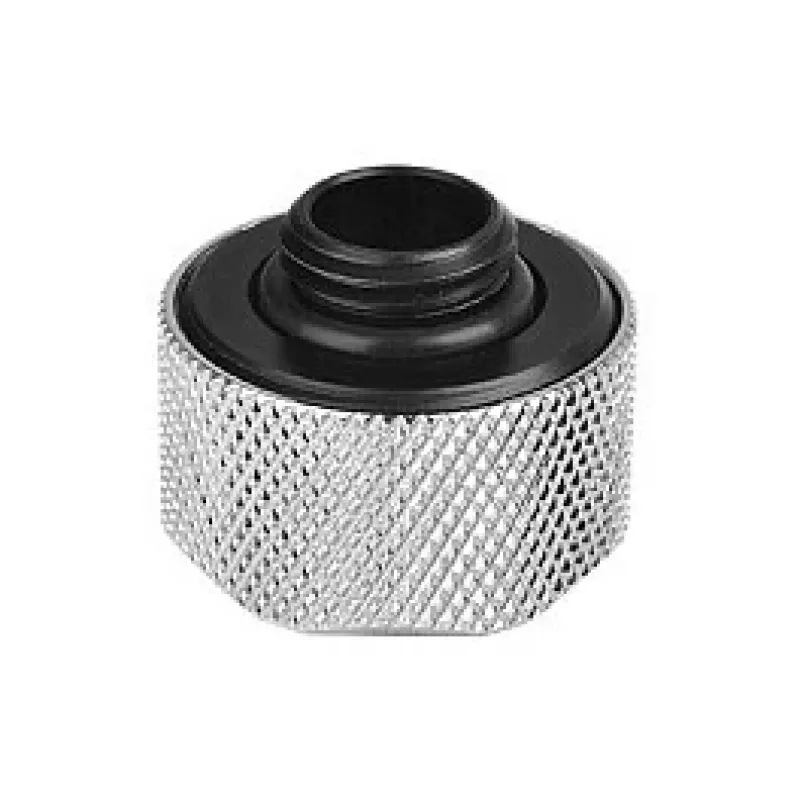

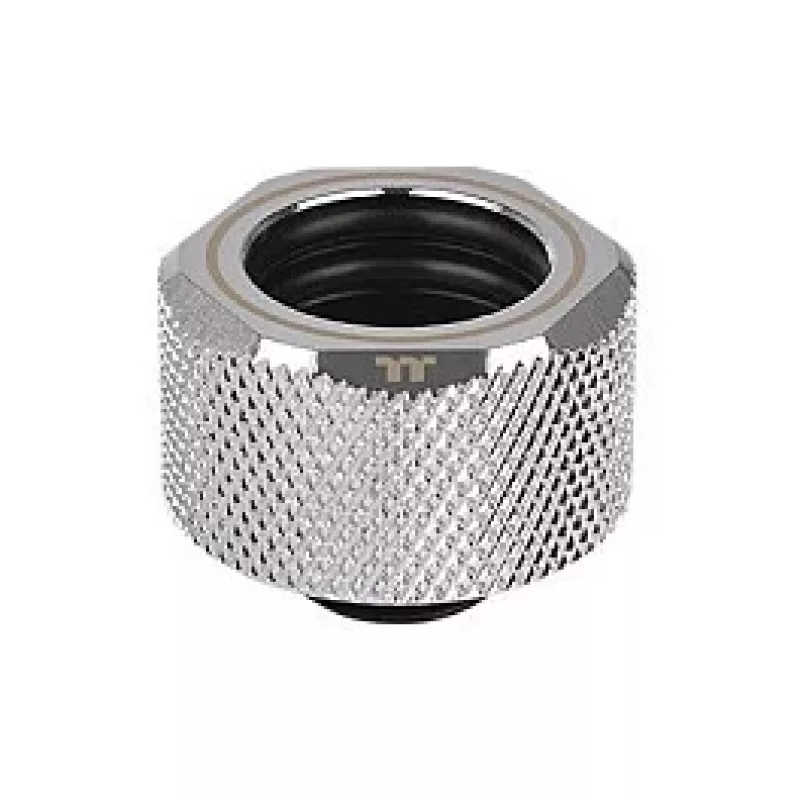

Thermaltake Pacific C-PRO G1/4 PETG buis 16mm buitendiameter compressiefitting chroom

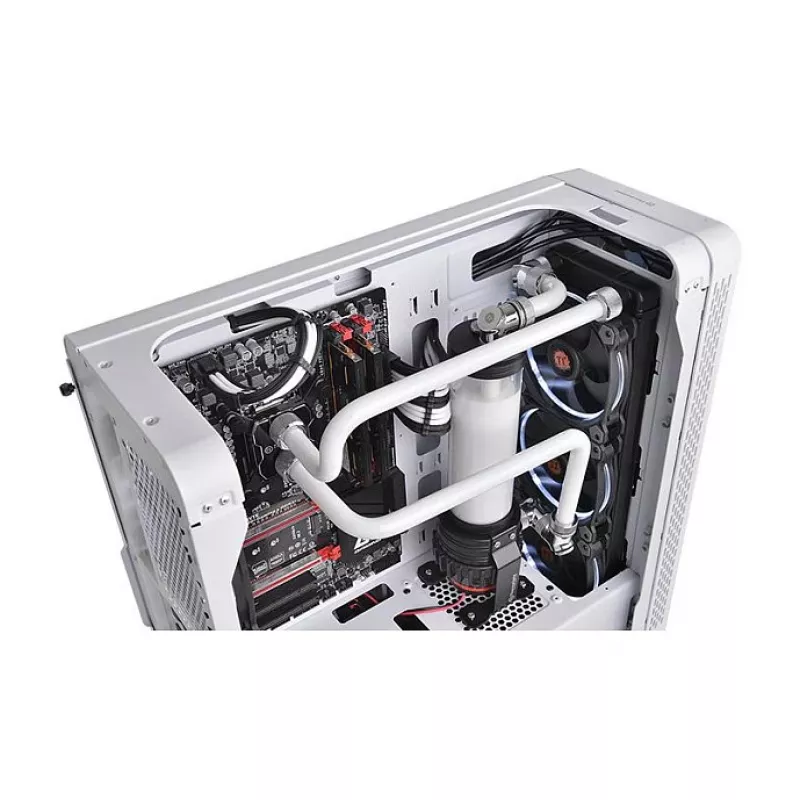

Leak-free connections in custom liquid cooling loops demand fittings that seal perfectly on hard tubing. The Thermaltake Pacific C-PRO G1/4 compression fitting for 16mm OD PETG tubes delivers a secure, high-flow link between your tubing and components like water blocks, radiators, pumps, and reservoirs. Its double O-ring design prevents leaks, while the 360-degree rotatable base simplifies tube routing in tight spaces.

Who is it for

PC builders and modders who use 16mm outer diameter PETG hard tubing and need reliable, chrome-finished compression fittings for their custom water cooling system.

Main features

• Compression fitting for 16mm OD PETG hard tube
• G1/4" BSPP thread fits standard liquid cooling components

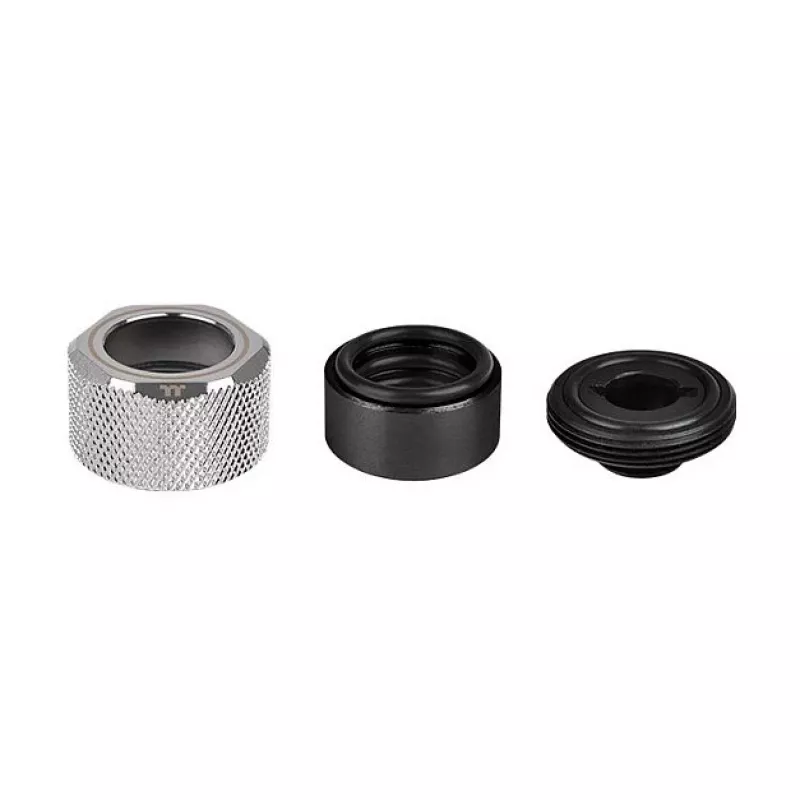

• Double O-ring seal for leak prevention
• 360-degree rotatable for flexible installation
• Nickel-plated brass construction with chrome finish
• High-flow design minimizes restriction
• Corrosion-resistant plating

Specifications

• Fitting type: Compression
• Thread size: G1/4" BSPP
• Compatible tubing: PETG hard tube, 16mm OD
• Material: Nickel-plated brass
• Finish: Chrome
• Seal: Double O-ring
• Rotation: 360 degrees
• Dimensions: 23.8 x 23.8 x 32.5 mm
• Weight: 0.045 kg

Tips

Hand-tighten the fitting to avoid damaging the O-rings. Ensure the tube end is cut squarely and deburred for a proper seal.
