TMSS GERMANY OsiSense XS6 inductieve naderingssensor M8, PNP NO, M12-connector, 2,5 mm detectieafstand, XS608B1PAM12

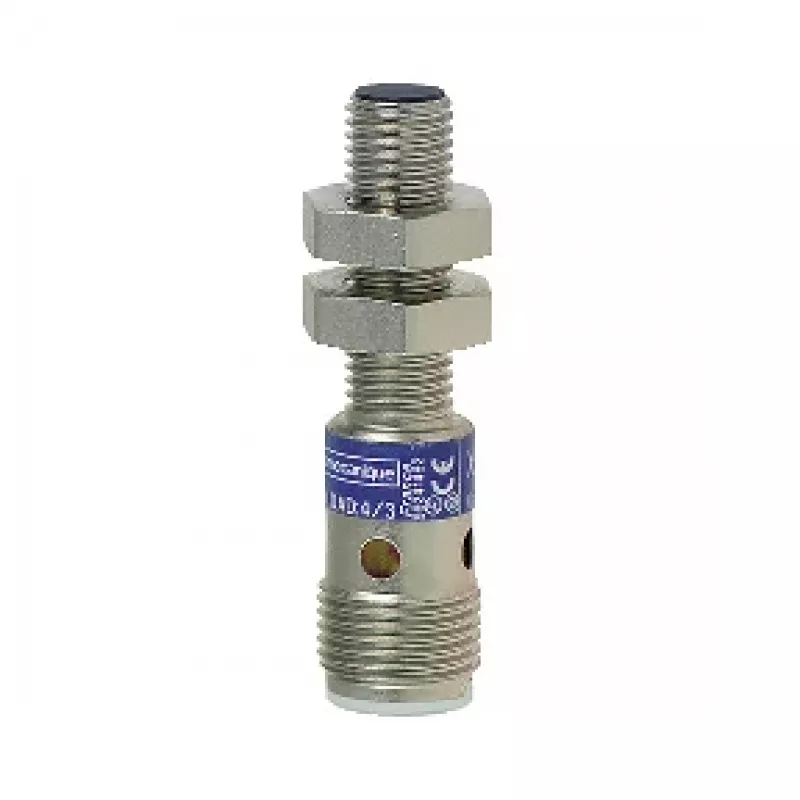

With a 2.5 mm sensing distance and a switching frequency up to 2500 Hz, this M8 cylindrical inductive proximity sensor delivers fast, reliable detection in tight spaces. The XS608B1PAM12 from TMSS GERMANY's OsiSense XS6 series is built for flush mounting and features a robust nickel-plated brass housing rated IP67 and IP69K.

Overview

This 3-wire DC sensor provides a PNP normally open output and connects via a 4-pin M12 male connector. It operates on a 12-48 V DC supply and switches loads up to 200 mA. An integrated yellow LED indicates output status at a glance.

What stands out

• High switching frequency of 2500 Hz for rapid response applications.
• Flush mountable design for easy integration into machine surfaces.
• Durable nickel-plated brass body withstands harsh environments (IP67, IP69K).
• Wide supply voltage range (12-48 V DC) offers flexibility in system design.

Technical details

• Sensor type: Inductive proximity sensor
• Series: OsiSense XS6
• Diameter: M8 (8 mm)
• Length: 45 mm
• Sensing distance: 2.5 mm
• Output function: 1 NO (normally open)
• Output type: PNP
• Wiring technique: 3-wire DC
• Connection: M12 male connector, 4-pin
• Supply voltage: 12-48 V DC
• Switching capacity: ≤ 200 mA
• Current consumption: ≤ 10 mA (no-load)
• Case material: Nickel-plated brass
• Operating temperature: -25 to 70 °C
• Protection: Short-circuit, overload, reverse polarity

Our verdict

A compact and robust inductive sensor for industrial automation, offering high-speed switching and easy flush mounting in demanding conditions.
