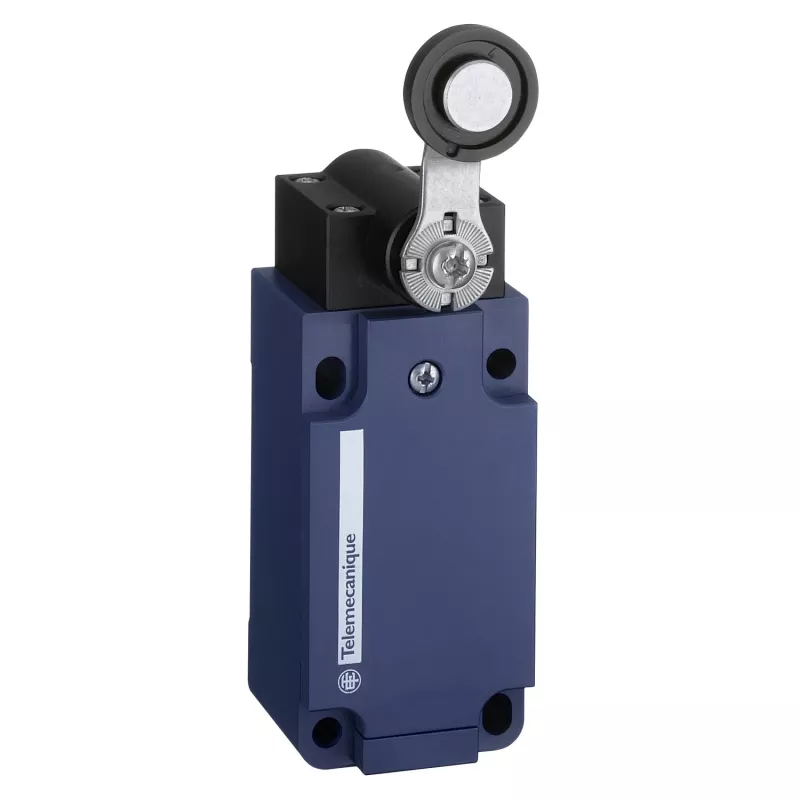

TMSS GERMANY Telemechanique Sensors eindschakelaar IP65 XCKS131H29

The TMSS GERMANY XCKS131H29 stands out as a robust limit switch built for demanding industrial environments, featuring a compact plastic housing with a metal head for enhanced durability. Its roller plunger actuator with spring return ensures reliable position detection in automated machinery.

Highlights

• Snap action contacts: 1 NC + 1 NO
• IP66, IP67, IP68 protection rating
• Mechanical durability of 10 million cycles
• Operating temperature range: -25 to 70 °C
• Pre-travel: 1.5 mm, total travel: 4.5 mm

In daily use

This limit switch is designed for precise end-of-travel detection in conveyors, machine tools, and assembly lines. The roller plunger actuator reduces friction and wear, while the screw clamp terminals allow for secure and straightforward wiring. The PBT housing resists oils and chemicals, making it suitable for harsh factory conditions.

Full specifications

• Product Series: OsiSense XCKS
• Sensor Type: Limit Switch
• Actuator Type: Roller plunger, spring return
• Actuator Material: Thermoplastic roller
• Housing Material: PBT (Plastic)
• Head Material: Zamak (Metal Alloy)
• Contact Configuration: 1 NC + 1 NO
• Contact Operation: Snap action
• Electrical Connection: Screw clamp terminals
• Cable Entry: 1 entry tapped for M20 x 1.5 cable gland
• IP Protection Rating: IP66, IP67, IP68
• IK Protection Rating: IK07
• Rated Insulation Voltage: 400 V (IEC), 300 V (UL/CSA)
• Rated Operational Current: 3 A at 240 V AC-15, 0.27 A at 250 V DC-13
• Mechanical Durability: 10,000,000 cycles
• Operating Temperature: -25 to 70 °C
• Shock Resistance: 50 gn for 11 ms
• Vibration Resistance: 25 gn (10-500 Hz)
• Pre-travel: 1.5 mm
• Total Travel: 4.5 mm

Final note

A reliable choice for industrial automation, the XCKS131H29 combines high protection ratings with long mechanical life, ensuring consistent performance in challenging conditions.
