TNC-stekker voor crimpen LMR 200 DeLOCK 90019

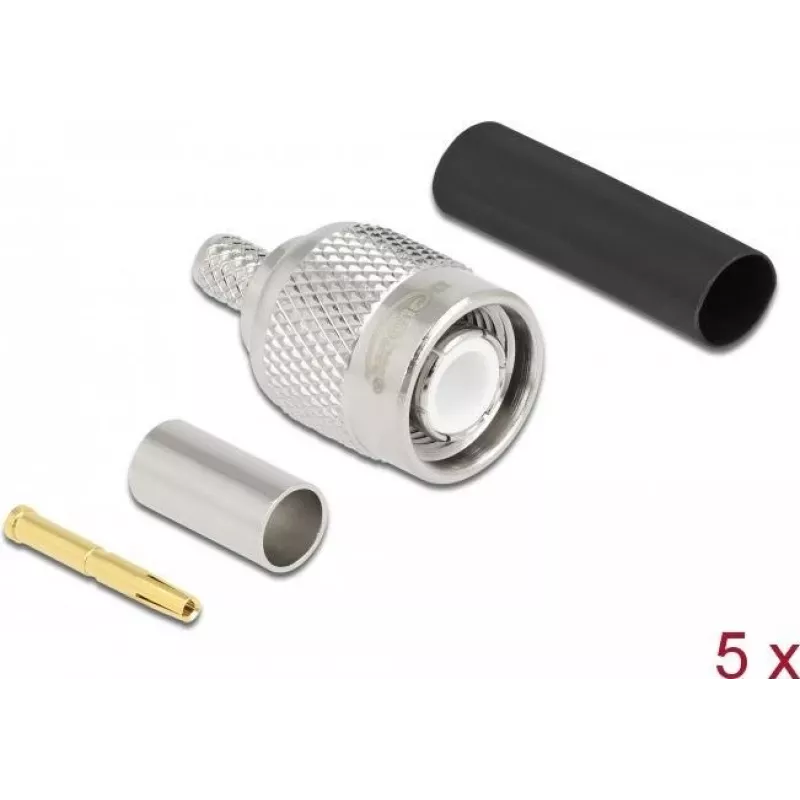

The DeLOCK TNC plug for crimping LMR 200 cables is designed for reliable connections in radio frequency (RF) setups. It provides a 75 Ω impedance and nickel-plated contacts to ensure consistent signal transmission. The connector is compact (12 mm width, 30 mm depth, 12 mm height) and supplied in packs of five, each pack in a polybag. A shrink tube is included for secure insulation and strain relief.

Advantages

Nickel-plated contacts resist corrosion and promote stable electrical contact. The 75 Ω impedance matches common RF equipment and cable characteristics. Compact dimensions allow easy handling and installation in confined spaces. Supplied as a 5-piece pack for multiple installations or spare parts.

Suitable for

Key specifications

How to use

Strip the LMR 200 cable according to the connector manufacturer's crimping instructions, insert the center conductor and outer conductor into the plug, and crimp the ferrule with the appropriate crimping tool. Fit the supplied shrink tube over the joint and apply heat to secure insulation and provide strain relief. Verify the mechanical fit and perform an electrical check to ensure correct impedance and continuity.

Recommendations

Use the correct crimping die for LMR 200 and inspect each connector after crimping. Avoid excessive heat when shrinking the tube to prevent damage to the connector plating and cable dielectric.
