Torque extender EK Water Blocks

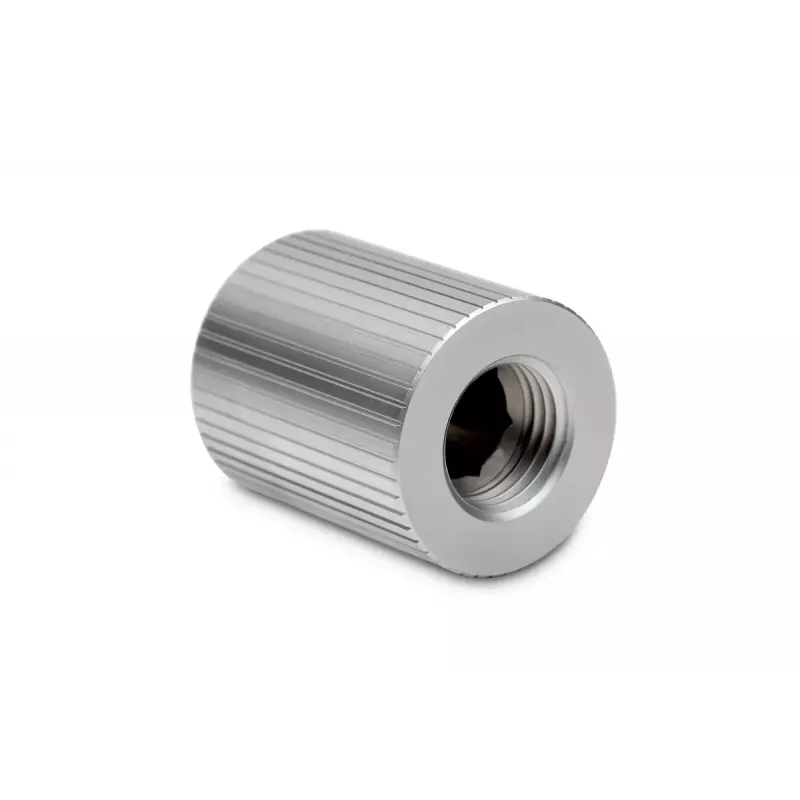

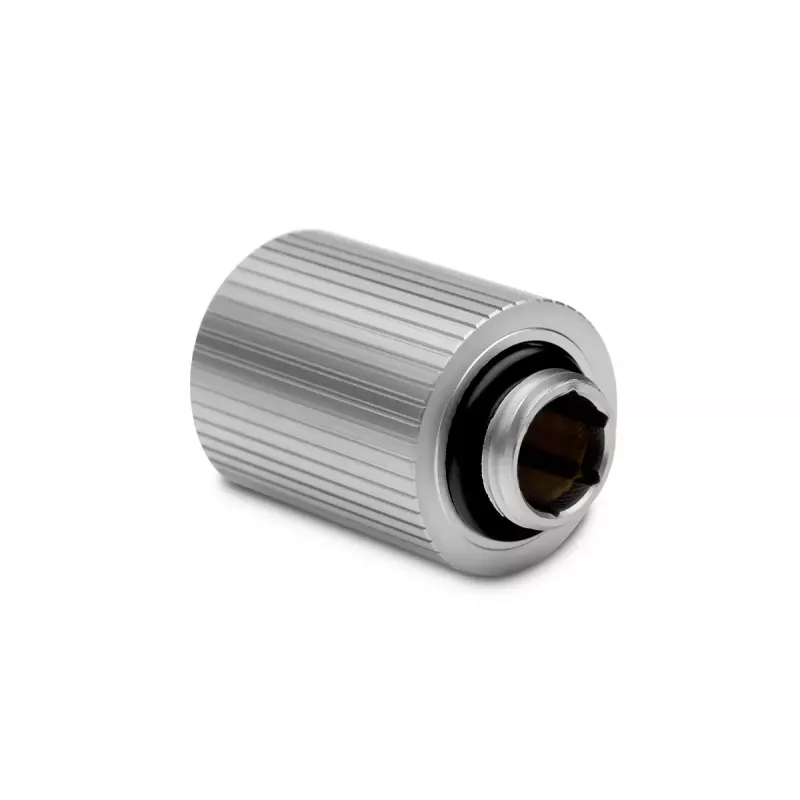

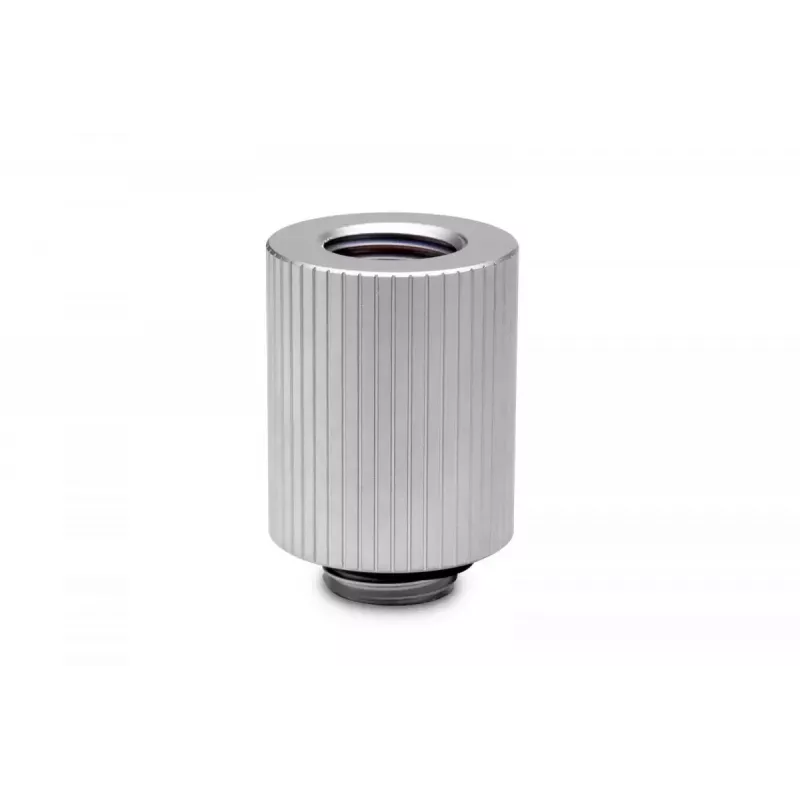

EK-Quantum Torque Extender Static MF 28 is a premium male+female threaded extender designed to extend a G1/4" port on a block, radiator or any other liquid-cooling component. It creates additional clearance to simplify connecting fittings and tubing, reducing tight bends and hard-to-reach connections. The extender is static (non-revolvable) and intended for reliable, fixed extensions in water-cooling loops.

Advantages

The extender is CNC machined from brass and finished with a satin silver/titanium surface. It uses quality EPDM O-rings for sealing and the internal bore is left unpainted to minimize potential contaminants in the coolant loop. EK-Quantum Torque products feature robust industrial design and precise manufacturing, and the Torque family supports an interchangeable color ring for visual customization.

Suitable for

• Extending G1/4" ports on water-cooling blocks and radiators
• Creating clearance to avoid tight tubing bends or inaccessible fittings
• Fixed, non-rotating connections in custom liquid-cooling loops

Key specifications

• Type: Static male+female threaded extender (MF)
• Thread: G1/4"
• Height: 28 mm
• Material: CNC machined brass
• Finish: Satin silver / satin titanium appearance; internal bore unpainted
• Sealing: EPDM O-rings
• MPN / EAN: 3831109828434

How to use

Thread the male end of the extender into the G1/4" port of the component until hand-tight, ensuring the EPDM O-ring seats correctly to form a seal. Then attach the desired fitting or tube to the female end and tighten as required. As this extender is static (non-revolvable), align it before final tightening to achieve the required orientation. Do not over-tighten; use appropriate tools sparingly and follow component manufacturer torque guidance when available.

Recommendations

Use the EK-Quantum Torque Extender Static MF 28 where a fixed extension is needed to improve access or reduce tubing stress; avoid using it where rotation is required. Periodically inspect O-rings for wear and replace them if signs of degradation appear. Ensure compatibility with G1/4" threaded fittings and follow standard liquid-cooling assembly practices.
