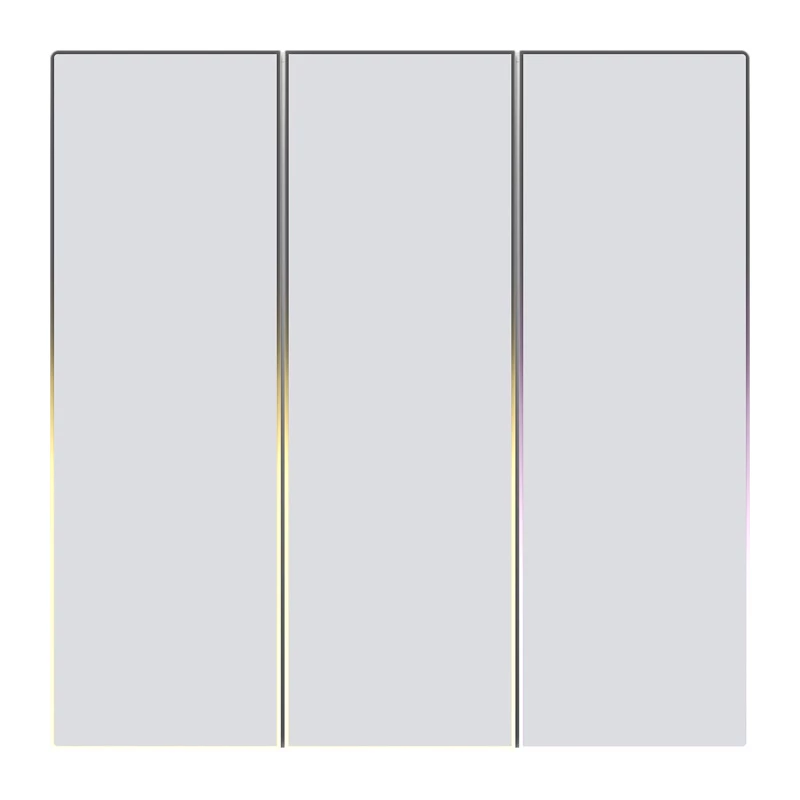

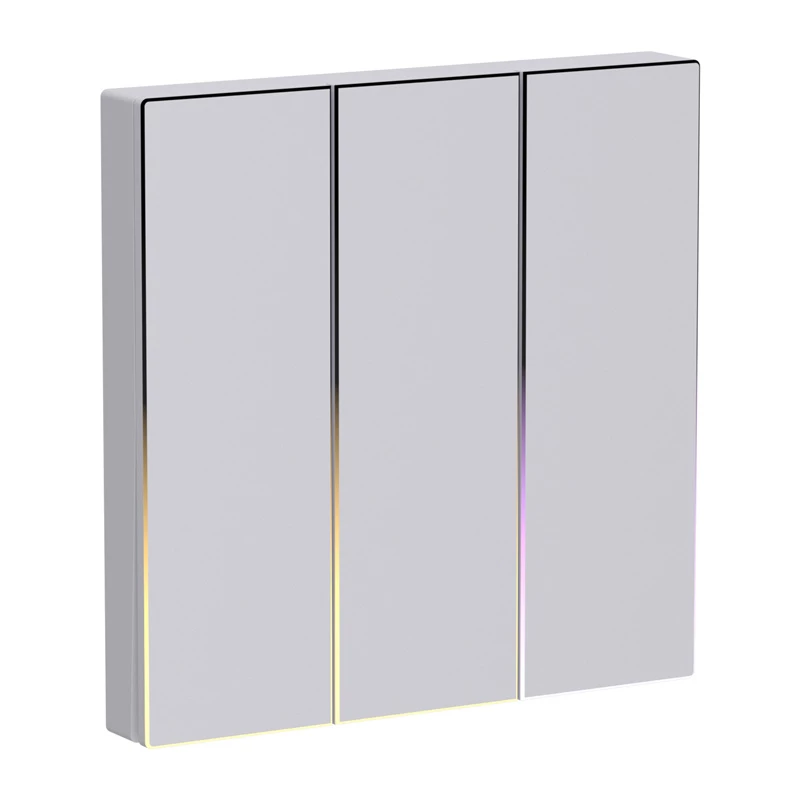

Touchlichtschakelaar Avatto TS60-EU-W3 ZigBee Smart Control — touchpaneel, ZigBee-connectiviteit

Avatto TS60-EU-W3 Triple TUYA touch ZigBee light switch is a smart three-gang wall switch designed for convenient control of home lighting. Supporting Zigbee 3.0, the switch connects to a Zigbee gateway and integrates with the AVATTO app to allow remote control, scheduling and automation from a smartphone while maintaining local touch control.

Advantages

The TS60 offers a flame-retardant PC plastic housing for enhanced safety and durability, a rated current of 10 A and a maximum load of 800 W per circuit suitable for typical household lighting circuits. It supports quick pairing with the AVATTO app and integrates into smart home systems through Zigbee 3.0 for reliable wireless control and energy-saving automation.

Key specifications

• Model: Avatto TS60-EU-W3 Triple TUYA
• Protocol: Zigbee 3.0 (requires Zigbee gateway)
• Number of gangs: 3 (three circuits)
• Rated current: 10 A
• Maximum load: 800 W per circuit
• Material: flame-retardant PC plastic
• Connectivity: Zigbee; requires 2.4 GHz Wi‑Fi for app communication via gateway

How to use

Turn off power before wiring and connect wires according to the diagram: L — phase, N — neutral, L1/L2/L3 — loads for each circuit. Restore power, press and hold the device button for 5 seconds until the backlight flashes to enter pairing mode, then add the switch in the AVATTO app and follow on-screen instructions to complete setup. After pairing, control each circuit by touch on the switch, from the AVATTO app, or via configured automations through the Zigbee gateway.

Recommendations

For safe operation, install the switch in accordance with local electrical standards and, if unsure, use a qualified electrician. Ensure the Zigbee gateway is active and the AVATTO app is connected to the 2.4 GHz network for reliable remote control and automation.
