TOX Thermo Proff Mini afstandmontagesysteem voor WDVS, 2 stuks 084600381

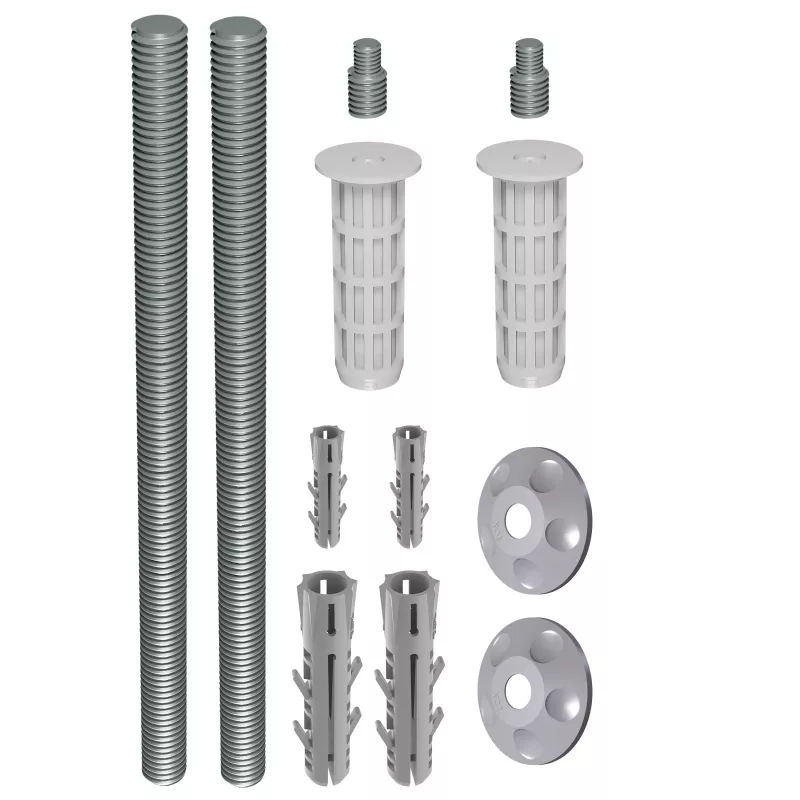

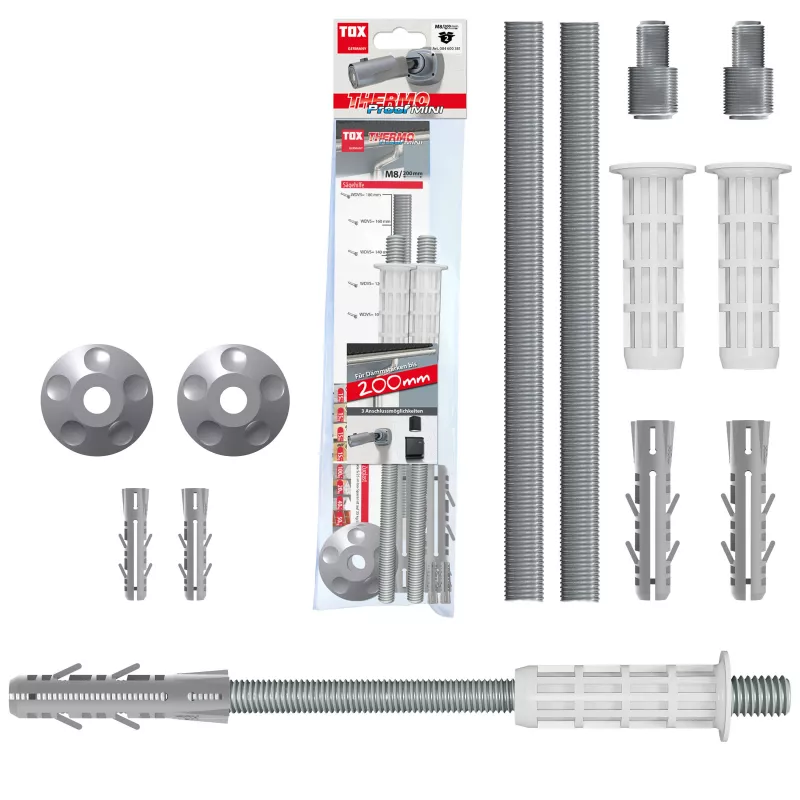

Installers working on external thermal insulation composite systems (ETICS) often need to mount light fixtures, signs, or small brackets without creating thermal bridges. The TOX Thermo Proff Mini stand-off system solves this by providing a thermally separated anchor point that keeps the insulation layer intact while supporting loads up to 15 kg per attachment point. This pack includes two complete mounting sets, each consisting of a high-quality polyamide anchor and a matching stand-off element.

Key specifications

• Mounting system type: Stand-off
• Primary application: External Thermal Insulation Composite Systems (ETICS/WDVS)
• Maximum load capacity: 15 kg per attachment point (depending on substrate)
• Quantity included: 2 pieces
• Anchor material: High-quality Polyamide (Nylon)
• Anchor overall length: 80 mm
• Anchor collar diameter: 28 mm
• Required drill hole diameter: 6 mm
• Maximum usable screw length within anchor: 30 mm
• Compatible screw types: Wood screws, chipboard screws, metric screws
• Compatible insulation materials: Polystyrene, mineral wool, rigid foam boards
• Thermal bridge reduction: Yes

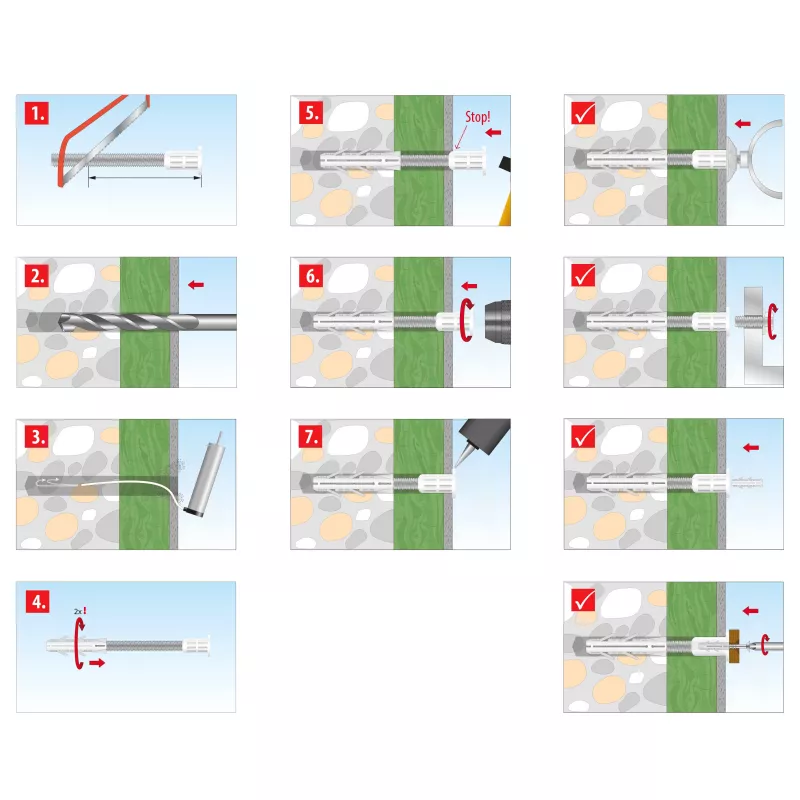

• Installation method: Drill and screw-in
• Tool requirement: Standard drill, screwdriver (no special tools)
• Temperature resistance range: -40°C to +80°C
• UV resistance: High
• Corrosion resistance: Excellent (plastic construction)
• Recommended load class: Light to medium-heavy
• Manufacturer series: Thermo Proff
• Product sub-type: Mini

Why choose it

The polyamide construction resists corrosion and UV degradation, ensuring long-term performance in outdoor conditions. The stand-off design minimises thermal bridging, helping to maintain the insulation's effectiveness. With a simple drill-and-screw installation, it requires no special tools, making it accessible for both professionals and experienced DIYers.

Ideal use cases

• Mounting light fixtures, house numbers, or small signs on insulated facades
• Attaching brackets for satellite dishes or antennas without compromising insulation
• Securing cables or conduits to ETICS walls
• Installing motion sensors or security cameras on exterior insulated walls

Good to know

The anchor is designed for substrates common in ETICS, including polystyrene, mineral wool, and rigid foam boards. Always verify the substrate's load-bearing capacity before installation. The maximum load of 15 kg per point assumes a suitable base material; for heavier loads, consider multiple attachment points or a larger system.
