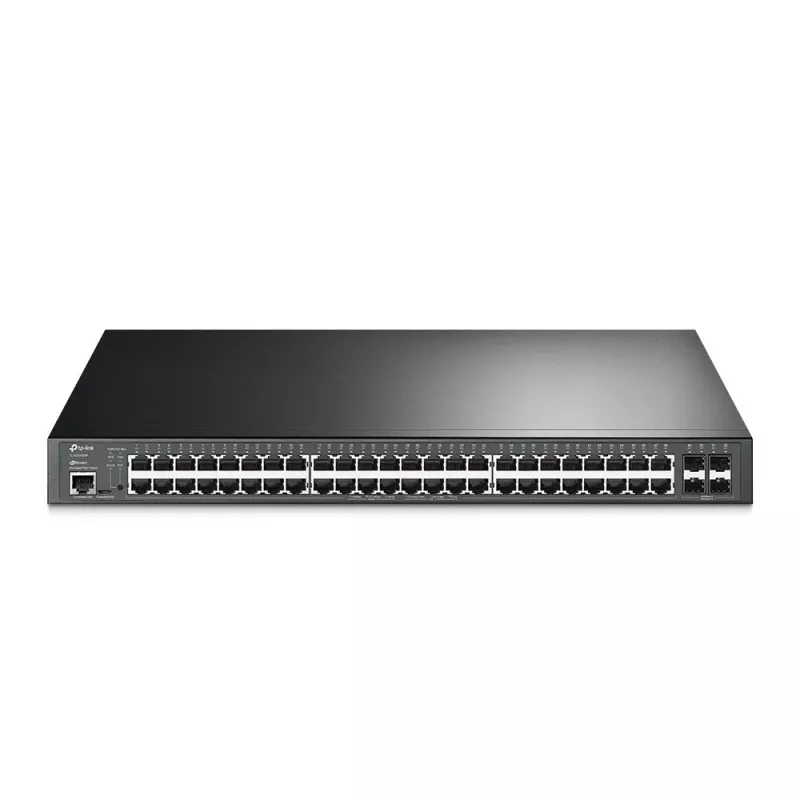

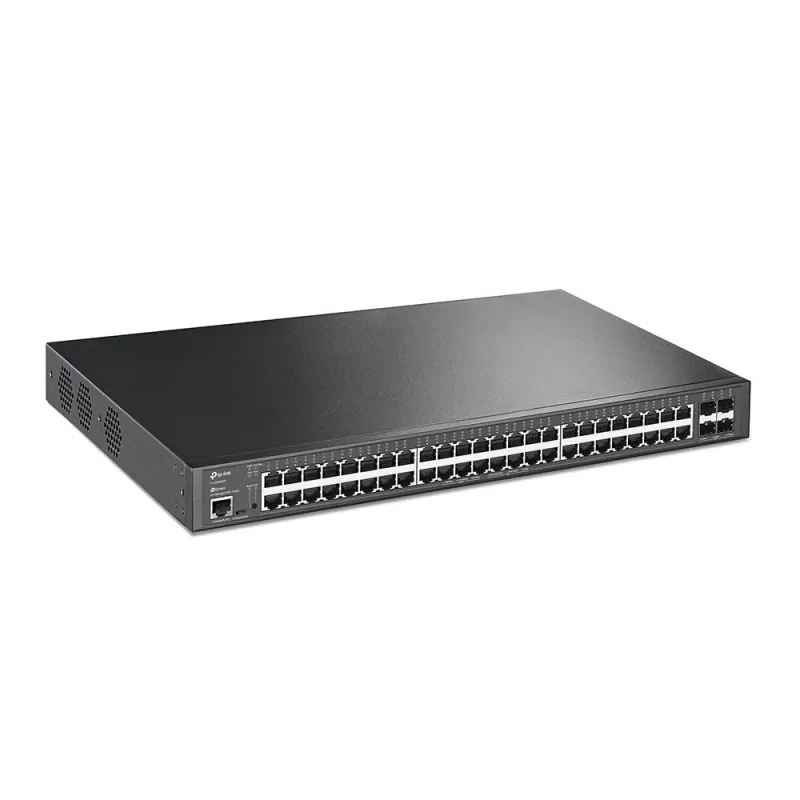

TP-Link JetStream TL-SG3452XP netwerkswitch Managed L2+ Gigabit Ethernet (10/100/1000) PoE-ondersteuning 1U zwart

High-density PoE+ switching with 10G uplinks for demanding enterprise and SMB networks. The TP-Link JetStream TL-SG3452XP is a managed L2+ switch featuring 48 Gigabit PoE+ ports and 4 10G SFP+ uplinks, delivering a total PoE budget of 500W to power access points, IP cameras, and VoIP phones. With a switching capacity of 176 Gbps and packet forwarding rate of 130.9 Mpps, it ensures smooth data flow even under heavy load. Advanced L2+ features such as static routing, robust QoS, and comprehensive security make it ideal for converged networks.

Advantages

This switch offers exceptional PoE capability with a 500W total budget, allowing you to connect up to 48 PoE devices simultaneously. The 10G SFP+ uplinks provide high-speed connectivity to core networks or servers, eliminating bottlenecks. Its L2+ management includes static routing, which reduces the need for an external router in small networks. Omada SDN compatibility enables centralized cloud management for multi-site networks.

Suitable for

• Enterprise branch offices needing high-density PoE for IP phones and cameras
• Educational institutions deploying wireless access points across campus
• Surveillance systems requiring reliable power and bandwidth for many IP cameras
• Businesses upgrading to 10G backbone connectivity
• Managed service providers offering network-as-a-service

Key specifications

• 48x Gigabit RJ45 ports with PoE+ (802.3af/at)
• 4x 10G SFP+ uplink ports
• 500W total PoE power budget
• 176 Gbps switching capacity
• 130.9 Mpps packet forwarding rate
• 16K MAC address table
• 9 KB jumbo frame support
• 4K VLANs, GVRP, Voice VLAN, MAC VLAN, Protocol VLAN, Private VLAN
• 8 priority queues, DSCP, CoS QoS
• ACL, 802.1X, IP-MAC-Port Binding, DoS Defend, DHCP Snooping, ARP Inspection
• Web GUI, CLI, SNMP, Omada SDN Controller management
• 1U rackmount form factor
• Internal power supply, 100-240V AC, 50/60 Hz

Recommendations

Ideal for organizations needing a high-power, high-performance PoE switch with 10G uplinks and advanced L2+ management, especially when integrated with the Omada SDN platform for centralized control.
