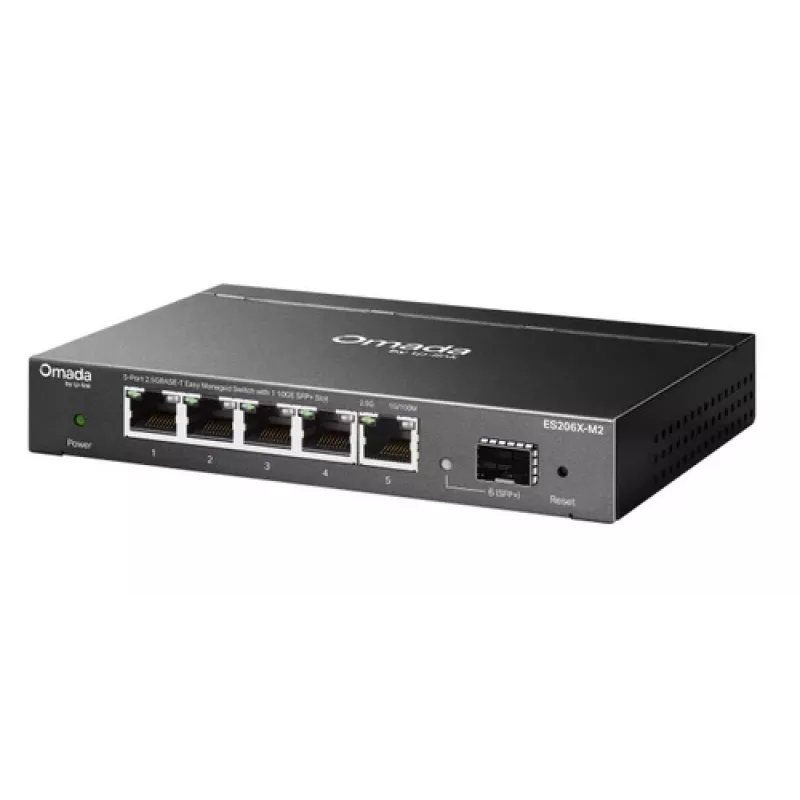

TP-Link Omada ES206X-M2 Easy Smart Switch met 5x 2.5G-poorten en 1x 10G SFP+

For small businesses and advanced home users who need multi-gigabit speed without the complexity of a fully managed switch, the TP-Link Omada ES206X-M2 offers a compelling middle ground. Unlike typical gigabit switches that bottleneck at 1 Gbps, this easy smart switch provides five 2.5GBASE-T ports and a 10G SFP+ uplink, enabling high-speed connections to Wi-Fi 6 access points, NAS devices, and workstations. Its fanless design ensures silent operation, making it suitable for noise-sensitive environments.

Highlights

• 5× 2.5G RJ45 ports for multi-gigabit wired connections
• 1× 10G SFP+ slot for high-bandwidth uplink or server connection
• Omada SDN cloud management for centralized control via web or app
• Fanless metal housing for silent, reliable operation
• Advanced L2 features: VLAN, QoS, link aggregation, IGMP snooping, and security

In daily use

The ES206X-M2 integrates seamlessly into existing networks. Its 50 Gbps switching capacity and 37.2 Mpps forwarding rate handle demanding traffic with ease. The switch supports 802.1Q VLANs (up to 4K), 8 priority queues for QoS, and LACP link aggregation for increased bandwidth and redundancy. Security features include IP-MAC-port binding, 802.1X authentication, and DoS defense. Management is flexible: use the intuitive web GUI, CLI, or adopt it into an Omada SDN network for cloud-based monitoring and configuration.

Full specifications

• Ports: 5× 2.5GBASE-T RJ45, 1× 10G SFP+
• Switching capacity: 50 Gbps
• Packet forwarding rate: 37.2 Mpps
• MAC address table: 16K entries
• Jumbo frame: 10 KB
• VLAN: 802.1Q tag-based, up to 4K VLANs
• QoS: 802.1p CoS/DSCP, 8 priority queues
• Link aggregation: LACP, up to 3 groups, 8 ports per group
• IGMP snooping: V1/V2/V3
• Security: IP-MAC-port binding, 802.1X, DoS defense, port security
• Management: Omada SDN cloud, web GUI, CLI, SNMP
• Power: External 12V/1.5A adapter
• Mounting: Desktop
• Certifications: CE, FCC, RoHS

Final note

The ES206X-M2 is an ideal upgrade for networks transitioning to multi-gigabit speeds, offering a balance of performance, management features, and silent operation.
