TP-Link Omada IES206G netwerkswitch managed Gigabit Ethernet (10/100/1000) zwart

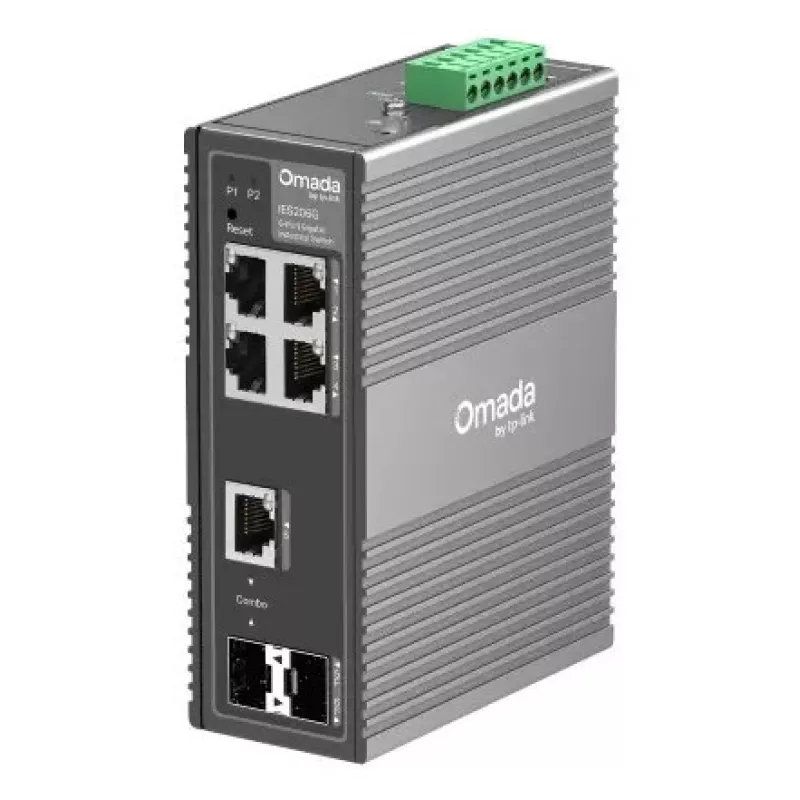

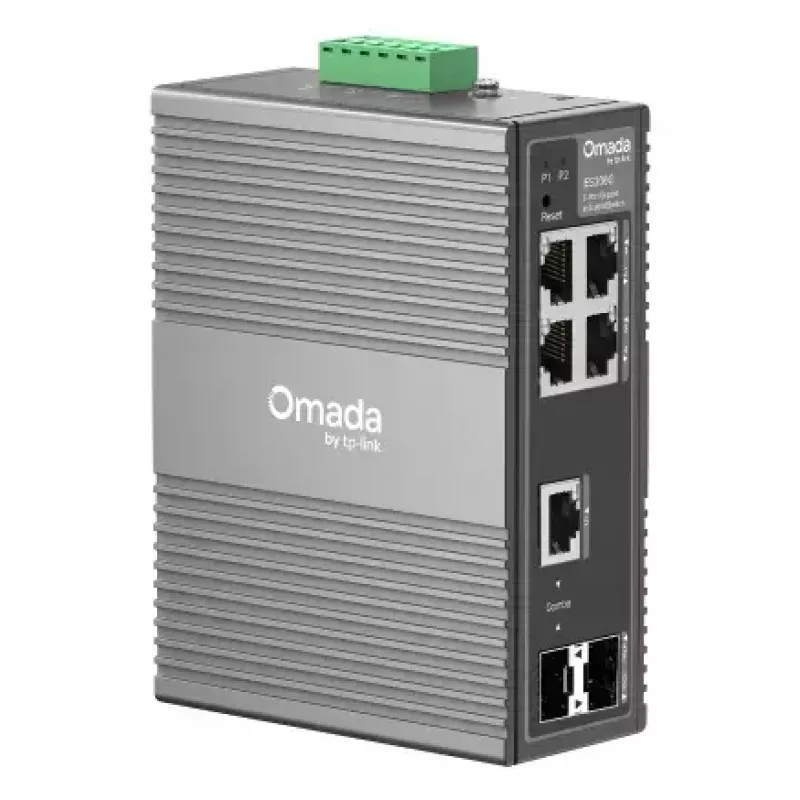

The TP-Link Omada IES206G is a managed Gigabit Ethernet switch with four RJ45 Gigabit ports plus one RJ45/SFP combo and one dedicated SFP port. It provides a switching capacity of 12 Gbit/s and an 8,000-entry MAC address table. Built for industrial and commercial deployments, the switch supports wide DC input (9–60 V), wall- or DIN-rail mounting and a robust IP40 aluminum enclosure for reliable operation in varied environments.

Advantages

The IES206G offers industrial-grade reliability with an extended operating temperature range (-40 to 75 °C), 6 kV lightning protection and 1+1 redundant power input. It is a managed switch with web-based management and Omada cloud/app control, and includes common L2 features such as VLAN, QoS and STP/RSTP. Compact, durable construction and multiple uplink options (combo RJ45/SFP and SFP) make it suitable for resilient network edge deployments.

Suitable for

• Small to medium business network edges
• Industrial sites and outdoor cabinets (within IP40-rated indoor enclosures)
• Surveillance and access-control networks requiring fiber uplinks
• Wall- or DIN-rail-mounted installations with limited space

Key specifications

• Switch type: Managed

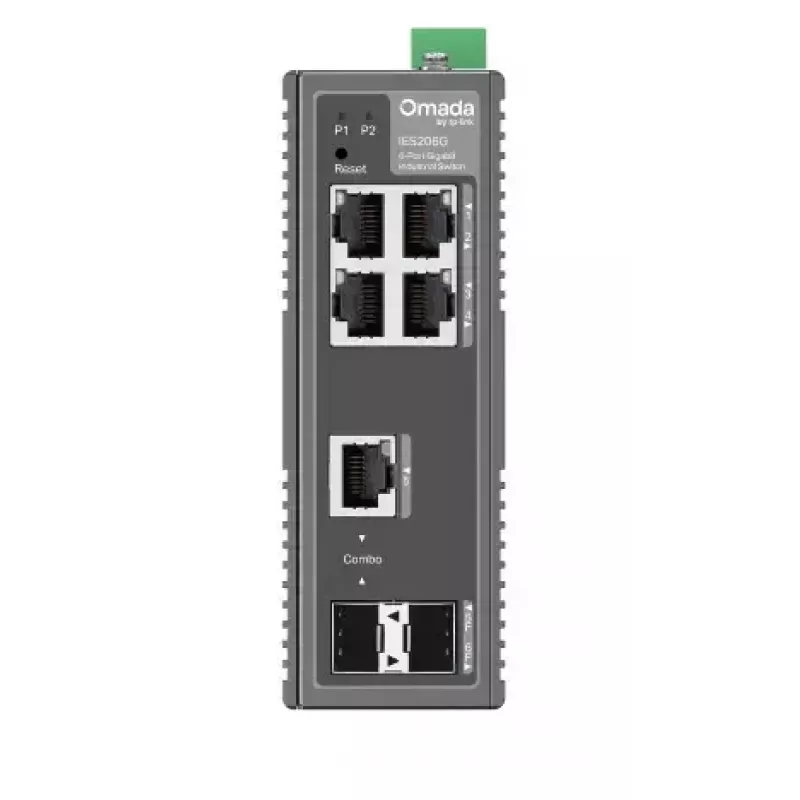

• Ports: 4 × RJ45 Gigabit (10/100/1000), 1 × RJ45/SFP combo, 1 × SFP
• Switching capacity: 12 Gbit/s
• MAC address table: 8,000 entries
• Networking standards: IEEE 802.3ab, 802.1D, 802.1Q, 802.1p, 802.1w, 802.3u, 802.3x

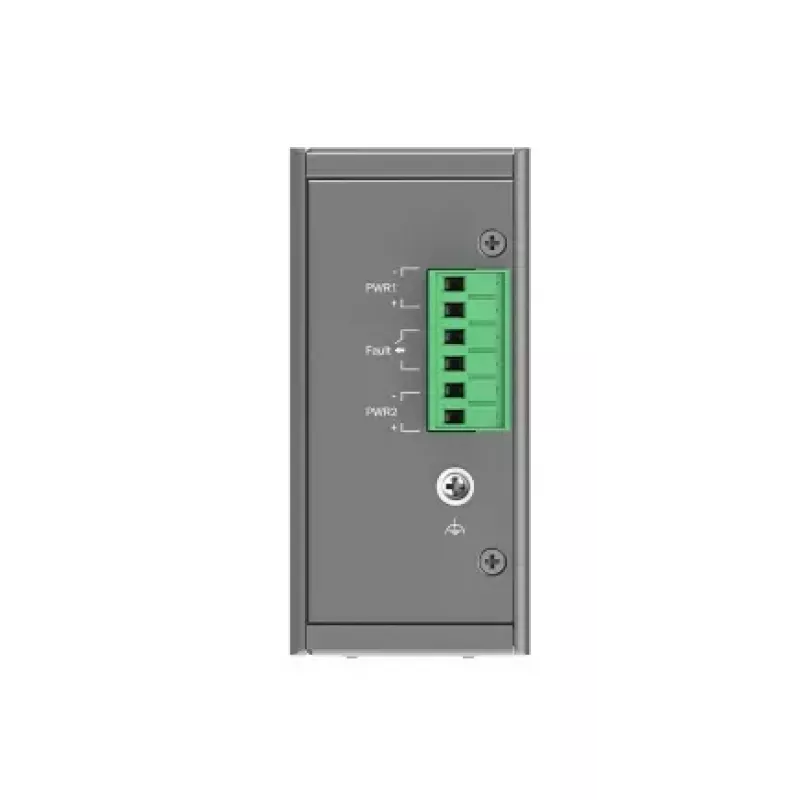

• Operating voltage: DC 9–60 V (DC power supply included)
• Operating temperature: -40 to 75 °C
• Protection: 6 kV lightning protection
• Housing: IP40 aluminum casing; wall-mount and DIN-rail design
• Color: Black

How to use

Mount the IES206G on a wall or DIN rail and connect a compatible DC power source (9–60 V) to the power input; a DC power supply is included. Connect devices to the RJ45 Gigabit ports and use the combo RJ45/SFP or SFP port for fiber or additional copper uplinks as required. Access the web-based management interface or the Omada app/cloud platform to configure VLANs, QoS, port settings and STP/RSTP parameters. Save and apply settings through the management UI to activate configuration changes.

Recommendations

For installations in electrically noisy or lightning-prone areas, use the redundant power input and proper grounding. When deploying fiber uplinks, ensure SFP modules are compatible with the switch's supported fiber type and transceiver specifications.
