TP-Link VIGI 4-kanaals PoE+ netwerk-videorecorder

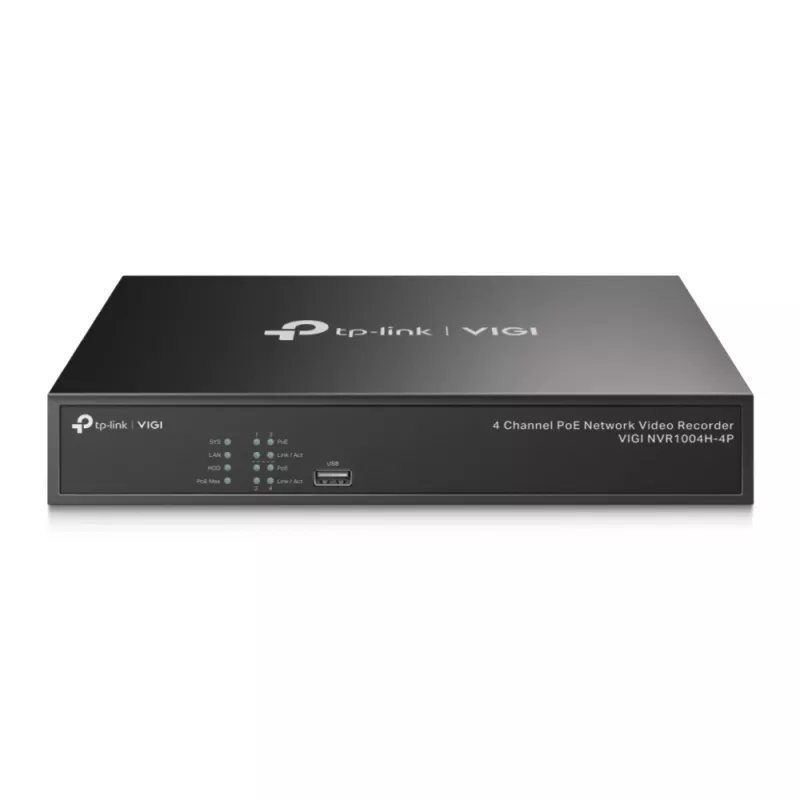

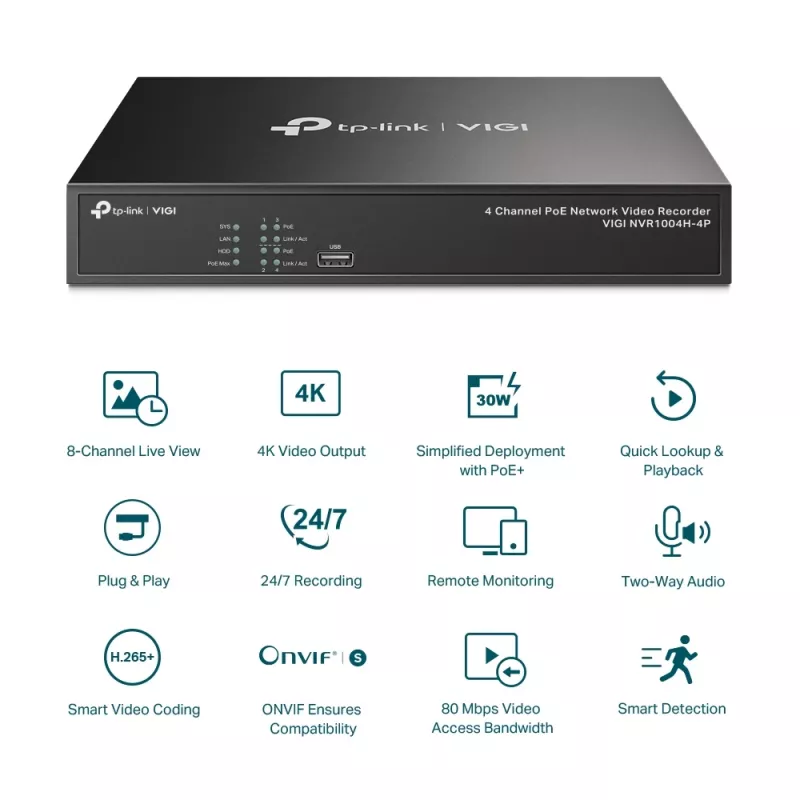

The TP-Link VIGI NVR1004H-4P is a 4-channel PoE+ network video recorder designed for small business and retail surveillance. It supports up to 4K (3840 x 2160) decoding capacity, 4-channel simultaneous display and playback, and a maximum internal HDD capacity of 10 TB via SATA. The recorder includes four dedicated PoE+ ports (10/100 Mbps) with a 53 W total budget to power compatible IP cameras over a single Ethernet cable, and offers remote monitoring through the VIGI app, web UI, or VIGI Security Manager.

Advantages

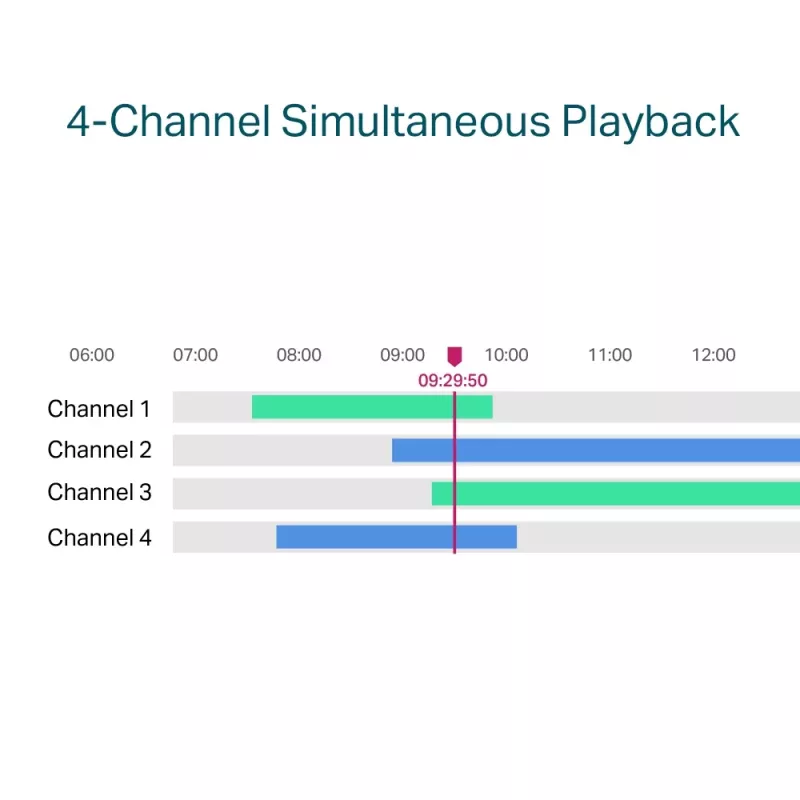

The NVR provides high-resolution recording and decoding up to 8 MP per channel with 4K HDMI output, simplified camera deployment via four PoE+ ports that supply power and data on one cable, and ONVIF compatibility for adding cameras from VIGI and other brands. It supports 24/7 continuous recording, two-way audio for intercom functionality, and an 80 Mbps video access bandwidth to handle multiple high-definition streams. Hardware features include two USB 2.0 ports, one Ethernet LAN port, and SATA HDD support in a compact black housing with low power consumption.

Suitable for

• Small shops and groceries
• Warehouses and storage areas
• Restaurants and cafes
• Small financial or office premises

Key specifications

• Channels: 4-channel PoE+ NVR

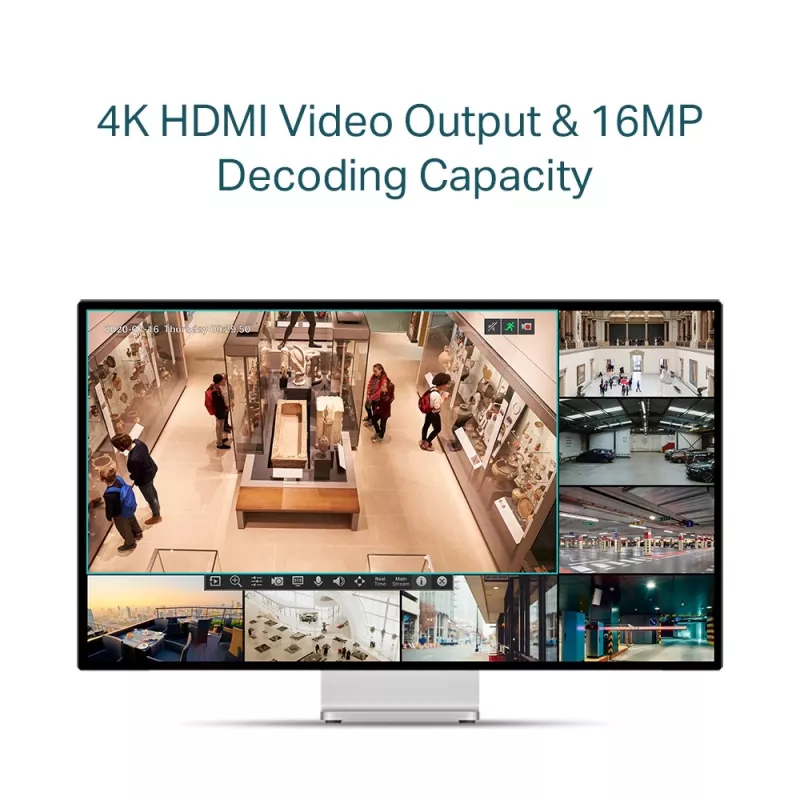

• Video decoding: up to 16 MP total decoding capacity; supports up to 4K (3840 x 2160) output

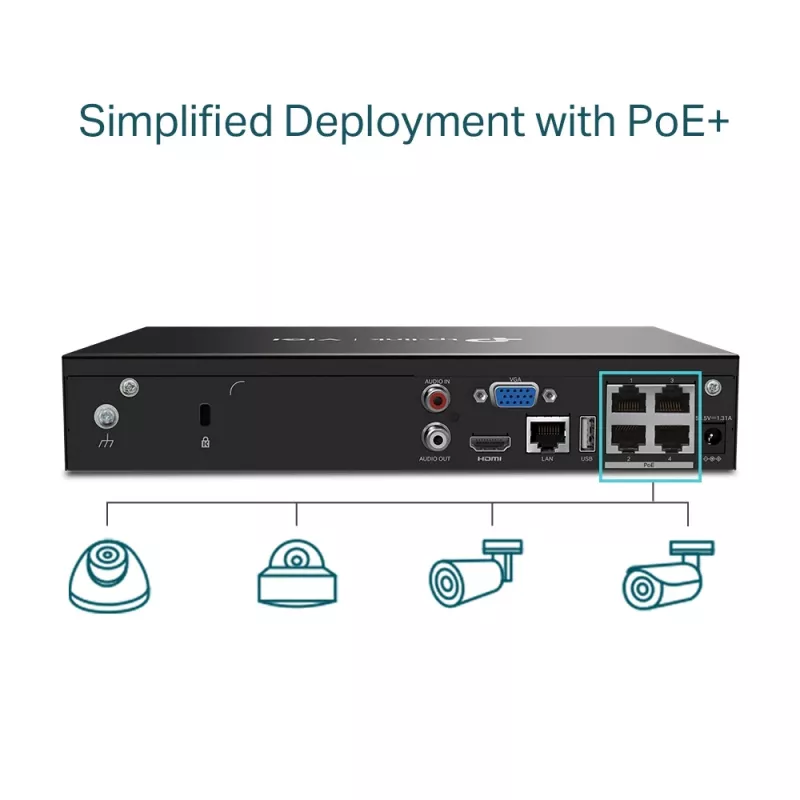

• PoE: 4 × 10/100 Mbps PoE+ ports, up to 30 W per port, 53 W total budget
• Video access bandwidth: 80 Mbps
• Recording modes: supports 720p, 1080p, 2160p resolutions
• Storage: 1 × SATA HDD, up to 10 TB

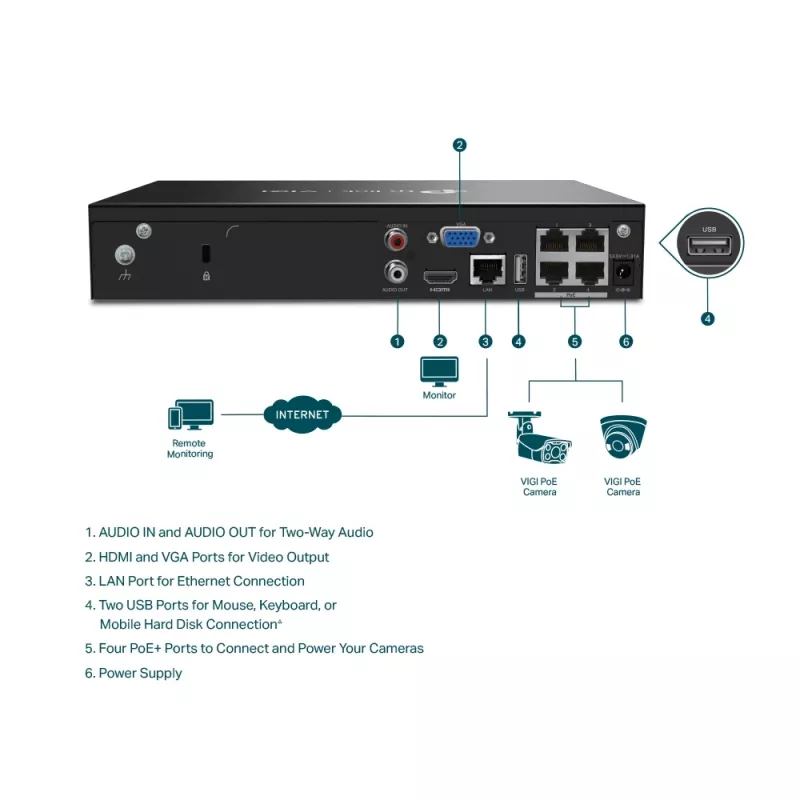

• Ports: 2 × USB 2.0, 1 × Ethernet LAN (RJ-45)

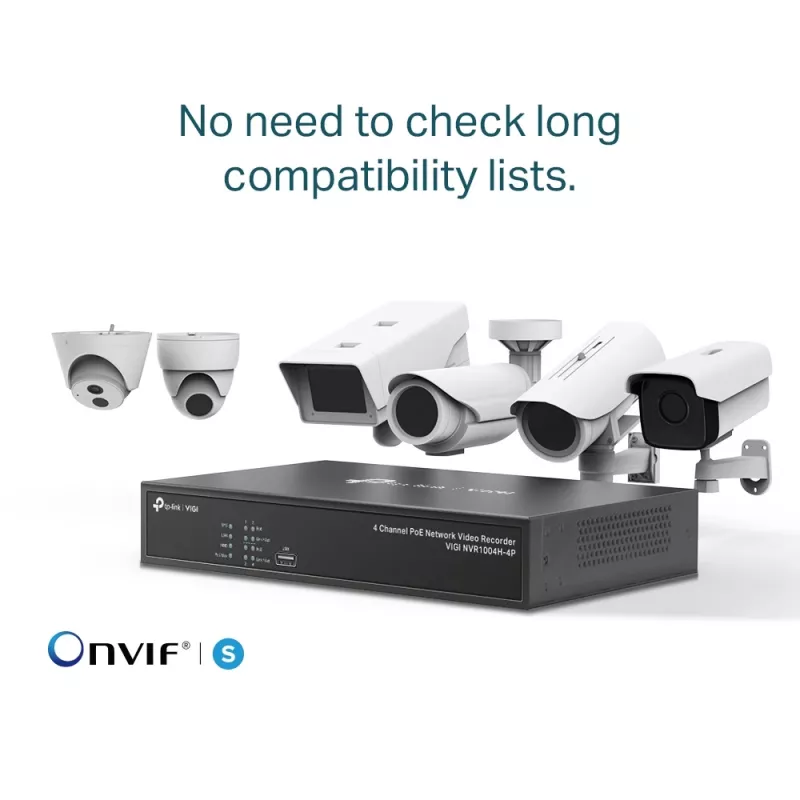

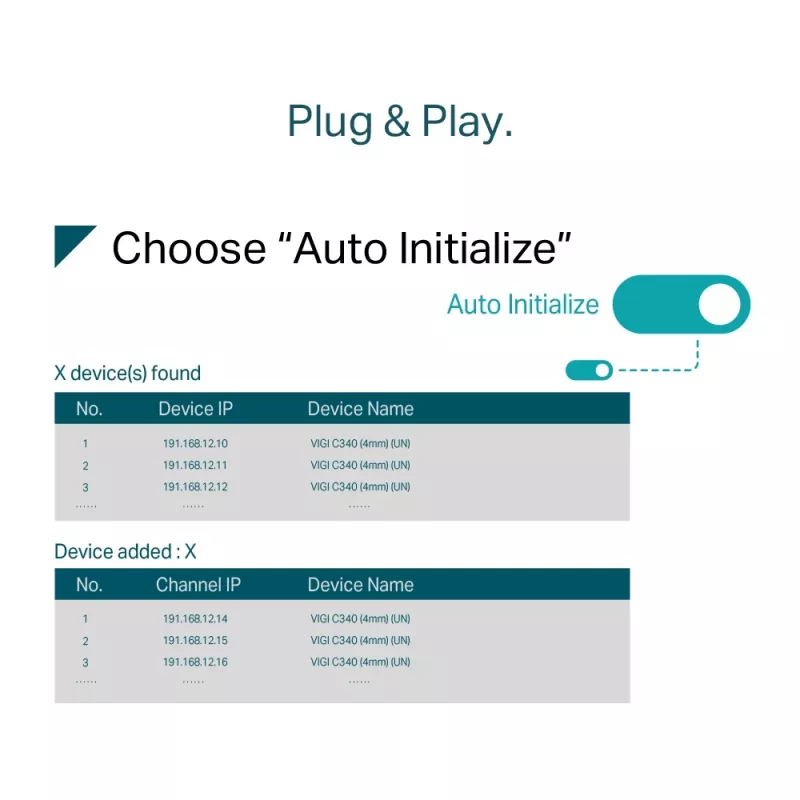

• Compatibility: ONVIF support for third-party IPCs
• Color: Black
• Power consumption (typical): 4.25 W (device only, excluding powered cameras)

How to use

Install the NVR in a secure, ventilated location and connect a SATA HDD for local storage. Connect up to four compatible PoE or PoE+ IP cameras to the dedicated PoE ports using Ethernet cables to provide both power and data. Attach the recorder to a monitor via the HDMI output for local viewing and use the VIGI app, web UI or VIGI Security Manager for remote monitoring, playback, and configuration. Use the device interface to configure recording schedules, motion detection, and two-way audio settings as needed.

Recommendations

For reliable operation, use quality Cat5e or better Ethernet cables, limit each camera to the supported resolution to avoid exceeding the 80 Mbps access bandwidth, and install the HDD according to the manufacturer’s specifications (maximum 10 TB). Ensure firmware is up to date and enable ONVIF when adding third-party cameras for compatibility.
