TP-Link VIGI NVR2016H-16P netwerk-videorecorder zwart

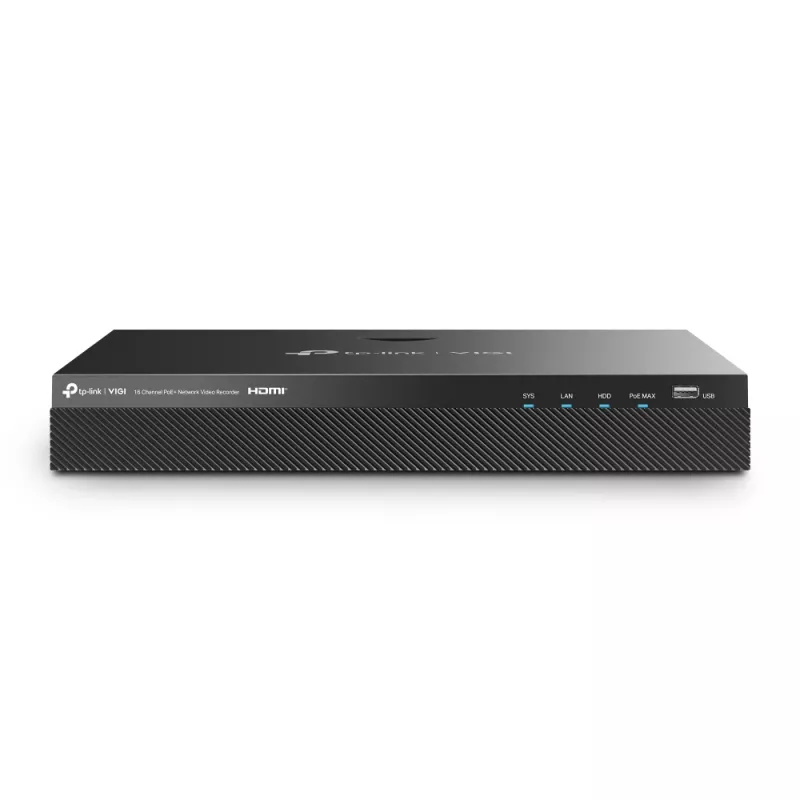

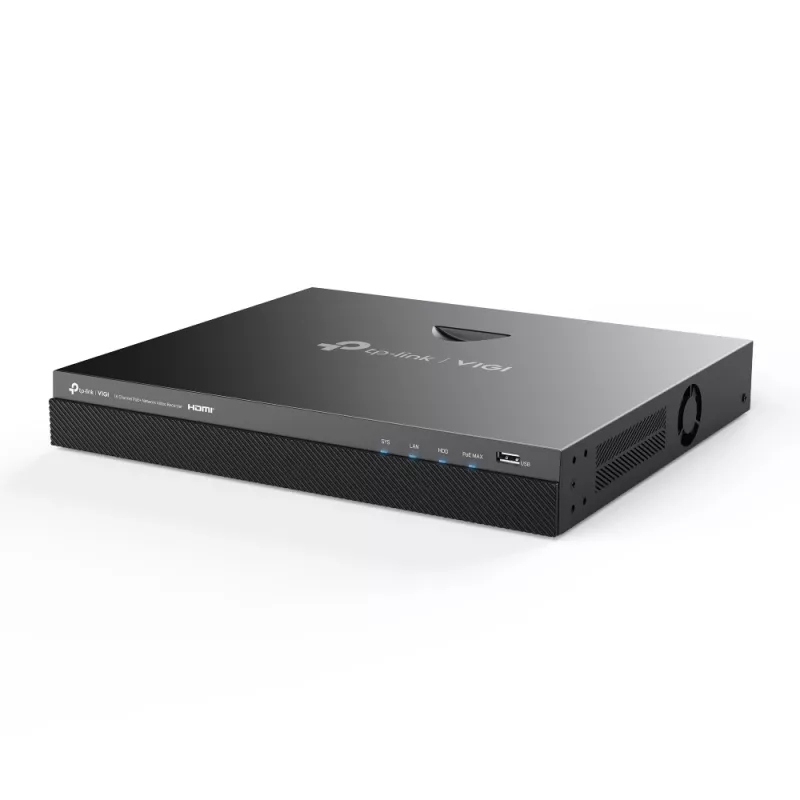

Security Never Shuts Down. The VIGI NVR delivers 4K HDMI output and supports up to 16MP decoding capacity with sharp image definition up to 8MP (4K), allowing capture of fine details while supporting 8-channel 2MP decoding for simultaneous live view and playback. Sixteen dedicated PoE+ ports simplify IP camera deployment by providing data and power over a single Ethernet cable, making installation flexible for small-business scenarios such as groceries, warehouses, restaurants, and financial institutions. The NVR supports continuous 24/7 local recording with up to 20 TB storage and enables remote management and live viewing via the VIGI app or client.

Advantages

The device provides high-resolution video output (4K HDMI) and multi-channel decoding for concurrent live monitoring and playback. PoE+ ports reduce cabling complexity by supplying power and data on one cable, easing installation. Built-in ONVIF compatibility allows integration of VIGI and third-party IP cameras. Compressed video transmission saves bandwidth and storage without sacrificing image clarity. Fast multi-channel playback, two-way audio, customizable recording schedules, motion zones and patrol routes, and four management interfaces (web UI, NVR UI, VIGI app, VIGI Security Manager) improve operational efficiency and flexibility.

Key specifications

• Video output: 4K HDMI
• Maximum image definition: up to 8MP (4K)
• Decoding capacity: 16 MP total; 8 channels @ 2MP simultaneous decoding
• PoE: 16 dedicated PoE+ ports (data + power over single Ethernet cable)
• Playback: up to 16-channel simultaneous playback
• Storage: supports up to 20 TB local HDD
• Recording: 24/7 continuous recording; customizable schedule and record types
• Compatibility: ONVIF for third‑party IPC integration
• Audio: two-way audio (voice intercom)
• Remote access: VIGI app and client for live view and management

How to use

Install IP cameras and connect them to the NVR using Ethernet cables plugged into the dedicated PoE+ ports to provide both power and data. Use the NVR HDMI output to connect to a monitor for live view and configure recording parameters. Click "Auto Initialize" during setup to automatically set basic IPC and hard disk parameters and to create initial recording plans. Configure motion zones, patrol routes, and record schedules as needed. Use the VIGI app, web UI, NVR UI, or VIGI Security Manager to monitor live feeds remotely, receive alerts, and perform playback searches.

Recommendations

For reliable 24/7 surveillance, use appropriately rated Ethernet cables for PoE+, choose hard drives certified for continuous video recording, and verify ONVIF compatibility when adding third‑party cameras. Regularly back up critical footage and adjust retention settings to match available storage capacity.
