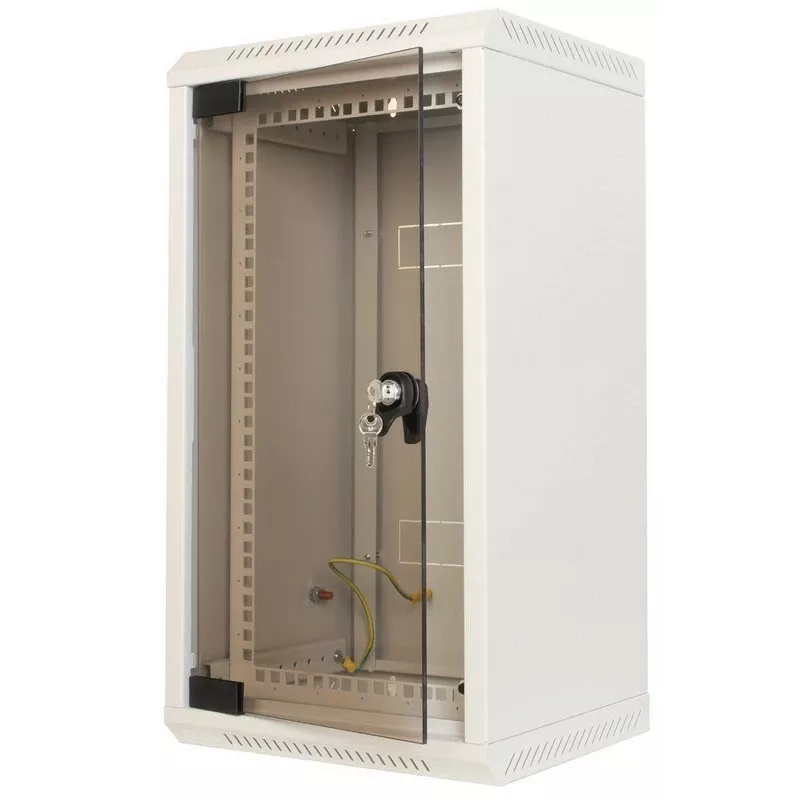

Triton DELTA-B 6U/300 Minirack wandmontage-rack

The cabinet is often used for the realization of small projects such as home networks or small company networks (SOHO). Cabinet has a robust welded construction. High quality processing and the up-to-date technology ensure a perfect look of the cabinet. The cabinet door is glass standardly but it can be steel or perforated as required. The hinge system enables a comfortable access THE USE OF THE CABINET Ideal solution for installation of 10" components. The cabinet is often used in realizations of small projects such as home networks or small company networks (SOHO). It is a popular accessory of standard 19" cabinets. ADJUSTABLE VERTICAL RAILS 10" rails are adjustable attached to the cabinet construction in predefined positions BREAKOUT-TYPE BLANKING PANELS Cable openings covered with breakout-type blanking panels are located in the top, bottom and rear part of the cabinet. DESCRIPTION, PURPOSE OF USE 10" wall-mounted cabinet with IP20 protection Cabinet is to be hanged right on the wall Cabinet includes two adjustable vertical rails. Cabinet construction: Compact welded cabinet / safety hardened glass door, thickness 4 mm. On demand may be metal or perforated Max. permissible load of the door is 10 kg Min. thickness of the surface finish is 65 micrometer Cabinets are intended for installation of data and telecommunication devices and their distribution systems The frame of the cabinet and all the removable parts are connected with earthing cables that have to be properly fixed and inserted into connectors during all the time when using the cabinet There is one M8 screw placed on the bottom part of the cabinet as an earthing main point Cable openings covered with breakout-type blanking panels are placed in the top and the bottom part of the cabinet rear side, others are in the top and the bottom side of cabinet OPERATION CONDITIONS Operation environment: Office The cabinet is not intended for outdoor installations and for installations in environment that can influence negatively the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings) Must be protected against: Mechanical damage Improper manipulation A different usage than the cabinet is intended for Improper manipulation is especially: Overloading (maximum recommended load exceeding) Device installation that can influence negatively operation and function of the cabinet or the installed equipment Change of the construction or design of the cabinet INSTALLATION OF THE CABINET This type of cabinet is to be hanged right on the wall using screws, wall plugs and washers (included in the supply). Spacing of mounting holes is showed and indicated as "R" in the cabinet scheme To secure the maximum recommended load, it is necessary to fix the cabinet on the wall with an appropriate carrying capacity (brick, concrete or similar) and to distribute the installed loading equally ENVIRONMENT PROTECTION All parts are made of recyclable materials and after its discard, it is necessary to dispose the cabinet according to valid regulations Supply includes: 2x key - front door, 4x screw 6x50, 4x washer 6,6, 4x dowel 10, 8x captive nut M6 Material: Safety hardened glass 5 mm thick, steel sheet

• Manufacturer No.: RBA-06-AS3-CAX-C1
• EAN Barcode: 8595105021774
• Colour: Grey (RAL7035)
• Height packaging: 0.350m
• Packaging volume: 0.0365m³
• Length packaging: 0.360m
• Manufacturer information: Triton Chemnitz GmbH
  Teichstraße 11
  09366 Niederdorf
  Deutschland
  [email protected]
• Country of origin: Czech Republic
• Im Angebot: No
• Stark reduziert: No
• Width packaging: 0.290m
• Weight: 6.830kg
• Brand: Tritón
• Customs tariff number: 8538100090
• Height unit: 6U
