EXTRALINK LITE 4U 10 280X310 wandmontage-rackkast grijs

Extralink brand rack cabinet - 4U, 10" 280X310mm Gray

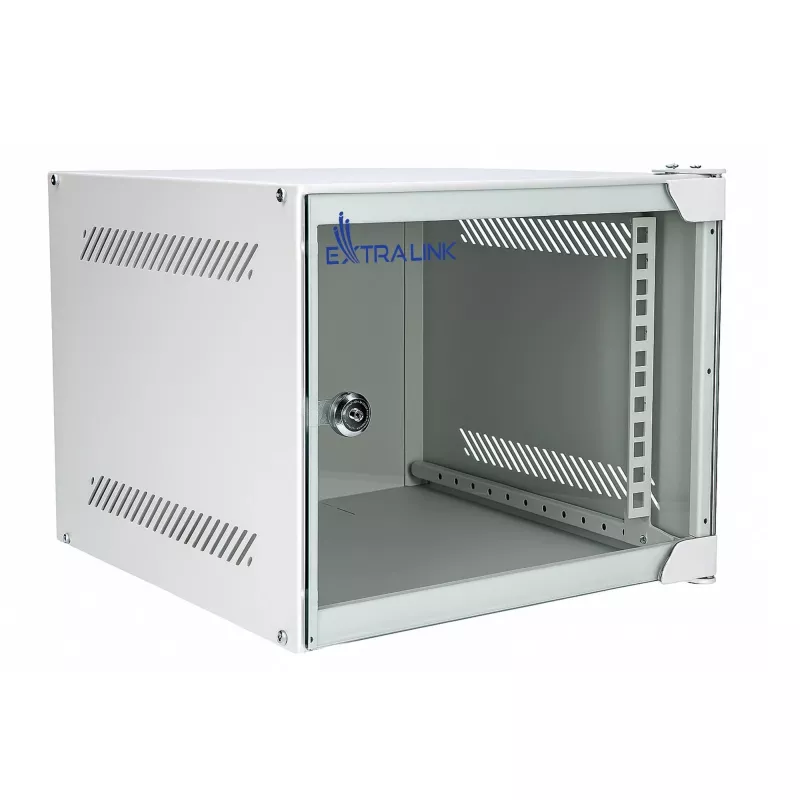

Extralink 's 4U high, 10-inch standard rack cabinet is designed to make efficient use of limited space in offices and network server rooms. Its well-thought-out design allows for quick and secure wall-mounting of key components, such as switches or CCTV equipment. The use of high-quality steel ensures that stored equipment is protected and cable management becomes intuitive and orderly. It is equipped with a tempered glass window, in addition, the front door can open to the left or right side.

Clearly marked cabinet height

The vertical rails have a corresponding height designation, which is 4U (from unit). The width of the cabinet is 280 mm and the depth is 310 mm.

Thoughtful design

The latches on the side walls make it possible to remove them. On the ceiling of the cabinet, a place has been prepared for installing a fan for better cooling of the equipment, and an additional grommet for cable pulling has been placed there.

Easy Installation In Just A Few Minutes

With clear instructions and a complete set of screws, assembling the cabinet is quick and intuitive. You can easily do it yourself - no need to call a technician!

Key features

• Type: 10" rack type hanging (wall) cabinet
• Dimensions:
  • Width: 280 mm
  • Depth: 310 mm

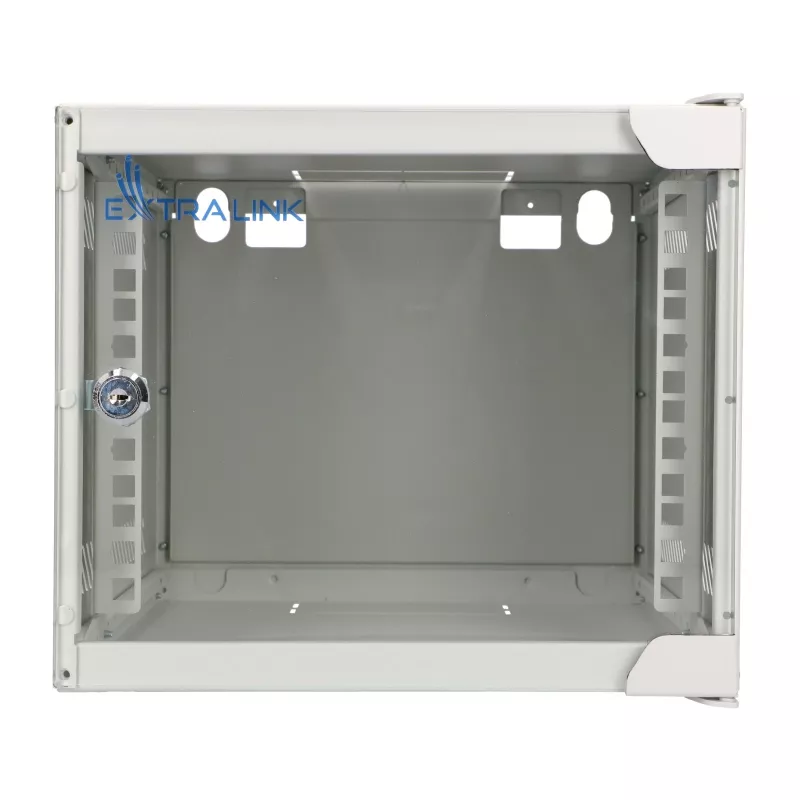

• Front door: Equipped with tempered glass and small round lock.

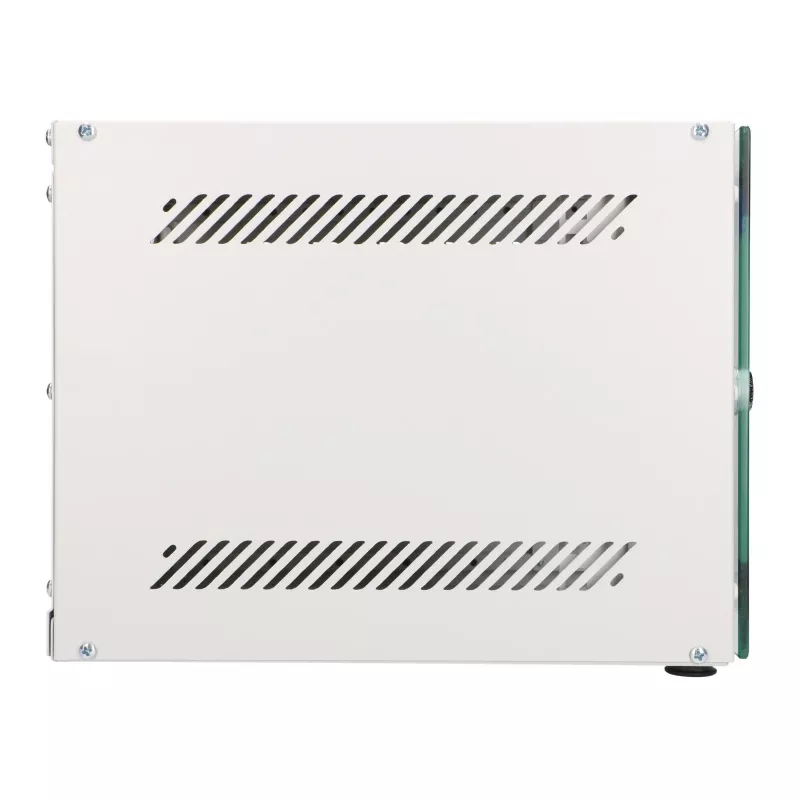

• Side panels: Removable (removable).
• Construction (Thickness of steel):
  • Mounting profiles: 1.5 mm
  • Other components: 0.8 mm
• Accessories included: 10 sets of cage (basket) nuts.
• Not included: Fan (fan), mounting rails, shelf, power strip (PDU).
• Packaging: Flat (for self-assembly).
