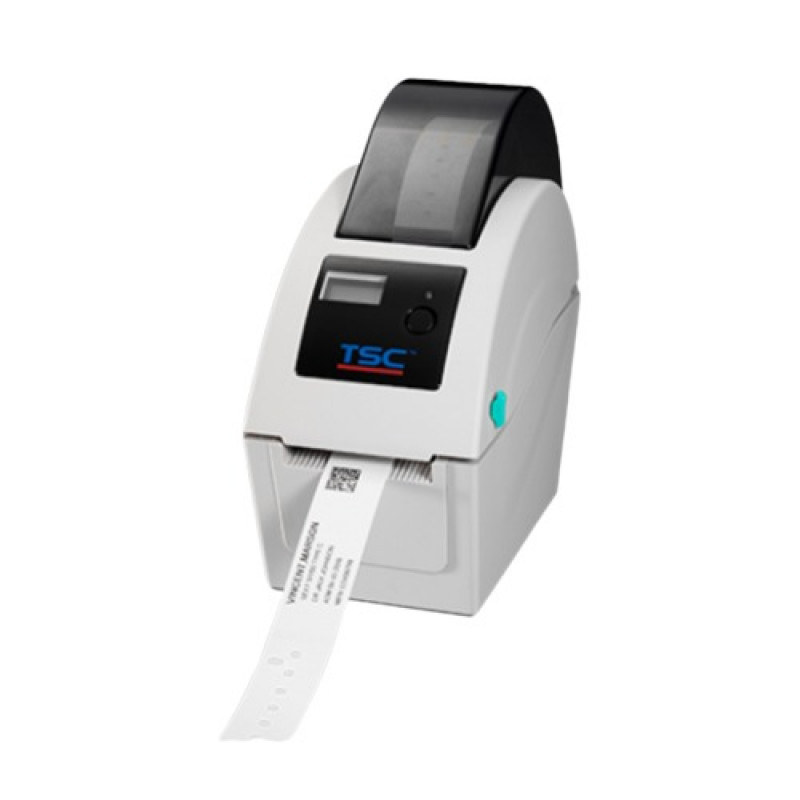

TSC TDP-225W 8 punten/mm 203dpi Disp. RTC TSPL-EZ USB Ethernet - labelprinter - labelprinter

With a crisp 203 dpi resolution and a rapid 127 mm/s print speed, the TSC TDP-225W delivers professional-grade label output for retail, logistics, and healthcare. Its direct thermal technology eliminates ink or toner costs, while the integrated LCD display and real-time clock keep operations running smoothly around the clock.

Overview

The TDP-225W is a compact yet robust label printer engineered for high-volume environments. It supports media widths up to 54 mm and roll diameters up to 127 mm, accommodating a wide range of label types including die-cut, continuous, and black mark. Dual connectivity via USB 2.0 and Ethernet 10/100 Mbps ensures seamless integration into any network, while TSPL-EZD emulation offers compatibility with existing TSPL-EZ software.

What stands out

• 203 dpi direct thermal printing for sharp text, barcodes, and graphics.
• Fast 127 mm/s print speed boosts productivity.
• Built-in Ethernet and USB for flexible connectivity.
• LCD graphic display and real-time clock for easy status monitoring and time-stamped labels.
• Supports 1D and 2D barcodes, including QR codes.
• Durable double-walled plastic housing withstands demanding workspaces.

Technical details

• Print technology: Direct thermal
• Maximum print width: 54 mm (2.13")
• Maximum print length: 999 mm (39.3")
• Print speed: 127 mm/s (5 ips)
• Resolution: 203 dpi (8 dots/mm)
• Memory: 8 MB SDRAM, 4 MB Flash
• Connectivity: USB 2.0, Ethernet 10/100 Mbps
• Printer language: TSPL-EZD (compatible with TSPL-EZ)
• Display: LCD graphic display
• Real-time clock: Yes
• Sensors: Gap, black mark, head open
• Media types: Die-cut, continuous, fan-fold, black mark, tag stock
• Media roll diameter: 127 mm (5") max
• Media core diameter: 25.4 mm (1")
• Power supply: External universal switching power supply
• Housing: Double-walled plastic

Our verdict

The TSC TDP-225W strikes an ideal balance between performance and value. Its high-speed printing, network readiness, and user-friendly features make it a reliable workhorse for any labeling task.
