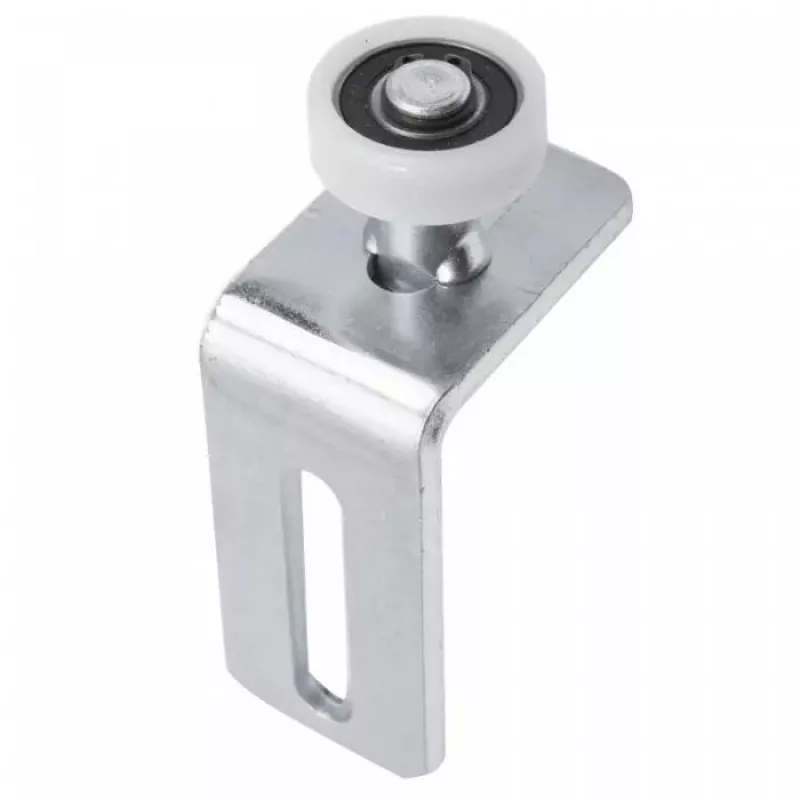

PSG 60.043 verstelbare geleiderol Ø35 mm voor schuifpoorten

Sliding gates that bind, scrape, or rattle often suffer from misaligned or worn guide rollers. The PSG 60.043 adjustable guide roller solves this by providing precise vertical and horizontal adjustment, ensuring smooth, quiet gate travel and extended track life. Its 35 mm polyamide roller runs on a plain bearing, while the galvanized steel bracket resists corrosion, making it suitable for outdoor installations in demanding environments.

Who is it for

Gate installers, fabricators, and maintenance teams working with sliding gates in residential, commercial, or industrial settings. Ideal for both new installations and retrofits where alignment adjustments are required.

Main features

• Adjustable bracket allows fine-tuning in both vertical and horizontal planes for perfect gate alignment.
• 35 mm diameter polyamide roller offers low friction, high wear resistance, and quiet operation.
• Galvanized steel bracket provides excellent corrosion resistance, suitable for outdoor use.
• Bolt-on mounting ensures secure attachment to gate posts or frames.
• Plain bearing design requires minimal maintenance and performs reliably under load.

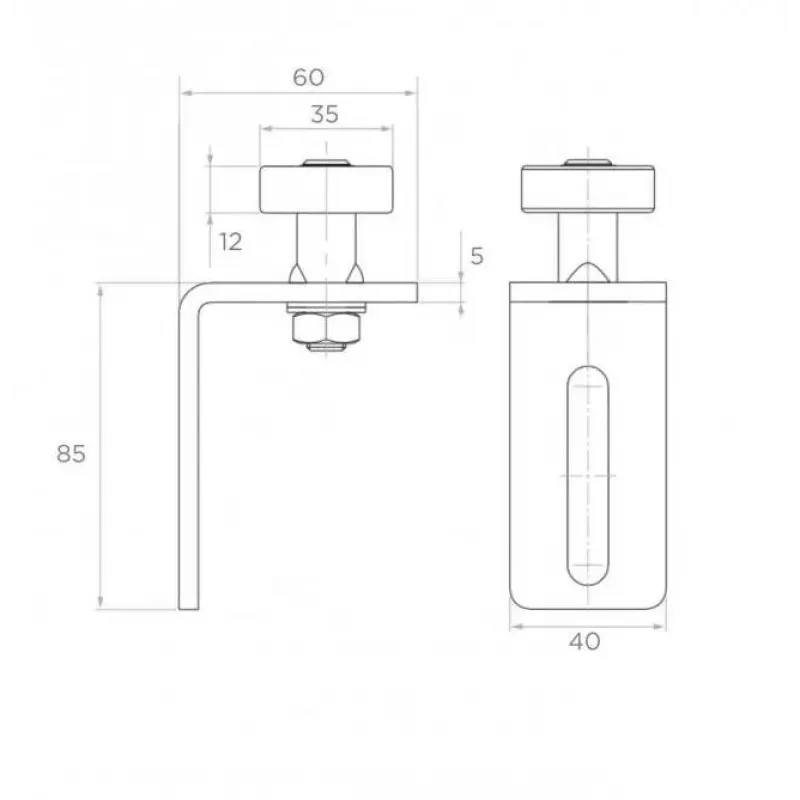

Specifications

• Roller diameter: 35 mm
• Roller width: 30 mm
• Roller material: Polyamide (PA)
• Roller colour: Black
• Bracket material: Galvanized steel
• Bracket finish: Galvanized
• Adjustability: Vertical and horizontal
• Number of rollers: 1
• Bearing type: Plain bearing
• Overall bracket length: approx. 100 mm
• Overall bracket width: approx. 50 mm
• Overall height (adjustable): approx. 100–120 mm
• Application: Sliding gates
• Mounting type: Bolt-on
• Corrosion resistance: High

Tips

For optimal gate performance, check roller alignment periodically and adjust as needed to compensate for gate settling or track wear. Lubricate the plain bearing lightly with a suitable grease to extend service life in high-cycle applications.
