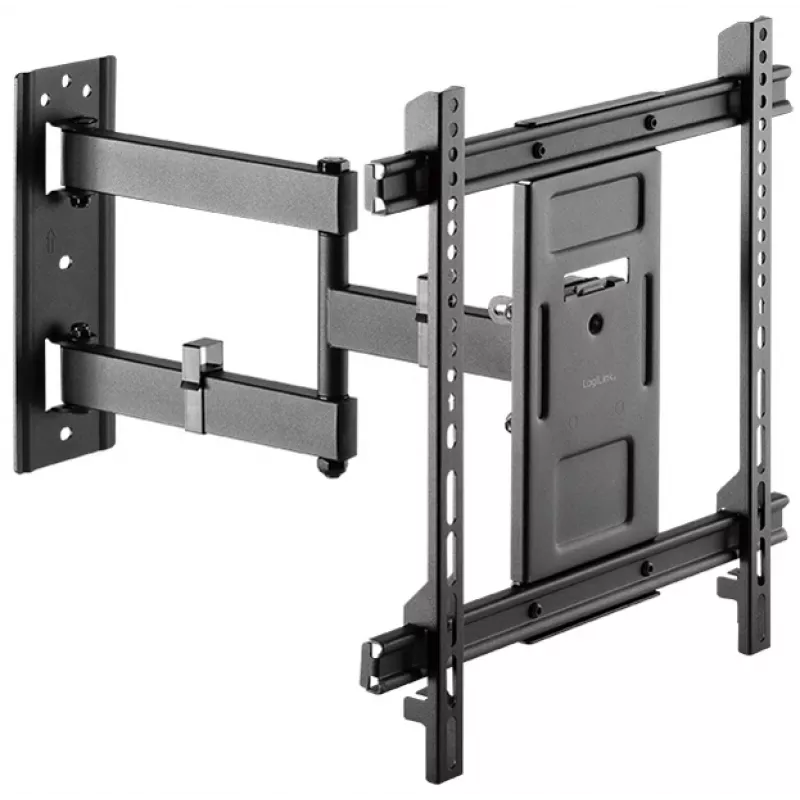

TV-beugel LogiLink BP0112 177,8 cm (70 inch) zwart

The LogiLink BP0112 TV mount is designed for flat and curved screens from 32" up to 70" and supports a maximum load of 50 kg. It fits VESA patterns from 200 x 100 mm to 400 x 400 mm and offers adjustable extension from 7.8 cm up to 44.2 cm from the wall. The mount is finished in black and is intended for single-display installations, providing tilt and swivel adjustment to achieve the desired viewing position.

Advantages

The mount provides a tilt range of -5° to 13° and a swivel range of -90° to 90°, enabling flexible screen orientation. Its wide VESA compatibility covers common TV and monitor hole patterns up to 400 x 400 mm. With a robust maximum weight capacity of 50 kg and an adjustable wall distance, the bracket accommodates a variety of screen sizes and room layouts while keeping a low-profile appearance in black.

Suitable for

• Home living rooms and bedrooms for wall-mounted TVs
• Offices or meeting rooms requiring a wall-mounted display
• Retail or public spaces where adjustable viewing angles are needed
• Supports screens between 32" and 70" with VESA up to 400 x 400 mm

Key specifications

• Model: LogiLink BP0112
• Supported screen size: 32"–70"
• Maximum weight capacity: 50 kg
• VESA compatibility: 200 x 100 mm to 400 x 400 mm
• Tilt angle: -5° to 13°
• Swivel angle: -90° to 90°
• Distance to wall: 7.8 cm – 44.2 cm
• Colour: Black

How to use

Attach the mounting plate to the display using screws that match the display's VESA pattern. Secure the wall bracket to a solid wall or studs following the included template and hardware. Hang the display on the wall bracket and fasten the safety screws. Adjust tilt and swivel to the preferred viewing angle, and set the extension to the desired distance from the wall. Verify all fastenings are tight before use.

Recommendations

Ensure the wall and fixings can support the combined weight of the mount and display; use appropriate anchors for the wall type. Do not exceed the maximum weight of 50 kg and follow the manufacturer's instructions for safe installation and maintenance.
