Digitus Full Motion TV-muurbeugel 37-80 inch max. gewicht 60 kg

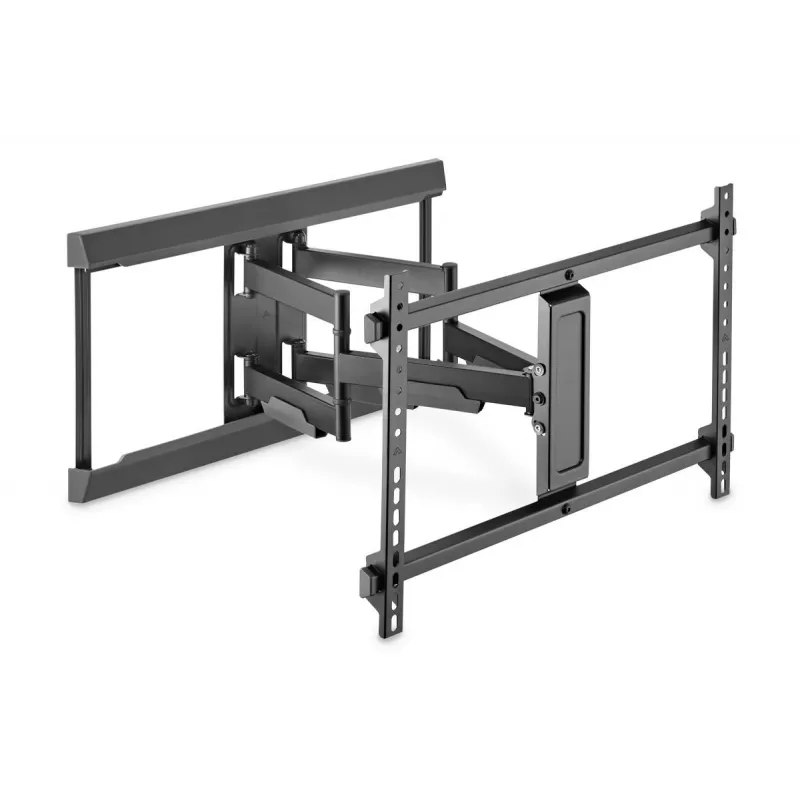

The DIGITUS Full Motion TV Wall Bracket for 37-80" displays is a heavy-duty mounting solution that supports screens up to 60 kg and fits VESA patterns from 200x100 to 600x400. The bracket extends from 6.3 to 53.6 cm and provides full motion adjustment — swivel, tilt and fine horizontal rotation — to position a TV or monitor precisely while keeping cables neatly routed with integrated cable management.

Advantages

This wall bracket offers a high maximum load capacity (60 kg) and broad VESA compatibility for displays between 37" and 80". Its extendible arm (6.3–53.6 cm) and wide swivel range (+60° to -60°) allow flexible placement and viewing angles. Tilt adjustment (+5° to -10°) and small horizontal rotation (+3° to -3°) enable accurate screen alignment. Individual arm movement on the permanently mounted wall plate and locking capability provide additional positioning options. Integrated cable management keeps the installation tidy.

Suitable for

• Mounting large TVs or monitors (37"–80") in living rooms or conference rooms
• Applications requiring frequent angle adjustment for optimal viewing
• Installations where tidy cable routing is desired
• Displays using VESA patterns from 200x100 to 600x400

Key specifications

• Maximum supported screen size: 80"
• Maximum load capacity: 60 kg
• Extension (depth): 6.3–53.6 cm
• Swivel: +60° to -60°
• Tilt: +5° to -10°
• Horizontal adjustment (rotation): +3° to -3°
• VESA compatibility: 200x100, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
• Colour: Black
• Brand/Model: DIGITUS DA-90454

How to use

Attach the permanently mounted wall carrier plate to a suitable load-bearing wall following local building and safety regulations, ensuring anchors are appropriate for the wall material. Fix the bracket arms to the display according to its VESA pattern and secure all mounting screws. Adjust the extension, swivel and tilt to the desired viewing angle and use the horizontal rotation to fine-tune alignment. Move and lock the arms individually on the wall plate if required. Route cables through the integrated cable management channels before final tightening.

Recommendations

Check the display weight and VESA pattern before installation to confirm compatibility. Use appropriate wall anchors and tools for your wall type, and if in doubt, consult a professional installer to ensure safe mounting and correct load distribution.
