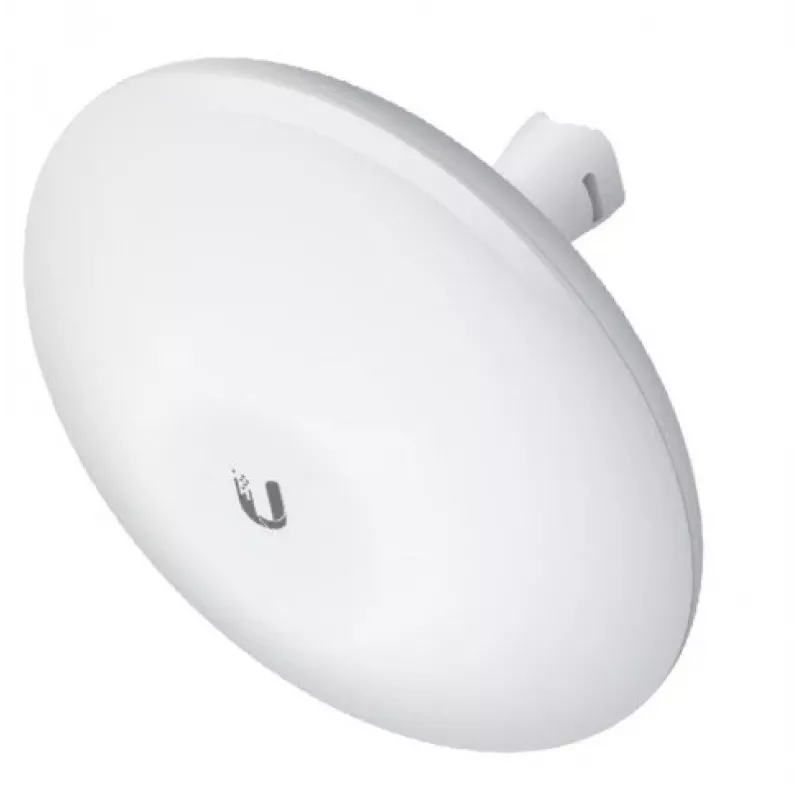

Ubiquiti NanoBeam M5 netwerkantenne 16 dBi

The Ubiquiti NanoBeam M5 is a high-performance outdoor network antenna designed for long-range wireless connectivity. With a 16 dBi antenna gain and support for 5 GHz frequency, it delivers reliable throughput of up to 150+ Mbps over distances exceeding 15 km. Ideal for point-to-point bridging, backhaul, and CPE applications, the NanoBeam M5 features airMAX TDMA technology for improved spectral efficiency and low latency. Its compact, weatherproof design ensures durability in harsh environments, while the included pole-mount kit simplifies installation.

Advantages

High-gain 16 dBi antenna for extended range; airMAX TDMA protocol for enhanced performance; rugged outdoor enclosure with UV stabilization; easy deployment with integrated mounting hardware; low power consumption of 6W.

Suitable for

• Point-to-point wireless bridges
• Wireless backhaul links
• Last-mile internet access
• Surveillance video transmission
• Remote site connectivity

Key specifications

• Antenna Gain: 16 dBi
• Operating Frequency: 5 GHz
• Wireless Standard: 802.11a/n, airMAX TDMA
• Max Throughput: 150+ Mbps
• Max Range: 15+ km
• Processor: Atheros MIPS 74Kc, 560 MHz
• System Memory: 64 MB DDR2
• Networking Interface: 1x 10/100 Ethernet Port
• Power Method: 24V Passive PoE
• Max. Power Consumption: 6W
• Operating Temperature: -40 to 70° C
• Enclosure Material: Outdoor UV Stabilized Plastic
• Mounting: Pole-Mount Kit (Included)
• Operating System: airOS
• Polarization: Dual-Linear
• Beamwidth: 45° (H/V/Elevation)
• ESD/EMP Protection: ±24KV Contact / Air
• Management Interface: Ethernet In-Band / airOS

Recommendations

The Ubiquiti NanoBeam M5 is an excellent choice for extending network coverage over long distances. Its robust design and advanced airMAX technology ensure reliable performance in outdoor environments. Ideal for service providers and enterprises requiring cost-effective wireless connectivity.
