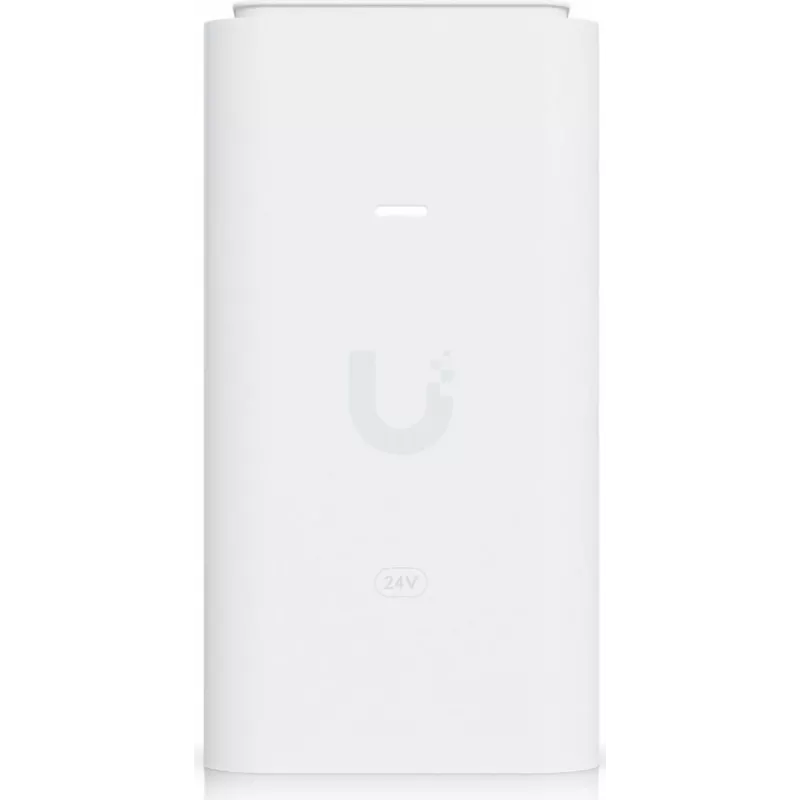

Ubiquiti UACC-Adapter-PoE-24-12W 12W PoE-adapter met 2,5-GbE-connectiviteit

Network installers and IT technicians often need a reliable way to power PoE devices while maintaining high-speed data links. The Ubiquiti UACC-Adapter-PoE-24-12W delivers 12W of PoE power and supports 2.5 Gigabit Ethernet, making it suitable for access points, IP cameras, and other PoE-enabled endpoints in offices, retail spaces, and small to medium deployments.

Key specifications

• PoE Standard: IEEE 802.3af
• Output: 48V DC, 12W max
• Data Rate: 2.5 Gbps (2.5GbE) on both data-in and PoE-out ports
• Input: 100-240V AC, 50/60 Hz, 0.3A max
• Efficiency: >80%
• LED indicators: Power, PoE
• Operating temperature: 0 to 40° C (32 to 104° F)
• Operating humidity: 5 to 90% non-condensing
• ESD protection: ±15 kV air, ±8 kV contact
• Wall-mountable with included bracket
• Certifications: CE, FCC, IC

Why choose it

This adapter bridges the gap between legacy PoE infrastructure and modern multi-gigabit networks. Its 2.5GbE pass-through ensures your high-speed devices are not bottlenecked, while the compact, wall-mountable design simplifies installation in tight spaces. The included power cord and robust ESD protection make it a dependable choice for professional deployments.

Ideal use cases

• Powering Ubiquiti access points that require 802.3af PoE and benefit from 2.5GbE uplinks
• Connecting IP cameras in locations where a PoE switch is not available
• Upgrading existing PoE injectors to support higher data rates without replacing cabling
• Temporary setups or test benches where a portable PoE source is needed

Good to know

The adapter uses 4-pair powering (pins 1, 2, 3, 6 and 4, 5, 7, 8) for efficient power delivery. It operates within a temperature range of 0–40°C and includes a region-specific AC power cord. The wall-mount bracket allows for tidy installation behind desks or in network closets.
