Ubiquiti UISP -FIBER-XGS netwerk-mediaconverter 10000 Mbit/s

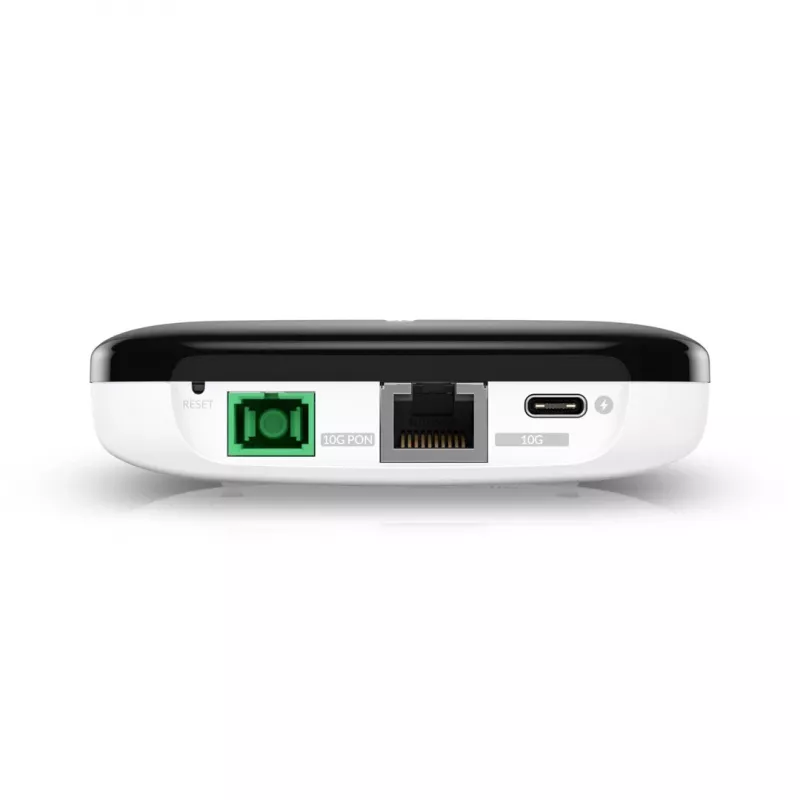

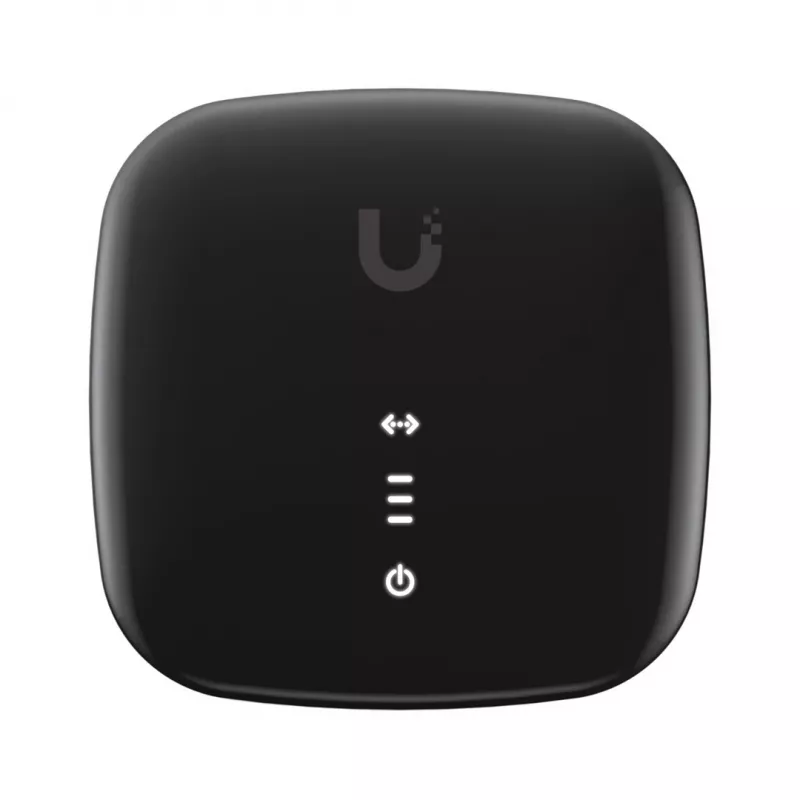

The Ubiquiti UISP-FIBER-XGS is an optical network unit and media converter designed to deliver up to 10 Gbps uplink and downlink speeds over fiber links reaching distances of up to 20 km. It combines a single Ethernet RJ-45 interface with one fiber port and is housed in a durable polycarbonate enclosure available in white and black.

Advantages

The device supports multi-rate Ethernet including 10 Gigabit, 5G, 2.5G, Gigabit and Fast Ethernet, enabling compatibility with a variety of network equipment. With an SC/APC fiber connector and a rated maximum transfer distance of 20,000 m, it is suitable for long-reach fiber deployments. Its compact lightweight design (0.22 kg) simplifies installation and handling.

Suitable for

• Long-distance fiber backbone links (up to 20 km)
• Converting fiber connections to Ethernet for customer premises equipment
• High-speed access aggregation in ISP and enterprise networks

Key specifications

• Maximum data transfer rate: 10000 Mbit/s (10 Gbps)
• Ethernet LAN (RJ-45) ports: 1
• Fiber ports quantity: 1
• Ethernet interface types: 10 Gigabit, 5 Gigabit, 2.5 Gigabit, Gigabit, Fast Ethernet
• Ethernet LAN data rates supported: 10000, 5000, 2500, 1000, 100 Mbit/s
• Fiber optic connector: SC/APC
• Maximum transfer distance: 20000 m
• Product colour: White, Black
• Weight: 0.22 kg

How to use

Install the UISP-FIBER-XGS where the fiber line terminates and connect the SC/APC fiber cable to the unit's fiber port. Connect Ethernet equipment to the RJ-45 port using an appropriate Ethernet cable. Power the unit according to the manufacturer's instructions and verify link status and negotiated speed on the connected devices. Ensure compatible link speeds are selected or automatically negotiated between the media converter and connected equipment.

Recommendations

Place the unit in a dry, ventilated location and protect fiber connectors from dust or physical damage. Use quality SC/APC fiber cables and ensure proper connector cleaning for optimal signal integrity. Match the device's supported Ethernet speeds with network equipment to avoid link mismatch.
