UBIQUITI WAVE-FIBER-ONU-20 GPON ONT 2,5 Gbps tot 20 km, 20-pack

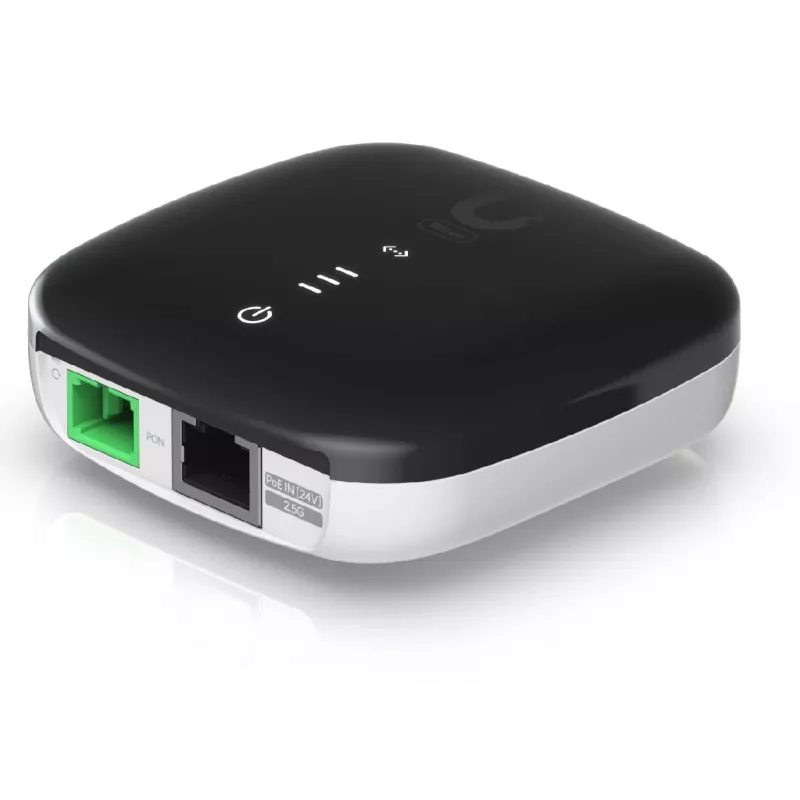

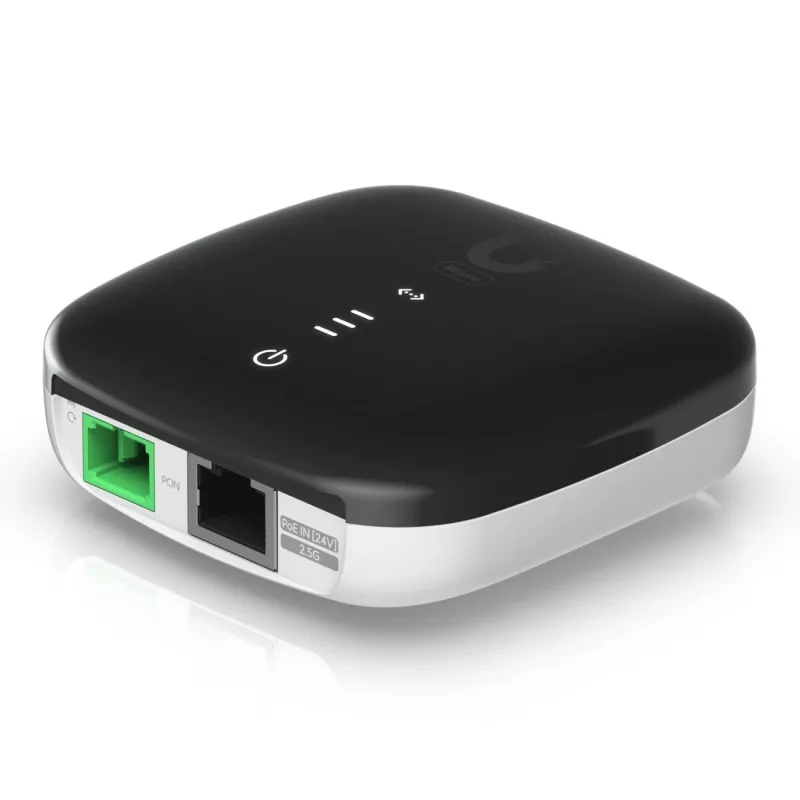

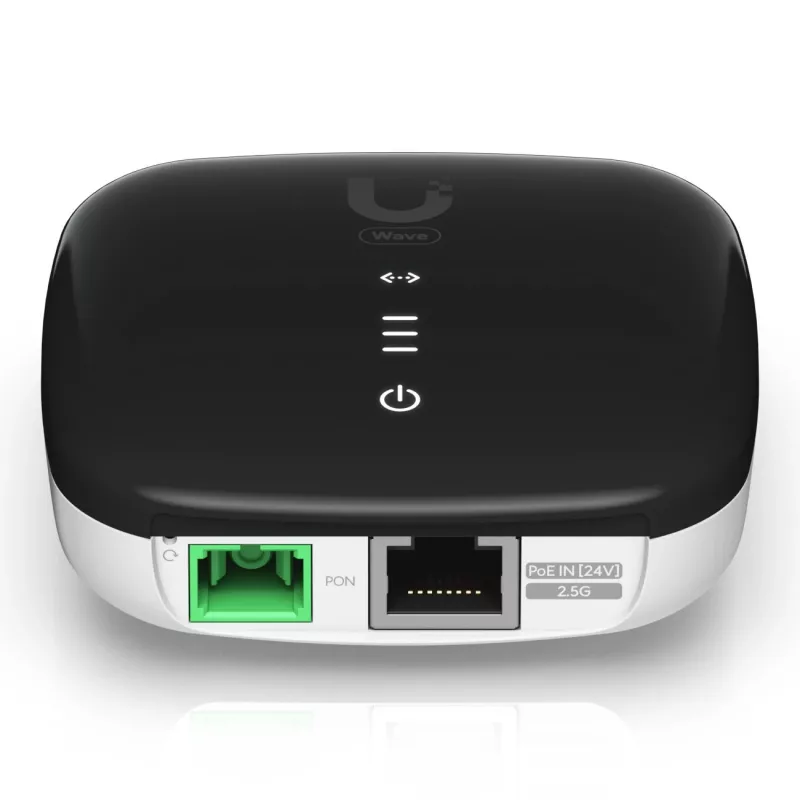

The Ubiquiti WAVE-FIBER-ONU-20 is a high-performance GPON Optical Network Terminal (ONT) designed for reliable fiber-to-the-premises (FTTP) deployments. This 20-pack provides cost-effective scalability for ISPs and network operators, delivering downstream data rates of up to 2.488 Gbps and upstream rates of 1.244 Gbps over distances up to 20 km. Each unit features a compact, wall-mountable design with a single Gigabit Ethernet port and supports management via UISP for streamlined network administration.

Advantages

Deploy with confidence using the WAVE-FIBER-ONU-20, which offers robust performance and easy installation. The 20-pack reduces per-unit cost and simplifies logistics for large-scale rollouts. With support for 24V Passive PoE or USB-C power, these ONTs provide flexible deployment options. The SC/APC optical connector ensures low-loss connections, while the wide operating temperature range (-10 to 45°C) suits various environments.

Suitable for

• Internet Service Providers (ISPs) deploying GPON networks
• FTTP (Fiber to the Premises) installations
• Multi-dwelling units (MDUs) and business parks
• Network operators requiring high-density ONT deployments

Key specifications

• Product Type: GPON Optical Network Terminal (ONT)
• Pack Quantity: 20 Units
• GPON Standard: ITU-T G.984
• Downstream Data Rate: 2.488 Gbps
• Upstream Data Rate: 1.244 Gbps

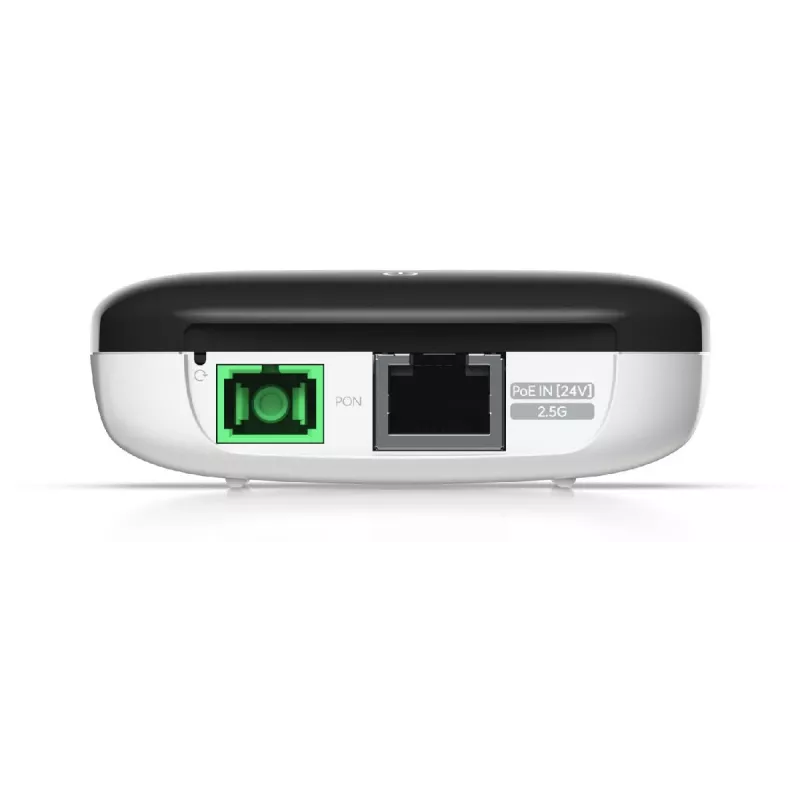

• Optical Connector: SC/APC
• Ethernet Ports: 1x Gigabit Ethernet (10/100/1000 Mbps) per unit
• Maximum Fiber Distance: 20 km
• Tx Wavelength: 1310 nm
• Rx Wavelength: 1490 nm
• Tx Optical Power: 0.5 to 5 dBm
• Rx Optical Power Sensitivity: -27 to -8 dBm
• Power Method: 24V Passive PoE (4,5+; 7,8-) or USB-C (5V, 1A)
• Power Supply: Not included (requires 24V PoE adapter or 5V USB-C adapter)
• Management: UISP (Ubiquiti Internet Service Provider)
• Operating Temperature: -10 to 45°C (14 to 113°F)
• Enclosure Material: Polycarbonate
• Mounting: Wall-mountable (kit included per unit)
• LED Indicators: Power, Ethernet, Fiber Link/Activity

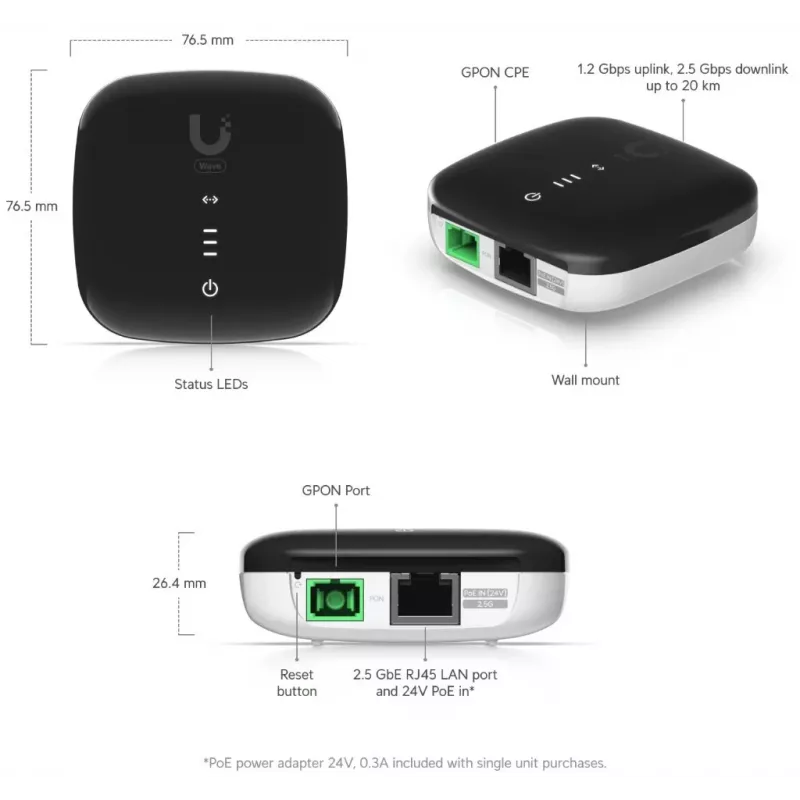

• Dimensions (per unit): 76.5 x 76.5 x 26.8 mm

Recommendations

For optimal performance, pair the WAVE-FIBER-ONU-20 with Ubiquiti's UISP-compatible OLTs and power adapters. Ensure proper fiber termination using SC/APC connectors. The 20-pack is ideal for new deployments or expanding existing GPON networks.
