Ugreen 6-poorts Gigabit Ethernet-switch met PoE+ - grijs

The Ugreen 6-Port Gigabit Ethernet Switch with PoE+ is a high-performance, unmanaged switch designed for small to medium-sized networks. It features 4 PoE+ ports and 2 uplink ports, delivering reliable connectivity and power to devices such as IP cameras, VoIP phones, and wireless access points. With a total PoE budget of 65W and up to 30W per port, it simplifies installation by eliminating the need for separate power supplies. The fanless metal housing ensures silent operation and durability, making it ideal for desktop use in offices, homes, or surveillance systems.

Advantages

This switch offers plug-and-play setup with no configuration required, saving time and effort. Its PoE+ capability reduces cable clutter and provides flexible device placement. The robust metal casing and fanless design guarantee long-lasting, quiet performance. With a switching capacity of 12 Gbps and jumbo frame support, it ensures smooth data transfer for bandwidth-intensive applications.

Suitable for

• Expanding network connectivity in small offices or home networks

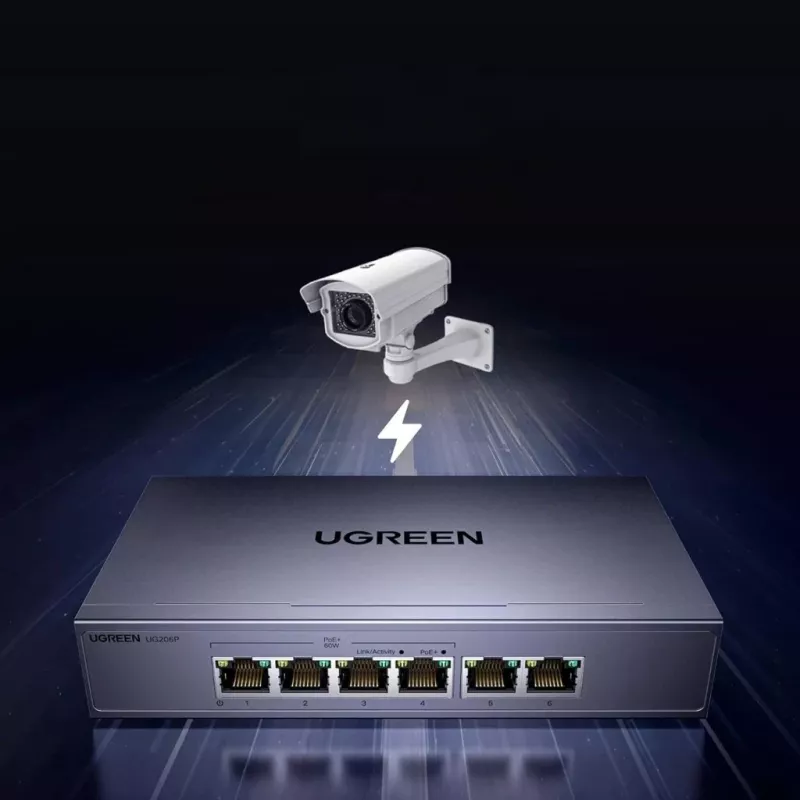

• Powering and connecting PoE devices like IP cameras, VoIP phones, and access points
• Creating a reliable surveillance system with centralized power
• Desktop or shelf-mounted installations where silent operation is required

Key specifications

• 6 Gigabit Ethernet ports (4 PoE+ 10/100/1000Mbps, 2 uplink 10/100/1000Mbps)
• PoE standard: IEEE 802.3af/at (PoE+)
• Max PoE power per port: 30W, total budget: 65W
• Switching capacity: 12 Gbps
• Packet forwarding rate: 8.928 Mpps
• MAC address table: 2K entries
• Jumbo frame support: 9K
• Network standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at
• Management: Unmanaged
• Installation: Desktop
• Housing material: Metal
• Cooling: Fanless
• LED indicators: Power, Link/Act, PoE Status
• Power supply: External DC 52V/1.25A adapter
• Color: Grey
• Operating temperature: 0°C to 40°C
• Operating humidity: 10% to 90% non-condensing

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. This switch is ideal for users seeking a cost-effective, easy-to-deploy solution for powering and connecting PoE devices without complex setup.
