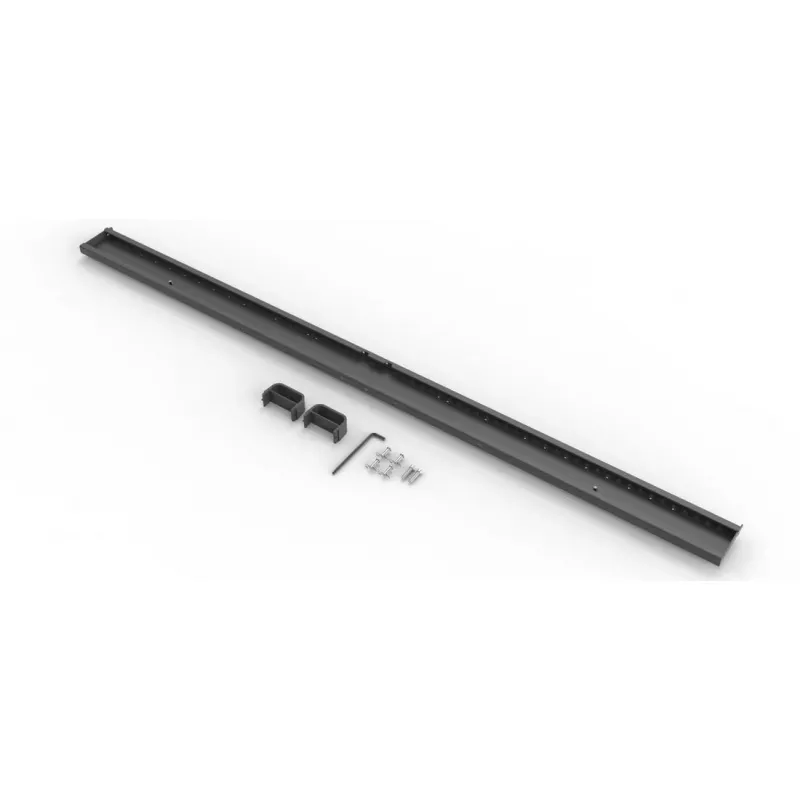

Uitbreidingsset Heckler Design H824-BG plafondbeugel max. beelddiagonaal 177,3 cm

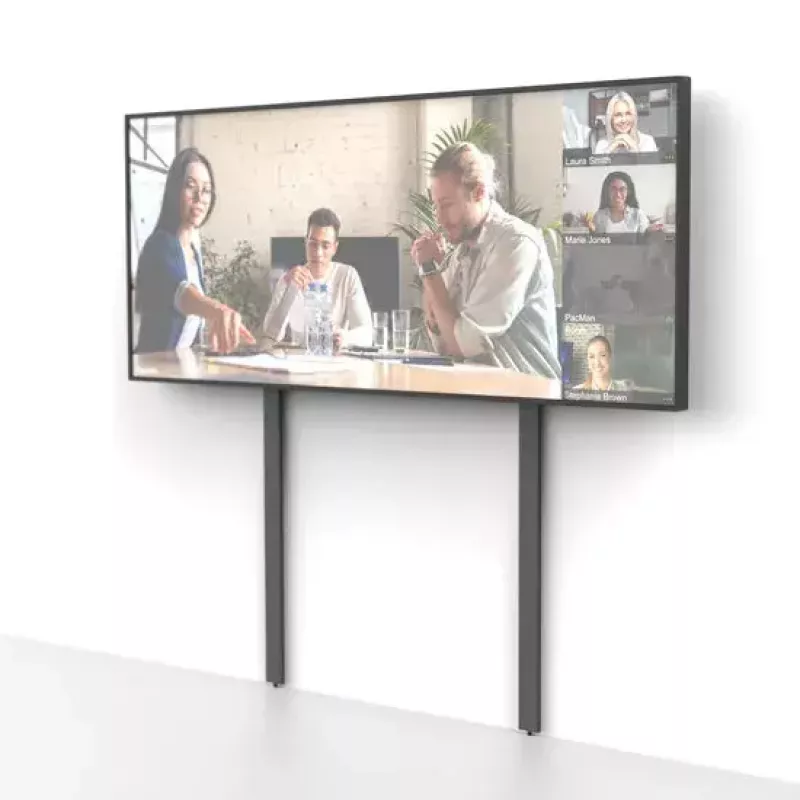

The Heckler Design H824-BG Extension Kit is made for larger displays and provides a secure solution for ceiling mounting screens up to 177.3 cm. Designed to integrate with the Heckler AV Wall system, this kit supports wider horizontal VESA patterns and helps expand display size without replacing existing infrastructure.

Advantages

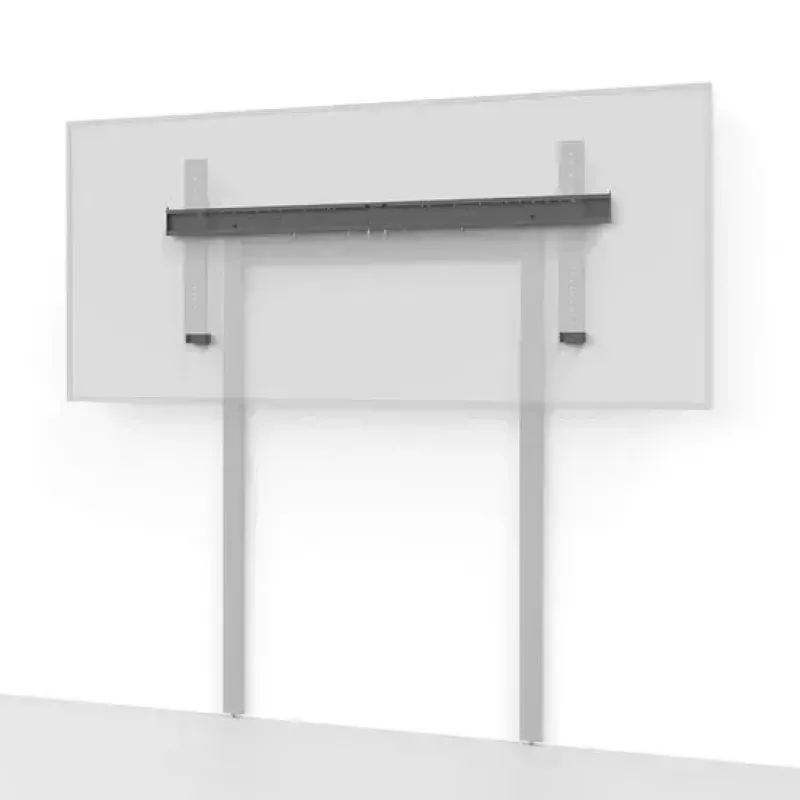

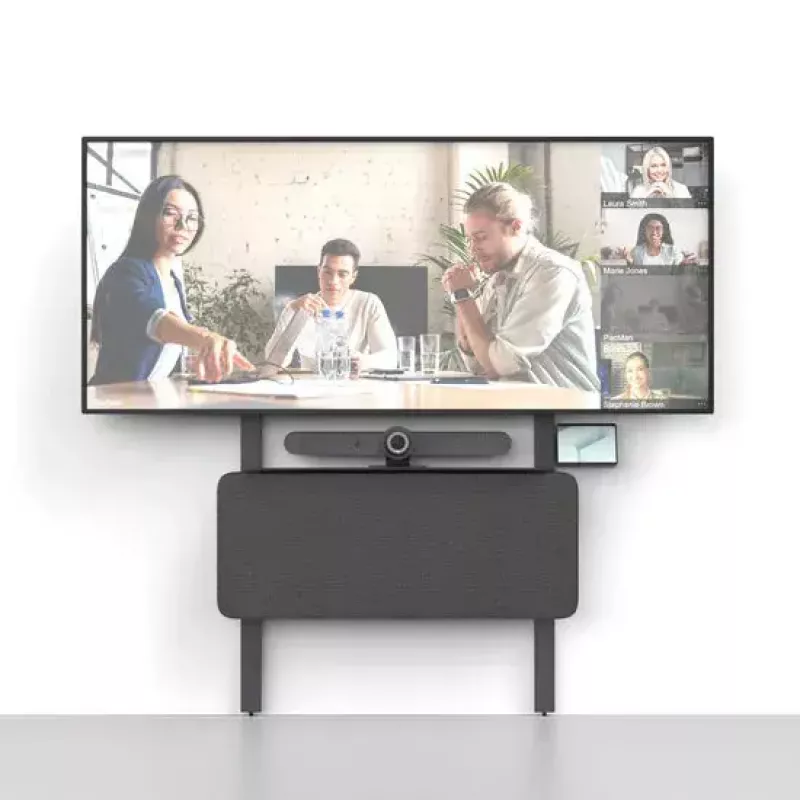

The kit supports horizontal VESA patterns from 350 mm to 1500 mm, offering compatibility with a wide range of large displays. Its construction provides a stable mounting platform for ceiling installations, and the design allows seamless integration with Heckler AV Wall accessories such as the Video Meeting Kit and Controller Mount. Installation is simplified to reduce time and labour costs.

Suitable for

• Ceiling mounting of large conference or presentation screens
• Upgrading existing Heckler AV Wall setups to larger displays
• Meeting rooms, training rooms, lecture halls, and other shared spaces

Key specifications

• Brand: heckler design
• Model / MPN: H824-BG
• Max screen size: 177.3 cm

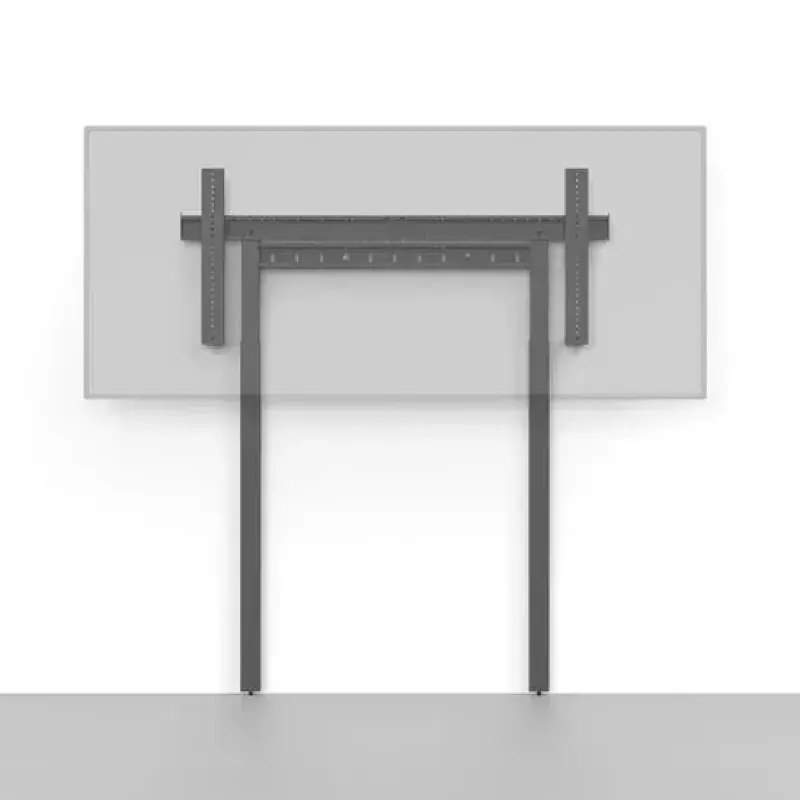

• Supported horizontal VESA: 350 mm – 1500 mm
• Width: 1772 mm
• Depth: 114 mm
• Height: 37 mm
• EAN: 757350577279

How to use

Attach the Heckler H824-BG extension kit to the ceiling mount or AV Wall structure following the manufacturer's alignment points for the VESA pattern. Secure the display using the appropriate mounting hardware for the display's VESA width within the supported 350–1500 mm range. Ensure all fasteners are tightened and that the assembly is level before completing cable routing and final adjustments.

Recommendations

Installations should follow local building codes and weight-rating limits. Use qualified personnel for ceiling-mounted displays to verify structural support and safe installation. Check compatibility of the display's VESA pattern and weight with the H824-BG specifications before mounting.
