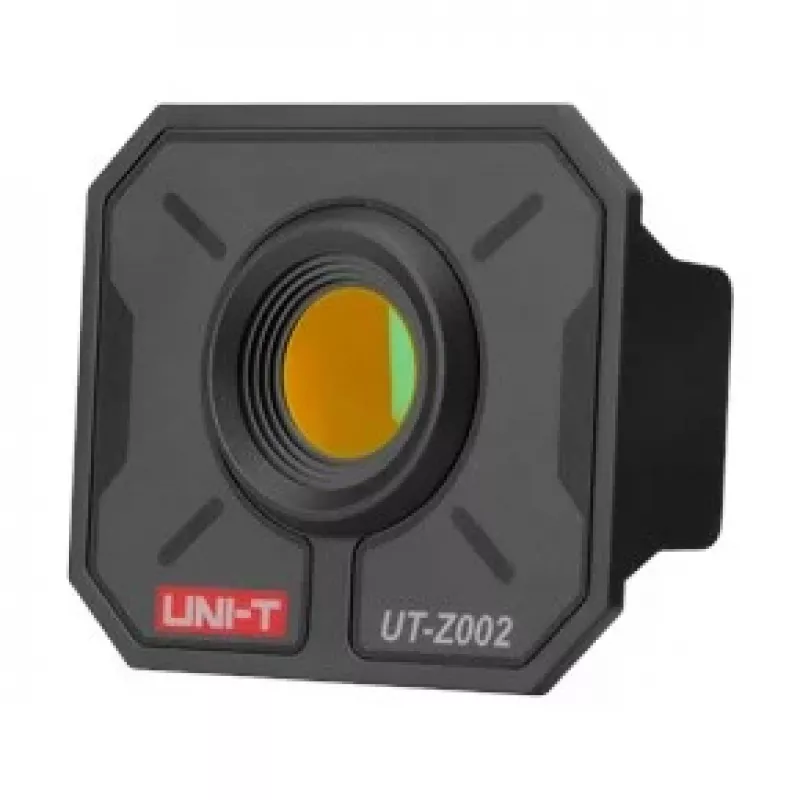

UNI-T MIE0502 Macro-objectief voor warmtebeeldcamera's van de UTi260-serie (UT-Z002)

Close-up thermal inspection demands a lens that can reveal minute thermal signatures without distortion or loss of detail. The UNI-T MIE0502 macro lens (UT-Z002) is engineered specifically for the UTi260 series, providing a 15 mm x 11 mm measurement area at a working distance of just 10 mm. Unlike generic close-up filters, this lens uses a precision germanium element and magnetic attachment for instant, repeatable positioning, making it an essential tool for electronics troubleshooting and PCB analysis.

Highlights

• Compatible with UNI-T UTi260B, UTi260A, UTi260K, and UTi260P thermal imagers
• Fixed focus at 10 mm working distance for consistent close-up imaging
• Germanium lens material ensures high infrared transmission and sharp thermal detail
• Magnetic attachment allows quick, tool-free installation and removal
• Robust aluminum alloy housing in black for durability in field and lab environments
• Wide operating temperature range from -10°C to 50°C

In daily use

Attach the MIE0502 to your UTi260 thermal imager and bring it within 10 mm of the target to capture detailed thermal maps of small components. The 15 mm x 11 mm field of view is ideal for inspecting PCBs, identifying hot spots on ICs, checking solder joints, or analyzing small mechanical parts. The magnetic mount snaps into place securely, eliminating the need for threaded adapters and reducing setup time. The aluminum alloy body withstands everyday handling, while the germanium element maintains image clarity across the entire frame.

Full specifications

• Product Type: Macro Lens
• Compatibility: UNI-T UTi260B, UTi260A, UTi260K, UTi260P Thermal Imagers
• Working Distance: 10 mm
• Measurement Area (FOV): 15 mm x 11 mm
• Lens Material: Germanium
• Attachment Method: Magnetic
• Focus Type: Fixed Focus
• Primary Application: Close-up inspection of PCBs, electronic components, small objects
• Housing Material: Aluminum Alloy
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Operating Humidity: 10% to 95% RH (non-condensing)
• Color: Black

Final note

For electronics engineers and technicians who need to see thermal details on tiny components, the UNI-T MIE0502 macro lens turns your UTi260 thermal imager into a powerful close-up inspection tool, delivering sharp, distortion-free images with minimal setup effort.
