Noodstroomvoeding Eaton 9E6KI

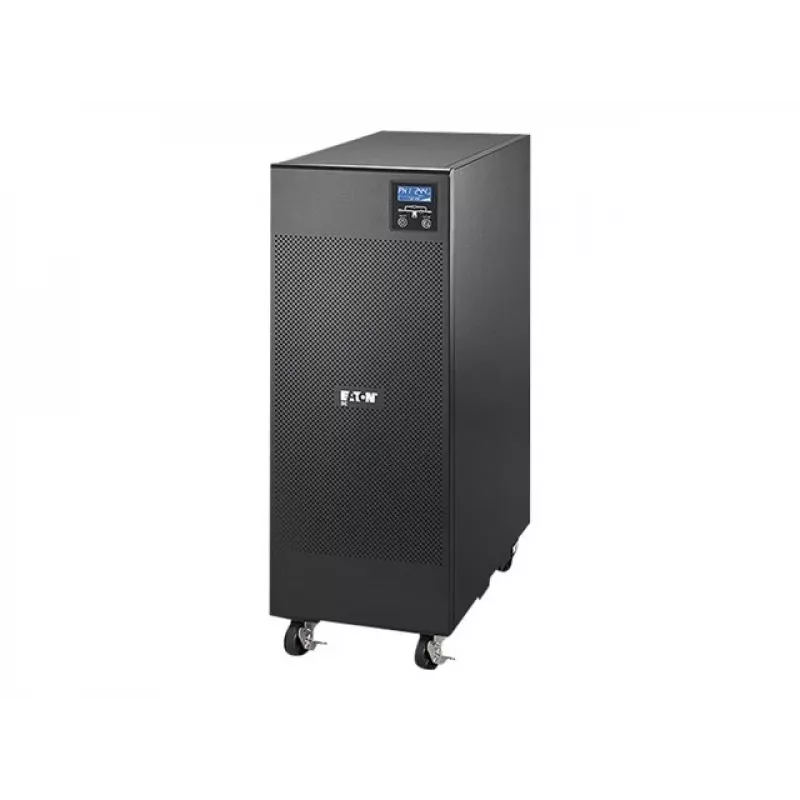

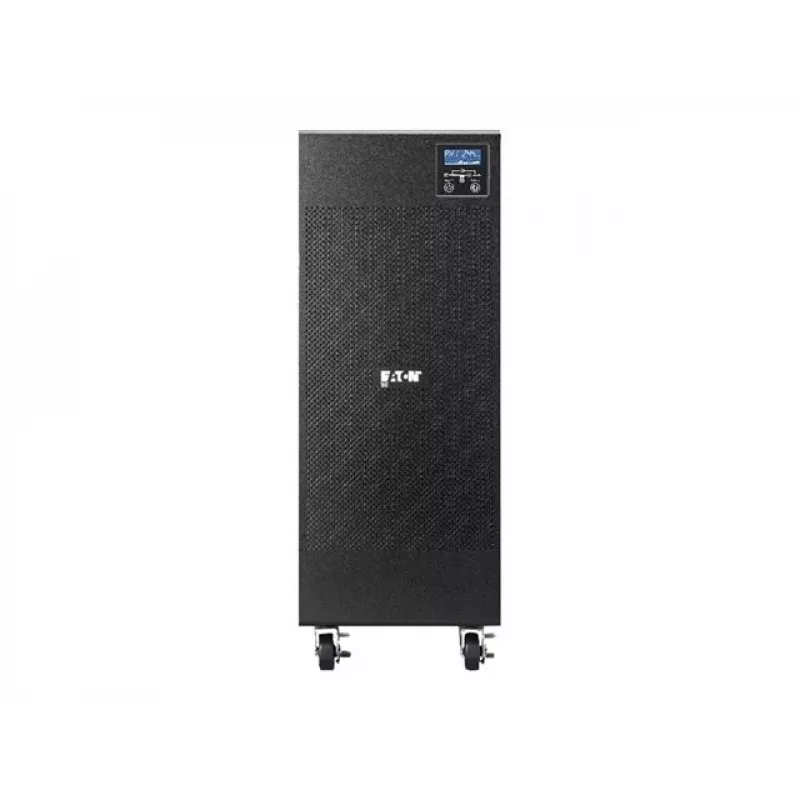

The Eaton 9E6KI is a tower uninterruptible power supply (UPS) using online double-conversion topology to deliver clean, continuous power. Rated at 6 kVA (4800 W) and built in a compact, robust black enclosure, this UPS is designed to protect industrial, medical, IT and telecommunications equipment. Typical runtime at full load is about 5 minutes; the unit includes terminal AC outlets and meets IEC/EN 62040-1 safety standards.

Advantages

The Eaton 9E family offers online double-conversion protection, an intuitive LCD for clear status information, and a 0.8 power factor to supply more real watts to connected devices. Internal and maintenance bypasses are provided as standard, and select models include a combo input (3:1 and 1:1) or an internal supercharger for extended runtime. Communication options include USB and RS232, with an optional network card for remote management. The UPS is compatible with common virtualization platforms such as VMware, Hyper-V, Citrix Xen and Red Hat.

Suitable for

Key specifications

How to use

Install the Eaton 9E6KI in a stable, ventilated tower location close to the load and mains supply. Connect the UPS input to a stable AC mains feed and attach equipment to the terminal AC outlets. Use the LCD panel to review status information and configure basic settings. For network monitoring or advanced management, install the optional network card and connect via the chosen interface (USB, RS232 or network). Follow the safety and installation instructions provided by the manufacturer for battery handling and electrical connections.

Recommendations

To ensure reliable operation, verify the combined load does not exceed the 4800 W output rating and plan battery runtime according to your required holdover time. Schedule regular maintenance checks, test the bypass functions periodically, and use compatible management software when integrating the UPS with virtualized environments.
