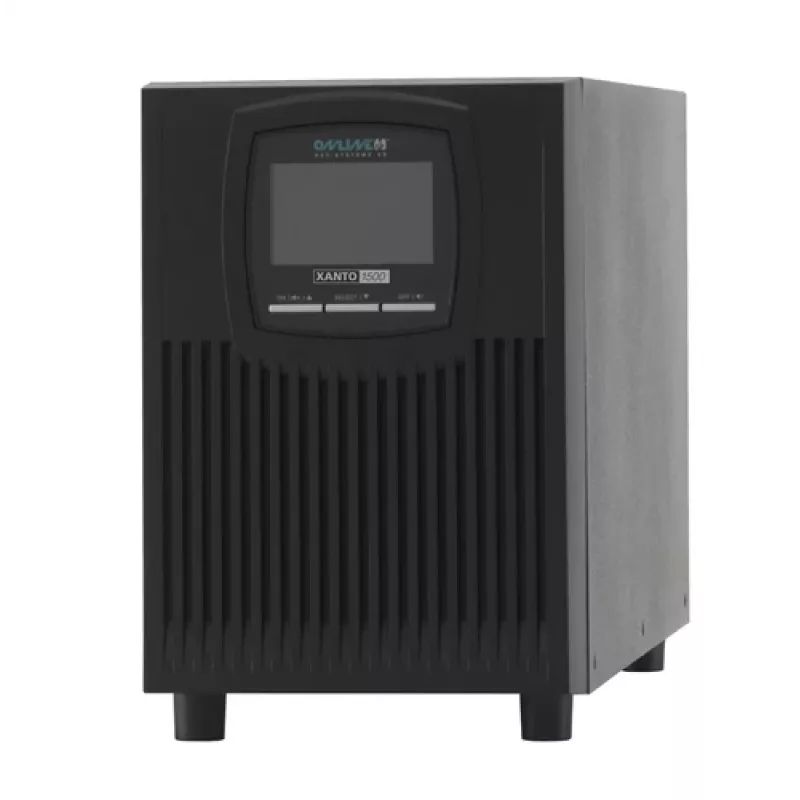

Noodstroomvoeding ONLINE USV-Systeme XANTO 1500

The ONLINE USV-Systeme XANTO 1500 is a double-conversion uninterruptible power supply (UPS) delivering 1.5 kVA / 1500 W of output power. Designed for protecting servers, network equipment, control gear and sensitive IT applications, the UPS isolates connected devices from mains disturbances and ensures an uninterrupted supply during mains failures. The XANTO series uses Dynamic Power Technology (DPT) to provide increased active power relative to conventional UPS units, offers scalable autonomy with external battery packs, and includes features such as battery deep-discharge protection, cold-start and optional SNMP connectivity. The unit is available in tower or 2U rack-tower form factor and includes four IEC C13 outlets, USB and RS-232 interfaces and active cooling.

Advantages

XANTO 1500 provides complete double-conversion protection that decouples the load from the mains, filtering out voltage fluctuations, peaks and harmonics. Dynamic Power Technology (DPT) supplies more active watts than many conventional UPS systems, allowing a smaller model to be used while maintaining required performance. Efficiency of up to 97% reduces operating costs and heat generation. The UPS supports scalable autonomy via external battery packs, automatic load cutoff on battery through switchable outlets, and protection against battery deep discharge. Optional SNMP adapter and included DataWatch software enable orderly shutdowns, remote monitoring and multi-server management.

Suitable for

• Small servers and rack equipment
• Network switches and routers
• Workstations and sensitive IT devices
• Control cabinets and automation controllers

Key specifications

• Output power: 1500 W
• Output power capacity: 1.5 kVA
• Battery capacity: 9 Ah (internal)
• Typical backup time: ~6 minutes at full load (model-dependent)
• AC outlets: 4 × IEC C13
• Interfaces: USB, RS-232
• Form factor: Tower or 2U rack-tower
• Weight: 15 kg
• Certifications: VFI-SS-111, EN62040-1, EN62040-2, CE

How to use

Install the XANTO 1500 in tower position or convert it to horizontal 19" rack mounting using the supplied 19" angle. Connect critical equipment to the IEC C13 outlets and attach the UPS to the mains supply. Configure parameters and protection functions using the front menu or the included DataWatch software via USB or RS-232. If required, add external battery packs to increase autonomy and, for multi-server environments, install the optional SNMP adapter and RCCMD agent to manage orderly shutdowns and remote monitoring.

Recommendations

For optimal performance, operate the XANTO 1500 within its rated load and periodically test the battery and firmware-managed functions via DataWatch. Use external battery packs if extended runtime is required and enable battery deep-discharge protection to prolong battery life. For networked environments, use the SNMP adapter and RCCMD to automate shutdowns and minimize data loss.
