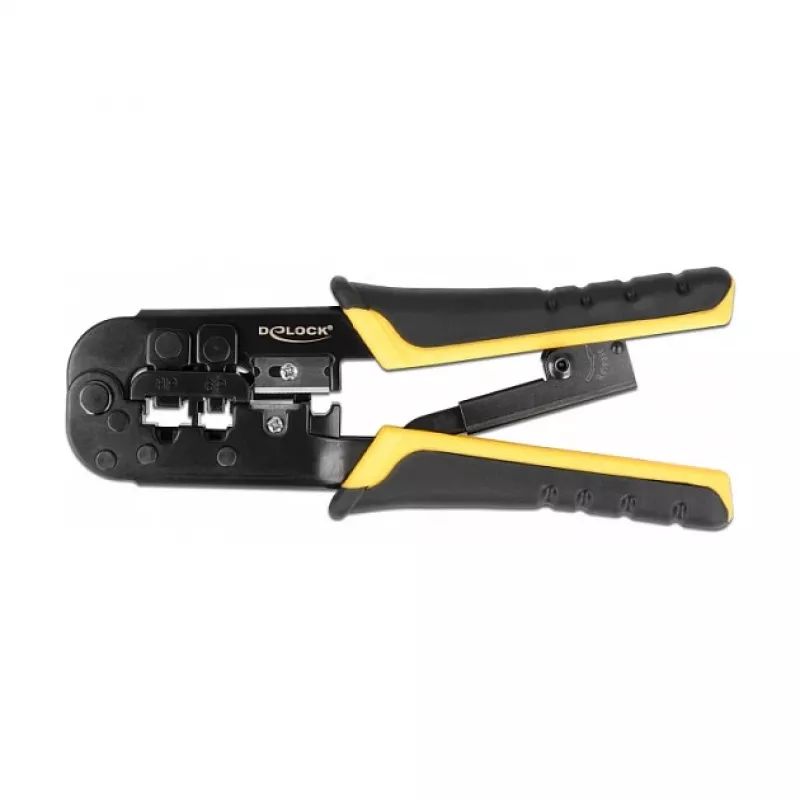

Universeel crimpgereedschap DeLOCK 90520

The Universal Crimping Tool DeLOCK 90520 is a multifunctional hand tool for installing 8P (RJ45) and 6P (RJ12/11) connectors on network and telephone cables. It combines crimping, stripping and cutting functions in a single device and includes an integrated wire stripper for round and flat cables.

Advantages

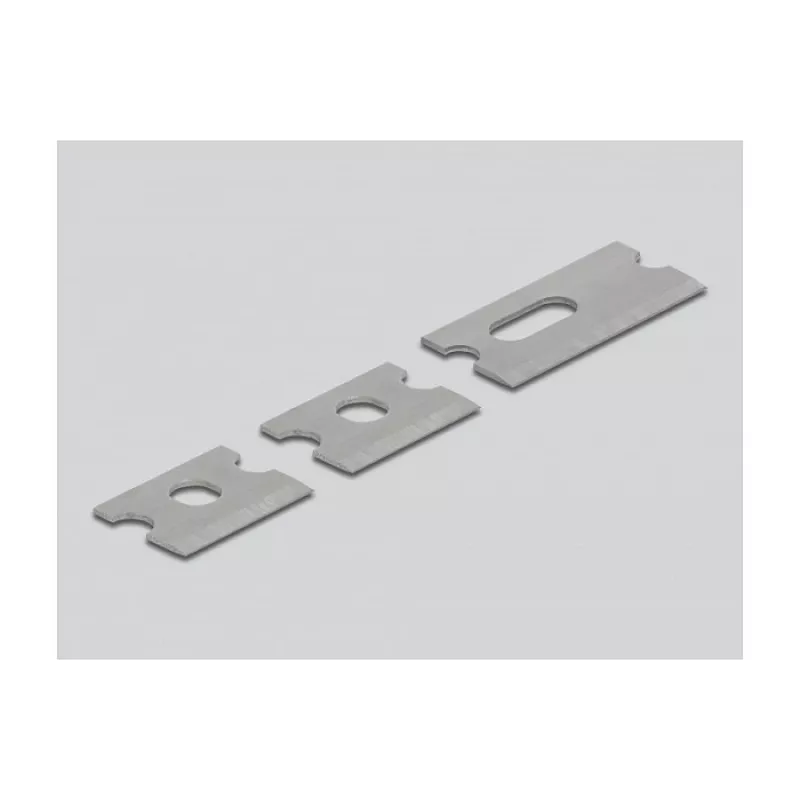

The crimping tool supports both 8P and 6P plugs and provides three integrated blades for reliable stripping and cutting of conductors. It can strip round cables with up to 5.5 mm diameter and flat cables up to 12.7 mm width. The compact dimensions (77 mm × 188 mm × 77 mm) make it easy to handle and transport during installation work.

Suitable for

Key specifications

How to use

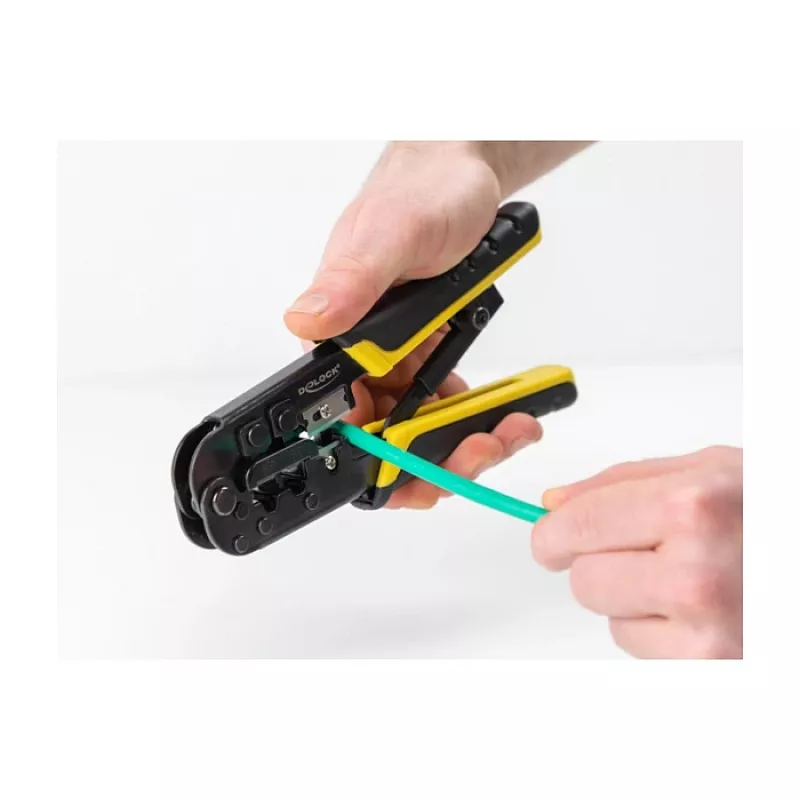

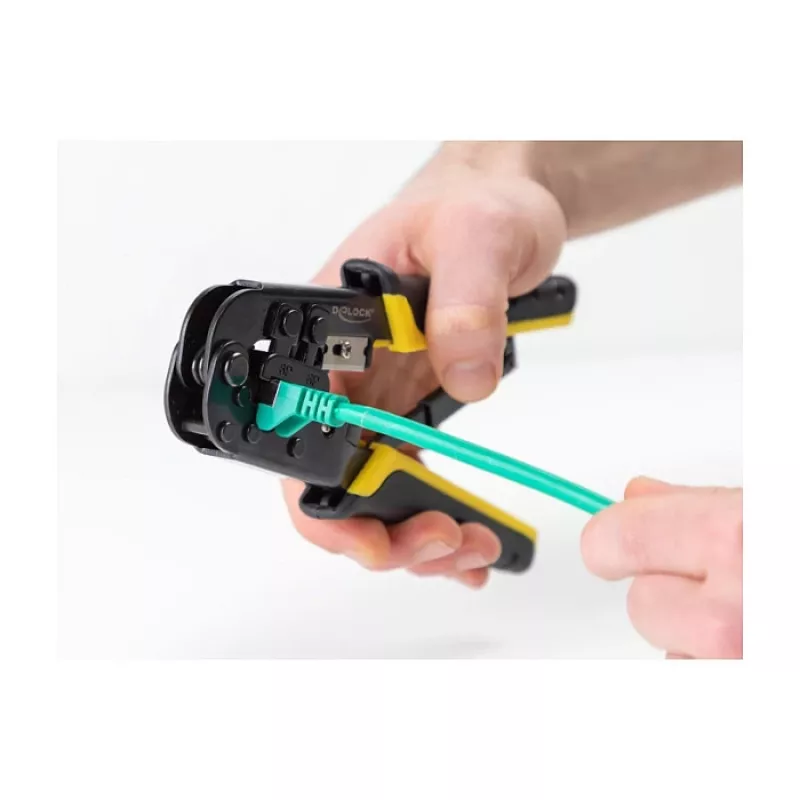

Place the connector on the prepared cable, insert the conductors into the connector contacts according to the wiring standard, then position the connector into the crimping jaw and squeeze the handles firmly to crimp. For stripping, select the appropriate blade area, place the cable in the stripper slot, rotate or pull as needed to remove the jacket, and use the cutting area to trim excess conductors. Follow typical safety precautions: keep fingers away from blades and ensure the tool is used for compatible cable types and sizes.
