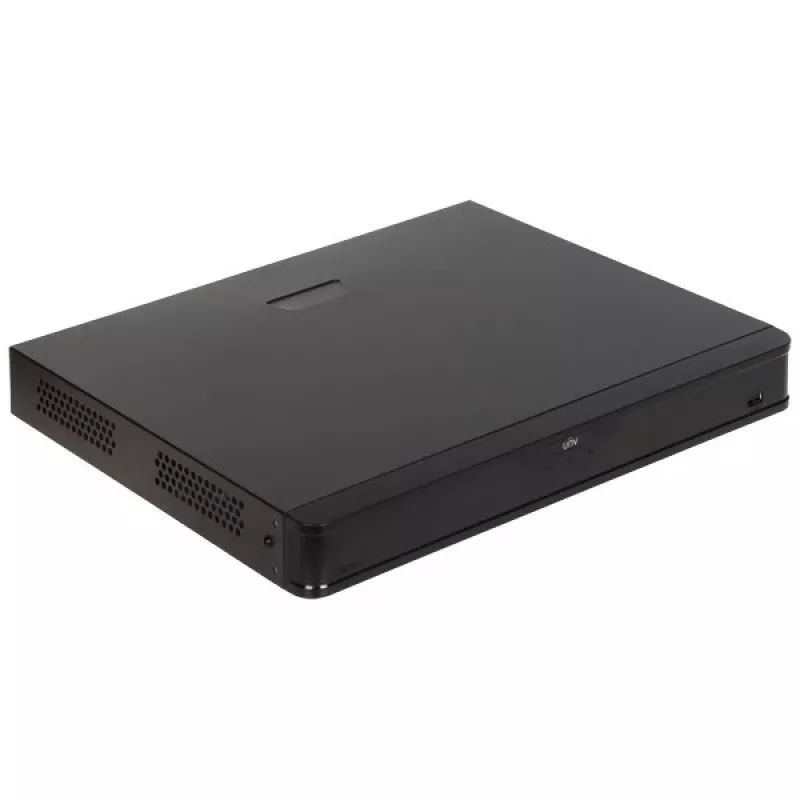

UNIVIEW NVR302-16B-IQ 16-kanaals 4K netwerk-videorecorder

The UNIVIEW NVR302-16B-IQ is a high-performance 16-channel network video recorder (NVR) designed for professional surveillance systems. Supporting up to 8MP (4K) resolution recording, this NVR delivers exceptional video clarity and detail. With H.265+ compression technology, it optimizes storage and bandwidth without compromising quality. Ideal for medium to large-scale security installations, the NVR302-16B-IQ offers reliable 24/7 recording, remote access, and advanced playback features.

Advantages

This NVR provides 16-channel synchronous playback, allowing you to review footage from all cameras simultaneously. The dual SATA interfaces support up to 20TB total storage (10TB per disk), ensuring ample space for long-term recording. With 160 Mbps incoming bandwidth and 64 Mbps outgoing bandwidth, it handles high-resolution video streams efficiently. The device also features HDMI 4K output for crisp local monitoring and includes audio input/output for integrated sound recording.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions
• Government and public facilities

Key specifications

• 16-channel IP video input
• Max recording resolution: 8MP (4K)
• Video compression: H.265+/H.265/H.264+/H.264
• Incoming bandwidth: 160 Mbps
• Outgoing bandwidth: 64 Mbps
• HDMI output: up to 4K (3840x2160)
• VGA output: up to 1080p (1920x1080)
• 2 SATA interfaces, up to 10TB per disk
• 1x RJ45 10/100/1000Mbps Ethernet
• 1x USB 2.0 (front), 1x USB 3.0 (rear)
• Audio: 1x RCA input, 1x RCA output
• Alarm: 4 inputs, 1 output
• Decoding: 2x4K@30fps, 4x5MP@30fps, 8x1080p@30fps, 16x720p@30fps
• Synchronous playback: 16 channels
• Power supply: 12V DC

Recommendations

For optimal performance, pair this NVR with UNIVIEW IP cameras and use high-quality CAT6 cabling. Ensure adequate ventilation and use a UPS for uninterrupted operation. Regular firmware updates are recommended to maintain security and functionality.
