Unmanaged switch Lanview LVN-1U-16PORT-1G 16-poorts 1 Gbit/s ethernet, rackmontage 1U

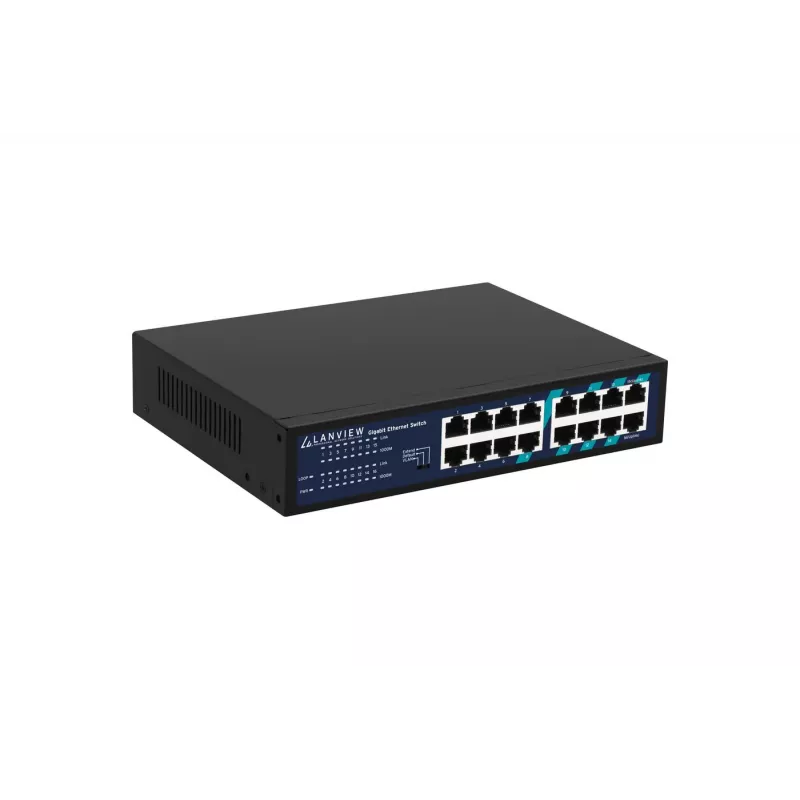

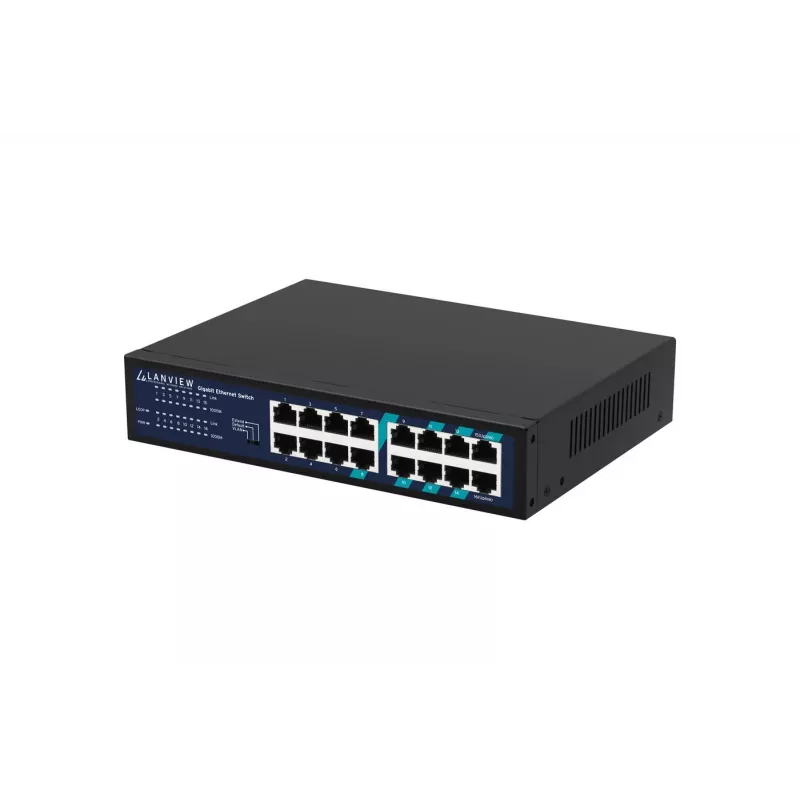

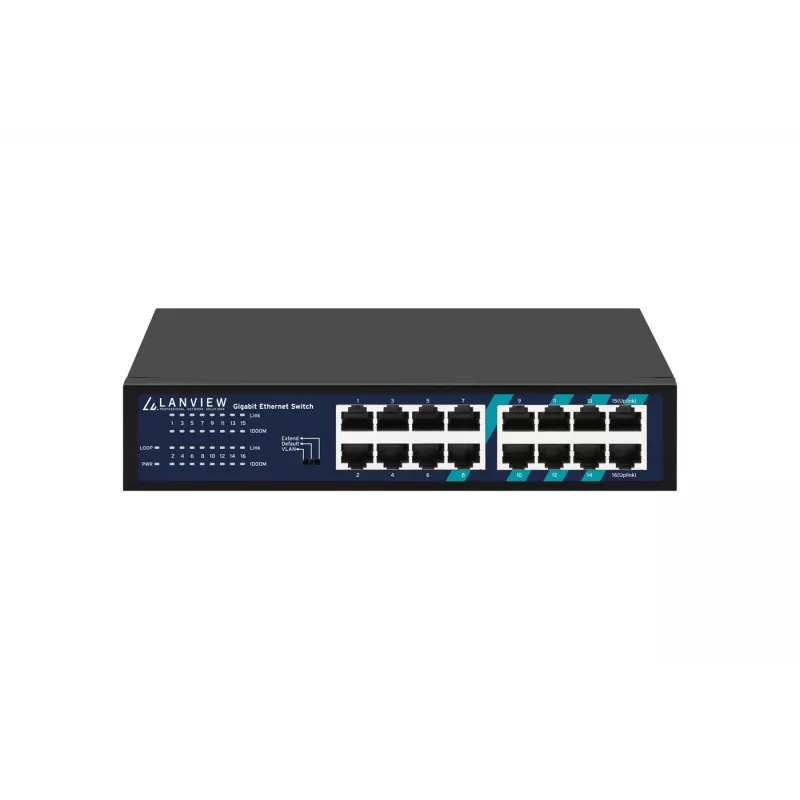

The Lanview LVN-1U-16PORT-1G is an unmanaged 16‑port Gigabit Ethernet switch in a 1U rack‑mount metal chassis. It provides sixteen 10/100/1000 Mbps RJ45 ports with auto-negotiation and automatic MDI/MDIX for straightforward, plug‑and‑play connectivity. Designed for basic network extension in small offices, server cabinets or home labs, the switch offers low-latency frame forwarding and a compact footprint that fits standard 19‑inch racks.

Advantages

This unmanaged switch requires no configuration, enabling quick installation and immediate use. The 1U rack design conserves space in cabinets while delivering full Gigabit bandwidth on all ports. Auto MDI/MDIX eliminates the need for crossover cables and auto-negotiation simplifies device interconnection. The metal housing supports stable mounting and passive cooling suitable for continuous operation in typical office or lab environments.

Suitable for

• Expanding wired networks in small offices or branch locations
• Connecting desktop PCs, printers and network-attached storage (NAS)
• Wiring server racks or compact lab environments
• Providing additional ports for IP cameras, VoIP phones and IoT devices

Key specifications

• Port count: 16 x 10/100/1000 Mbps RJ45 ports

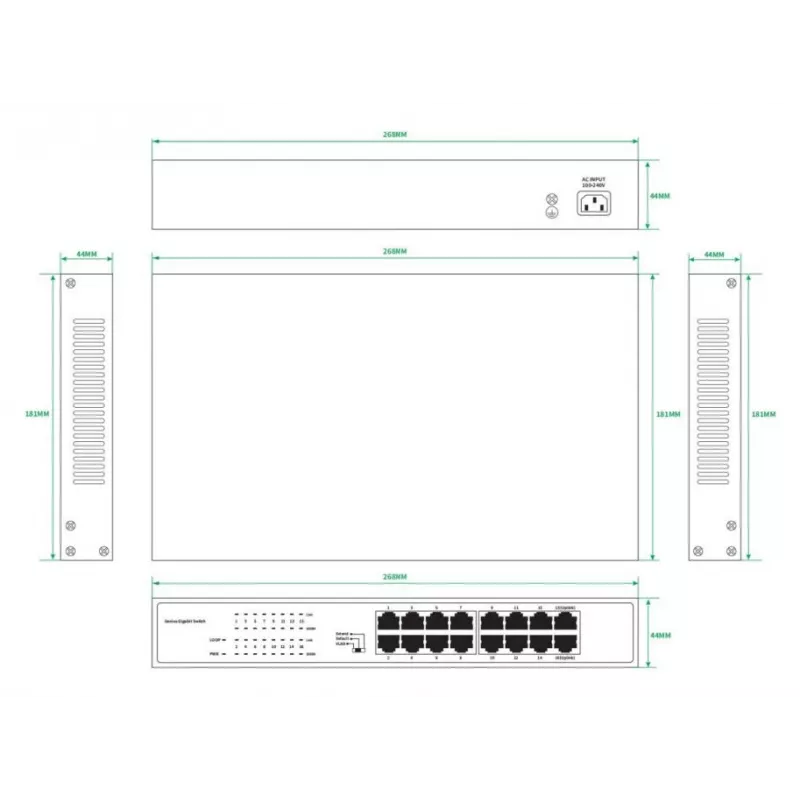

• Form factor: 1U rack-mount metal chassis for 19" racks
• Operation mode: Unmanaged, plug-and-play switching
• Switching method: Store-and-forward with low latency
• Auto features: Auto-negotiation and automatic MDI/MDIX
• Power: Internal or external power supply depending on model (check supplied unit)
• Cooling: Passive ventilation through chassis

How to use

Mount the switch in a standard 19" rack using the included rack ears or place it on a shelf for desktop use. Connect Ethernet cables from network endpoints to the RJ45 ports; the ports will negotiate link speed automatically. Attach the power cord and verify the LED indicators to confirm link and activity on each port. No software setup or management interface is required—connected devices will communicate immediately after physical connection.

Recommendations

Place the switch in a well‑ventilated area and avoid blocking chassis vents to maintain passive cooling efficiency. For optimal network performance, use quality Cat5e/Cat6 cables for Gigabit links and segregate traffic flows when connecting bandwidth‑intensive devices such as NAS or servers. Since the unit is unmanaged, pair it with managed infrastructure if VLAN separation, QoS or advanced monitoring is required.
