Unmanaged Switch PLANET GSD-1222VHP

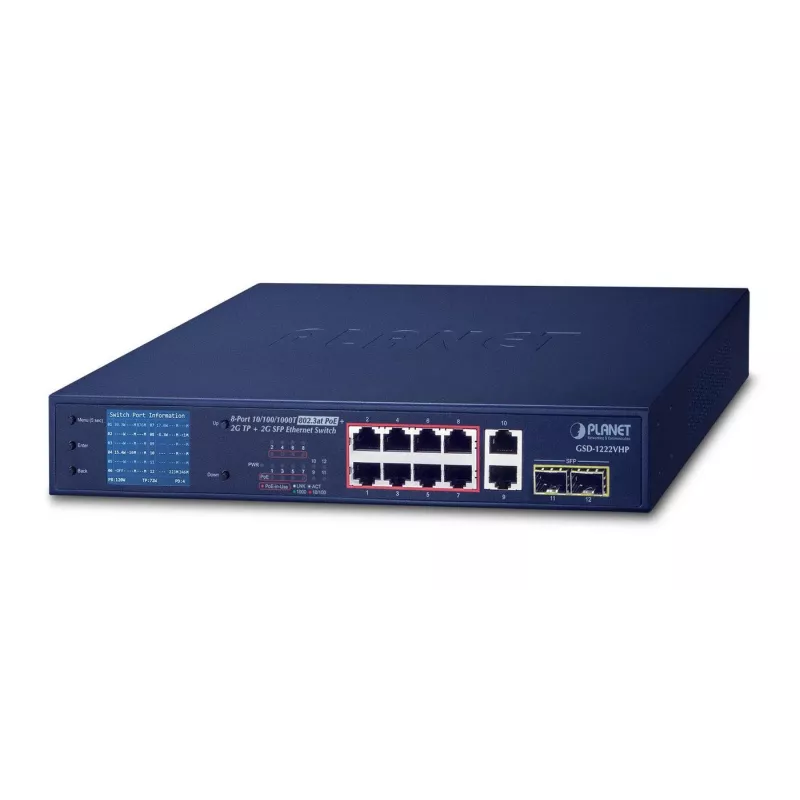

PLANET GSD-1222VHP is an unmanaged Gigabit Ethernet switch with 10 RJ-45 ports that supports Power over Ethernet (PoE+). It provides a total PoE budget of 120 watts, eight 10/100/1000BASE-T ports delivering up to 30 W per port, plus 2 Gigabit TP and 2 Gigabit SFP uplink interfaces. The switch offers non-blocking switching performance, an intuitive front-panel color LCD for status monitoring and management, and a compact form factor suitable for desktop or small rack deployment.

Advantages

The GSD-1222VHP enables quick "plug and watch" installation without requiring a PC or additional software, with an on-device LCD that shows PoE and port status, operation mode, PD checks and maintenance options. It supports three operation modes (Standard, VLAN, Extend) to adapt to surveillance and network segmentation needs, includes extra Gigabit copper and SFP uplinks for flexible extension, and provides ESD and surge protection for stable operation.

Suitable for

• Small to medium IP surveillance deployments with PoE cameras
• Edge switches for hotels, retail, government or enterprise branch sites
• Connections to NVR, NAS or video servers via Gigabit copper or SFP uplinks

Key specifications

• Ports: 8 × 10/100/1000BASE-T PoE+ ports, 2 × Gigabit TP, 2 × Gigabit SFP
• PoE standard: IEEE 802.3af/at (PoE+), 30 W per port, total PoE budget 120 W
• Switching capacity: 24 Gbit/s; MAC table: 8,000 entries
• Operation modes: Standard, VLAN (port-based), Extend (10 Mbps duplex with PoE up to 250 m)
• Protection: Ethernet ESD ±6 kV contact / ±8 kV air, surge immunity ±6 kV
• Auto negotiation: 10/100/1000 Mbps, auto MDI/MDI-X
• Form factor: 1U rack-mountable / desktop; colour: blue; weight: 1.8 kg

How to use

Install the switch on a desktop or mount it in a 1U rack space and connect PoE devices using Category 5e/6 RJ45 cables. Use the front-panel LCD to view PoE allocation, port status and to select the operation mode (Standard, VLAN, Extend) according to your network requirements. Attach uplinks to the Gigabit TP or SFP ports to connect to NVRs, servers or backbone switches; insert compatible 1000BASE-SX/LX SFP transceivers for fiber connections over longer distances.

Recommendations

For IP surveillance, enable VLAN mode to isolate camera traffic and prevent broadcast storms. Use Extend mode only when longer cable runs are required and ensure devices support 10 Mbps duplex operation at extended distances. Verify total PoE power requirements of connected devices stays within the 120 W budget.
