Unmanaged Switch PLANET IGS-1020TF

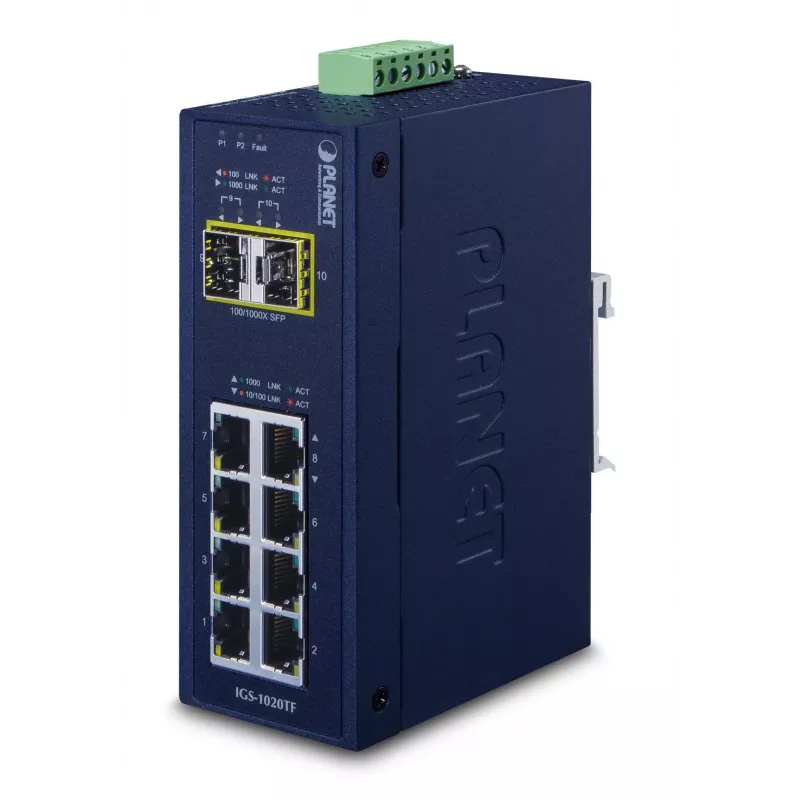

The PLANET IGS-1020TF is an industrial-grade unmanaged Gigabit Ethernet switch designed for reliable network extension in harsh environments. It provides eight 10/100/1000BASE-T RJ45 copper ports and two 100/1000BASE-X SFP fiber slots in an IP30 metal housing with redundant power inputs. The switch operates over a wide temperature range (−40 to 75 °C) and supports DIN-rail or wall mounting for flexible installation in industrial, surveillance, and outdoor cabinet scenarios.

Advantages

The IGS-1020TF offers non-blocking wire-speed switching performance with a switching capacity of 20 Gbit/s and a 4K-entry MAC address table for efficient traffic forwarding. Dual mini-GBIC SFP slots allow selection of 100BASE-FX or 1000BASE-SX/LX transceivers to match required distance and speed. The rugged IP30 metal case and wide operating temperature ensure electromagnetic and environmental resilience, while dual DC/AC power input with automatic failover increases system availability. Energy-saving features including IEEE 802.3az support and Link Down/cable-length power scaling reduce power consumption.

Suitable for

• Industrial automation networks and factory floors
• IP surveillance and remote monitoring systems
• Traffic control cabinets and outdoor network cabinets
• Network uplinks to backbone switches and monitoring centers over fiber

Key specifications

• Ports: 8 × 10/100/1000BASE-T RJ45, 2 × 100/1000BASE-X SFP
• Switching capacity: 20 Gbit/s; MAC table: 4,000 entries
• Power: Dual input 12–48 V DC or 24 V AC (redundant)
• Operating temperature: −40 to 75 °C
• Housing: IP30 rugged metal case; mounting: DIN-rail or wall
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1p, 802.3az
• Weight: 0.54 kg

How to use

Install the IGS-1020TF on a DIN rail or mount it on a wall in a suitable cabinet. Insert SFP transceivers into the mini-GBIC slots if fiber uplink is required and connect fiber cables; otherwise connect devices using Cat5e/6 cables to RJ45 ports. Provide power via the primary power input and connect the redundant power source to the secondary input to enable automatic failover. The unmanaged switch requires no software configuration; it will auto-negotiate link speed and duplex with connected devices and support auto MDI/MDI-X for cable type detection.

Recommendations

Use appropriate SFP transceivers (100BASE-FX or 1000BASE-SX/LX) to match distance requirements, ensure proper grounding and surge protection in electrically noisy environments, and connect a redundant power source to maintain high availability. For optimal energy savings, use shorter cable runs when possible and enable IEEE 802.3az-compatible endpoints.
