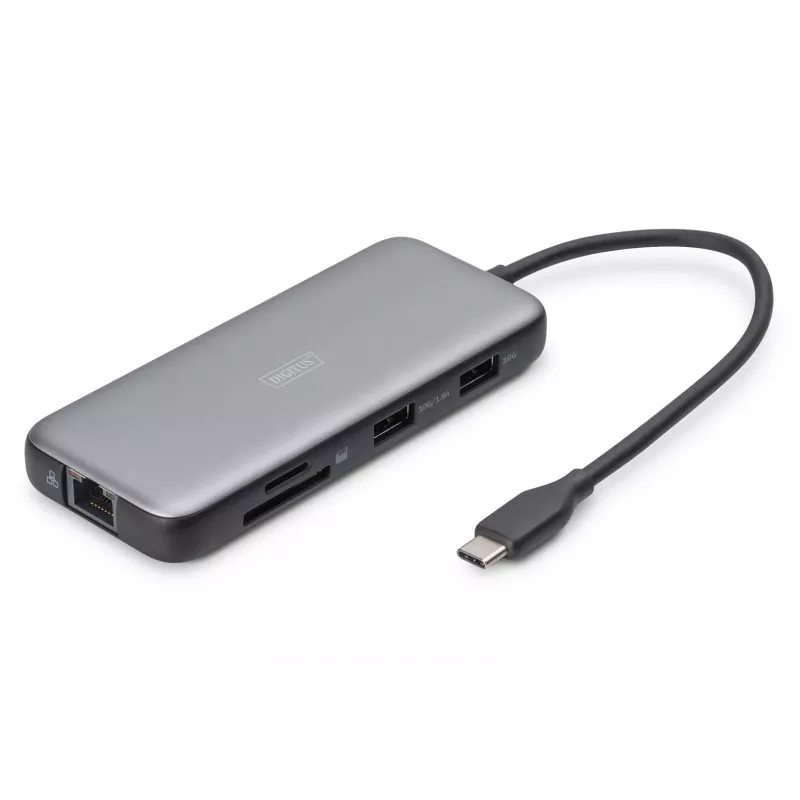

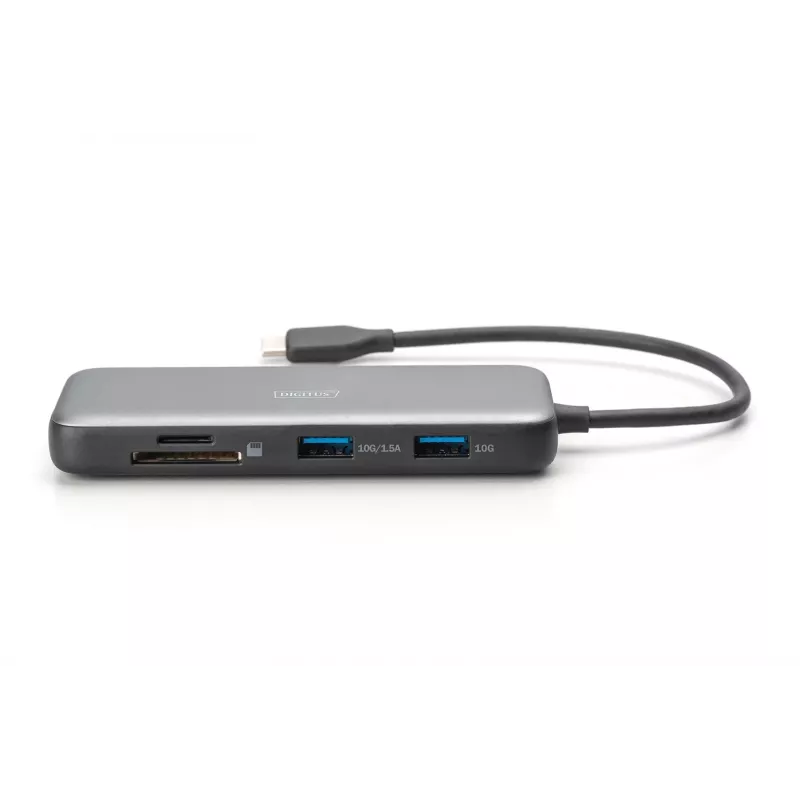

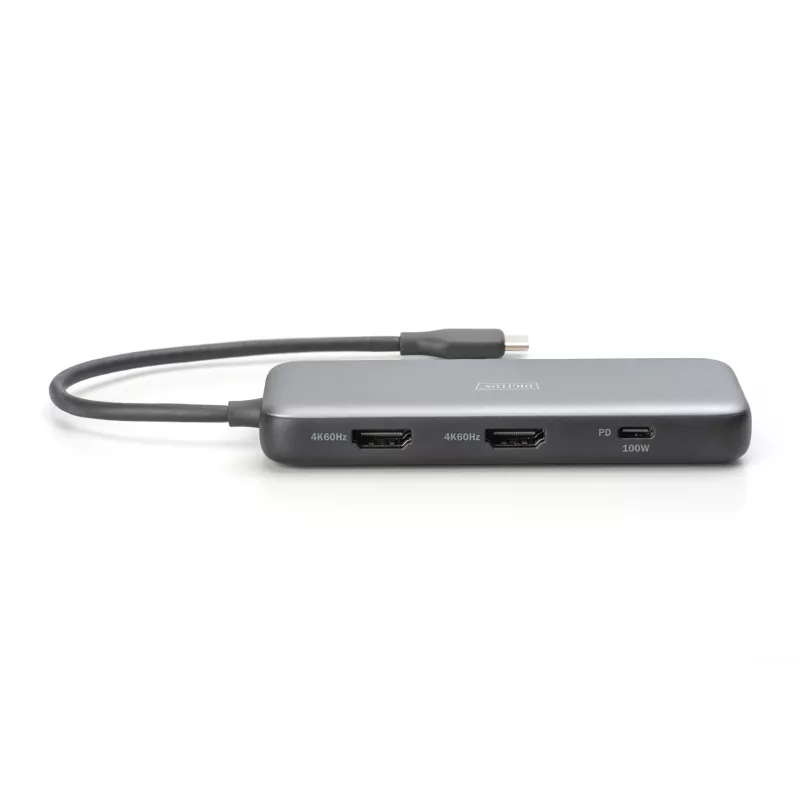

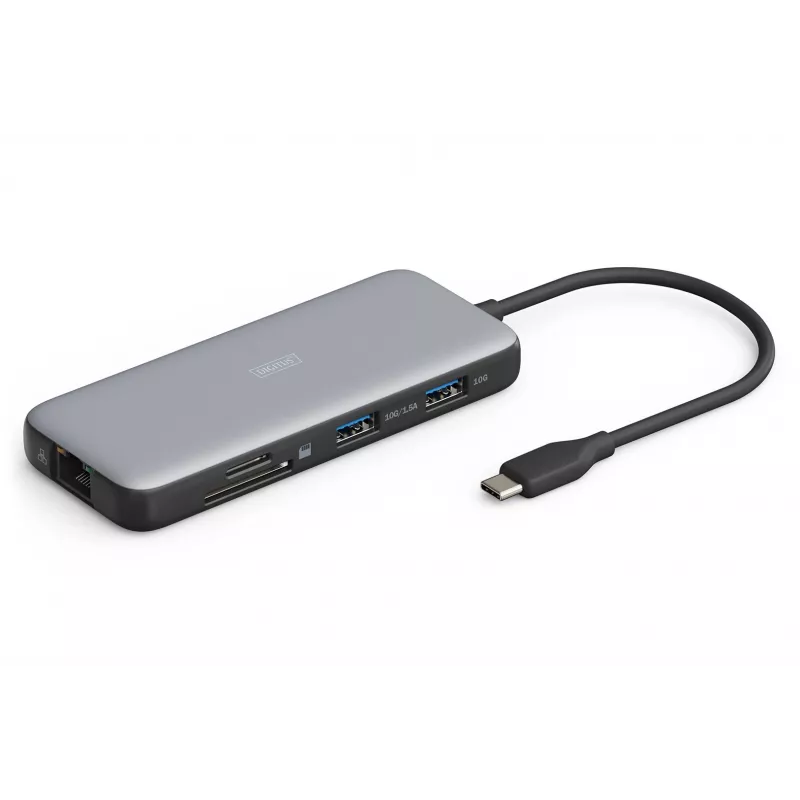

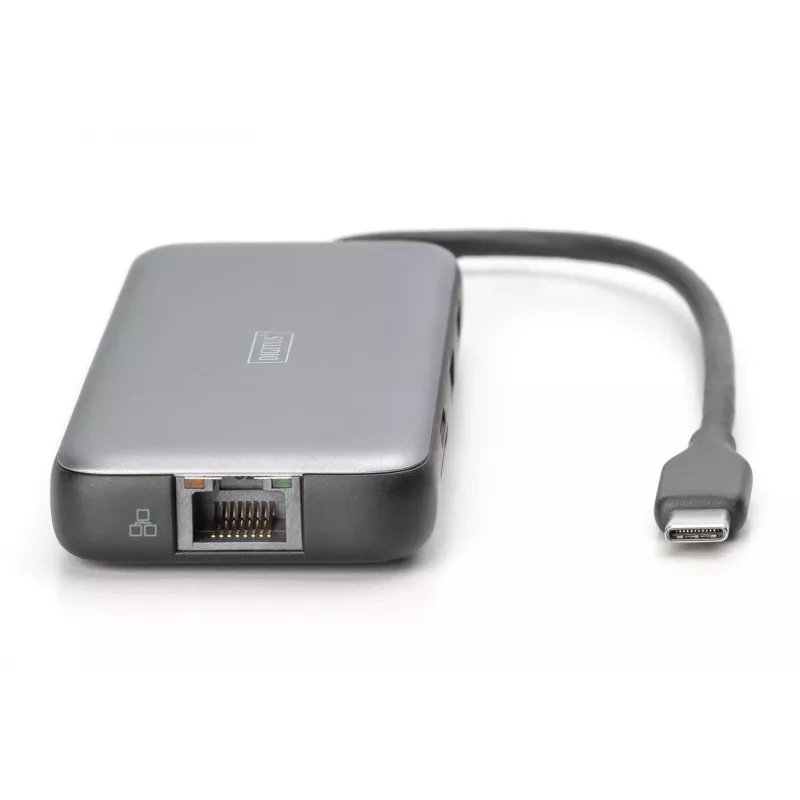

USB-C-dockingstation Digitus DA-70915 8-voudig 100W Power Delivery

Expand your notebook with the USB-C docking station Digitus DA-70915. This 8-port docking station provides two HDMI outputs supporting up to 4K/60Hz, two USB-A 3.2 Gen 2 ports (10 Gbit/s) including one with 1.5A charging, a Gigabit Ethernet (RJ45) port, SD and MicroSD card readers, and a USB-C Power Delivery port with up to 100W PD 3.0 and Fast Role Swap (FRS). An integrated 20 cm USB-C cable and support for DisplayPort Alt Mode (DP 1.4, backward compatible with DP 1.2) enable simple, compact connection and high-quality video output.

Advantages

The docking station enables connection of two external monitors at 4K/60Hz in either MST (extended desktop) or SST (mirroring) modes depending on host OS compatibility, allowing efficient multitasking. High-speed USB-A 3.2 Gen 2 ports provide fast data transfers up to 10 Gbit/s. The integrated Gigabit Ethernet port offers stable wired network access while SD/MicroSD readers support quick media transfers. USB-C Power Delivery up to 100W with Fast Role Swap maintains power to the notebook without interrupting the docking connection when the charger is unplugged.

Suitable for

• Remote and hybrid workstations requiring multiple external displays
• Photo and video transfer from SD / MicroSD cards
• Users who need wired LAN access for stable network performance
• Notebooks and laptops with a USB-C / Thunderbolt port supporting DP Alt Mode

Key specifications

• Model: Digitus DA-70915
• Ports: 2× HDMI (4K/60Hz), 2× USB-A 3.2 Gen 2 (10 Gbit/s, one with 1.5A charging), 1× RJ45 Gigabit Ethernet, SD + MicroSD card readers, 1× USB-C Power Delivery (up to 100W PD 3.0)
• Video modes: Dual 4K/60Hz in MST (expand) and SST (mirror) depending on OS
• DisplayPort Alternate Mode: DP 1.4, backward compatible with DP 1.2
• Integrated cable: 20 cm USB-C
• Compatibility: Windows, macOS, Linux, ChromeOS, iPadOS, iOS, Android (host support for DP Alt Mode and specific modes varies)
• Ethernet speeds: 10/100/1000 Mbit/s
• Card reader transfer speed: up to 104 MB/s
• Product colour: Grey, Black
• Weight: 0.106 kg

How to use

Connect the integrated USB-C cable to a compatible notebook USB-C or Thunderbolt port that supports DisplayPort Alternate Mode. Attach external monitors to the two HDMI ports and select MST or SST mode via the host operating system or display settings to set extended or mirrored displays. Insert SD or MicroSD cards into the card readers for data transfer, and connect network cables to the RJ45 port for wired internet access. If required, connect the notebook charger to the USB-C Power Delivery port to provide up to 100W charging while maintaining the dock connection.

Recommendations

For dual 4K/60Hz in MST mode, verify that the host system and its USB-C/Thunderbolt port support DisplayPort 1.4 MST. Use a quality USB-C power adapter that provides sufficient wattage for your notebook to ensure stable charging and enable Fast Role Swap functionality.
