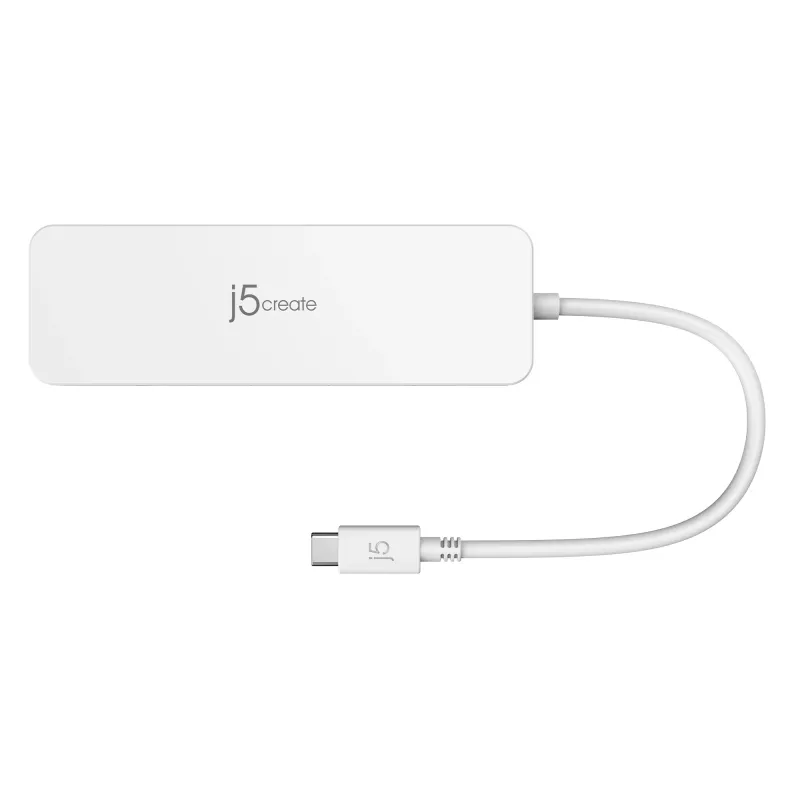

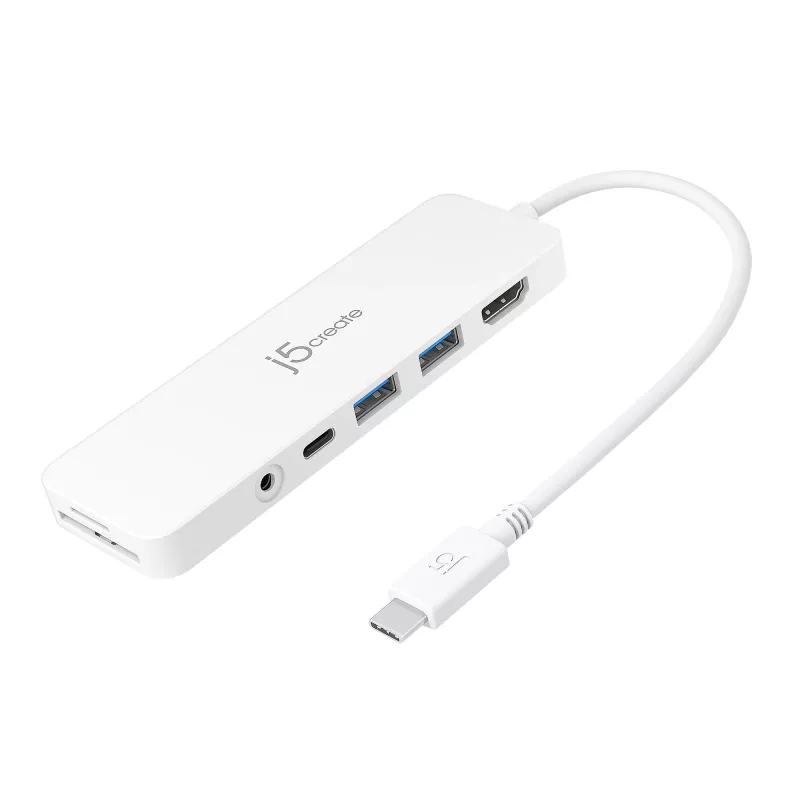

USB-C multi-adapter j5create JCD373-N 60W Power Delivery 4K

The j5create JCD373-N USB-C Multi Adapter is a compact multi-port hub that expands connectivity for laptops and other USB-C® host devices. It includes two USB 3.1 Type-A ports for peripherals or storage, an HDMI™ port that supports screen mirroring or extension up to 4K UHD at 30 Hz (or Full HD 1080p), a USB-C® Power Delivery 3.0 port with up to 60W charging, SD™ and microSD™ card slots, and a combined audio/mic jack. The adapter is lightweight and designed for portable use, offering high-speed data transfer up to 5 Gbps.

Advantages

This multi adapter provides multiple interfaces in a pocket-sized unit, enabling simultaneous connection of peripherals, external displays, memory cards and power. High-speed USB 3.1 data transfer (up to 5 Gbps) and 4K HDMI video output simplify media and file workflows. The integrated USB-C Power Delivery port supports up to 60W pass-through charging, allowing the host device to be powered while using the hub. Built-in SD and microSD card slots and a 3.5 mm audio/mic combo jack increase compatibility with common accessories.

Suitable for

• Connecting keyboard, mouse and USB flash drives
• Extending or mirroring laptop display to HDTV, monitor or projector
• Transferring photos and files from SD and microSD cards
• Charging a USB-C laptop or device while using multiple peripherals (up to 60W)

Key specifications

• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
• Data transfer speed: up to 5 Gbps (USB 3.1)
• Power Delivery: USB-C PD 3.0, up to 60W
• Video output: HDMI up to 4K UHD @ 30 Hz (also supports 1080p)

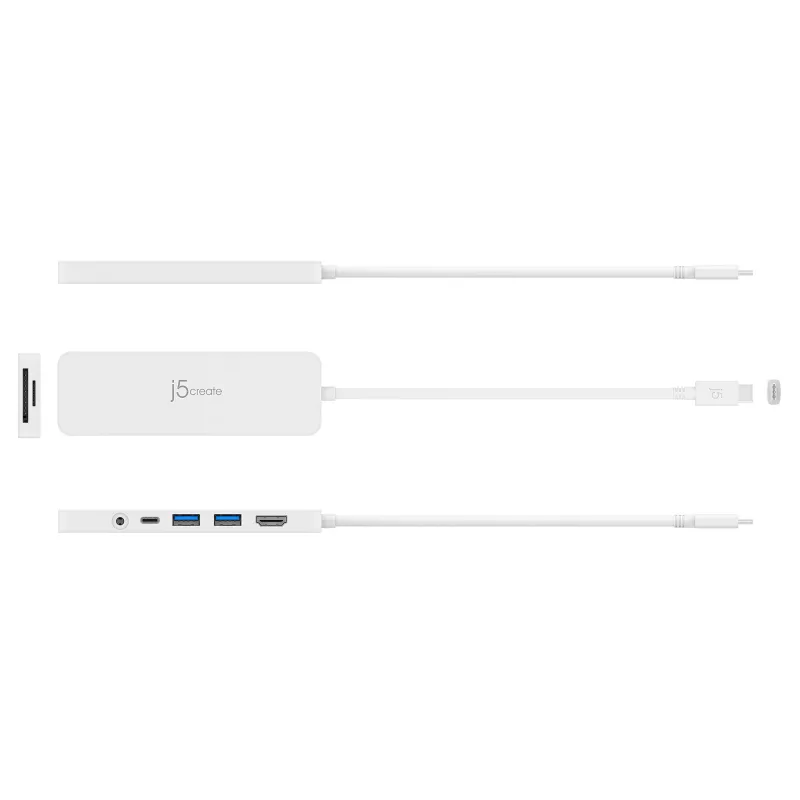

• Ports: 2 × USB 3.1 Type-A, 1 × USB-C PD, 1 × HDMI, SD and microSD card slots, 3.5 mm audio/mic combo jack
• Weight: 0.0515 kg
• Colour: White

How to use

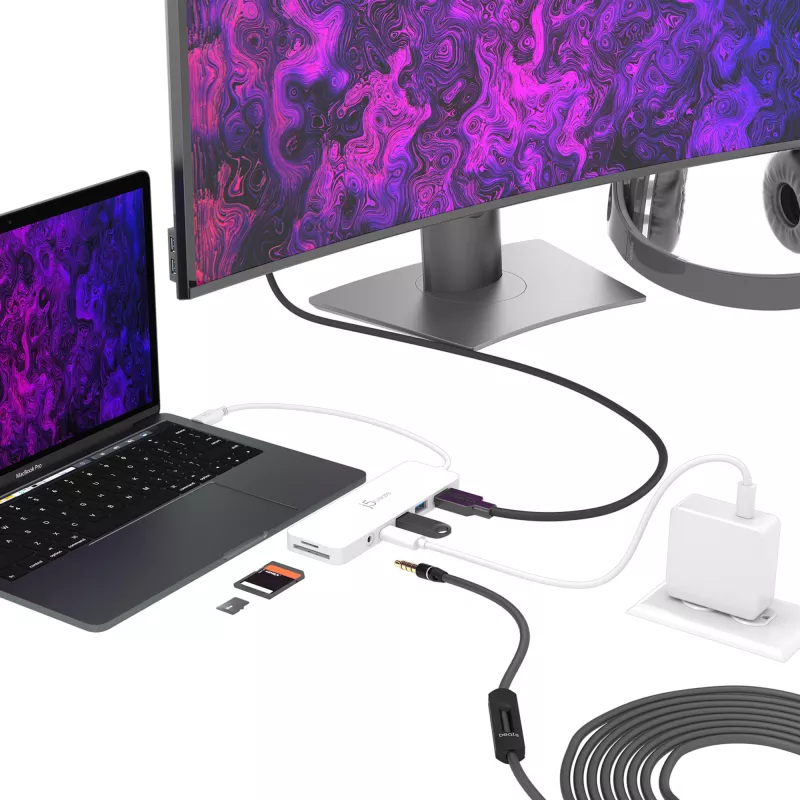

Connect the adapter’s USB-C plug to your laptop or compatible host device. Attach USB peripherals to the Type-A ports, insert SD or microSD cards into the respective slots, and connect an HDMI cable to an external display to mirror or extend the screen. If you need to charge the host device while using the hub, plug a USB-C power adapter into the adapter’s USB-C Power Delivery port (supports up to 60W). Use the 3.5 mm audio/mic jack for headphones or external speakers as required.

Recommendations

Use a USB-C power adapter rated for the appropriate wattage to ensure stable charging. For the best video performance at 4K UHD @ 30 Hz, use a high-quality HDMI cable and confirm the host device supports 4K output over USB-C. Do not force cards or connectors into slots; insert and remove gently to avoid damage.
