USB-hub DeLOCK 62868

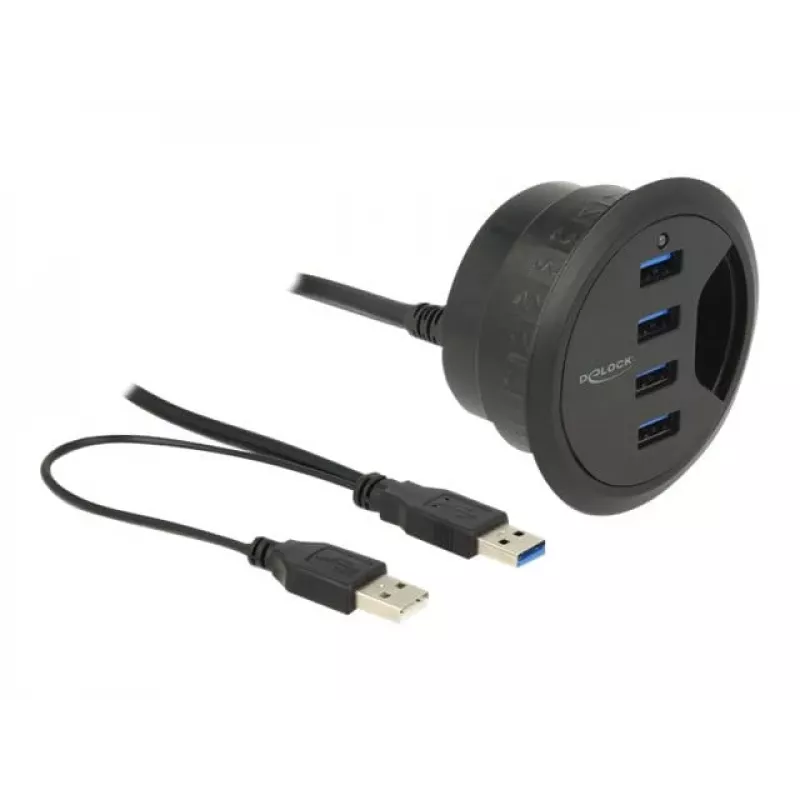

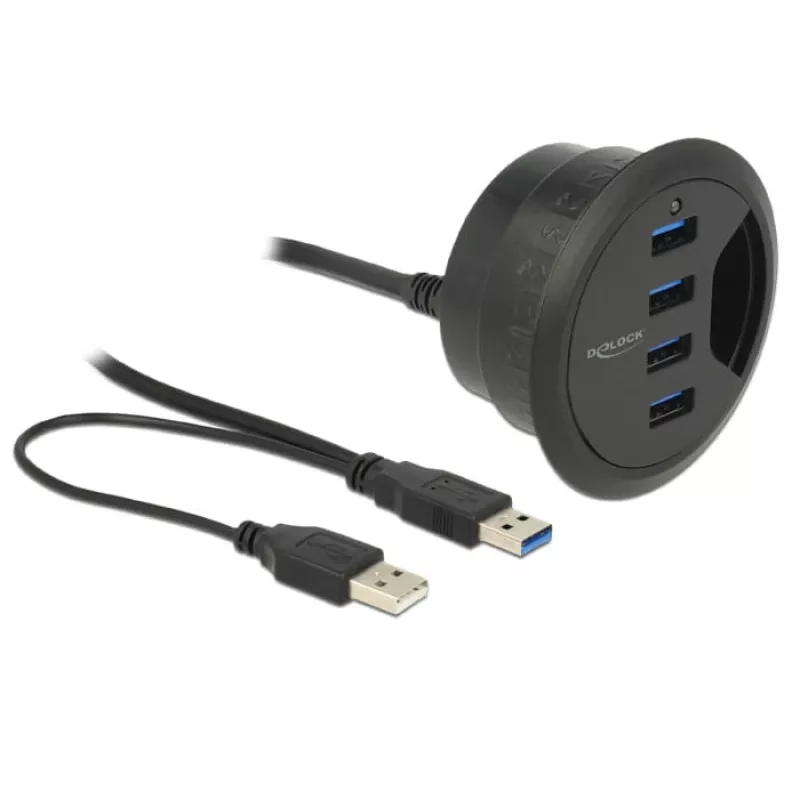

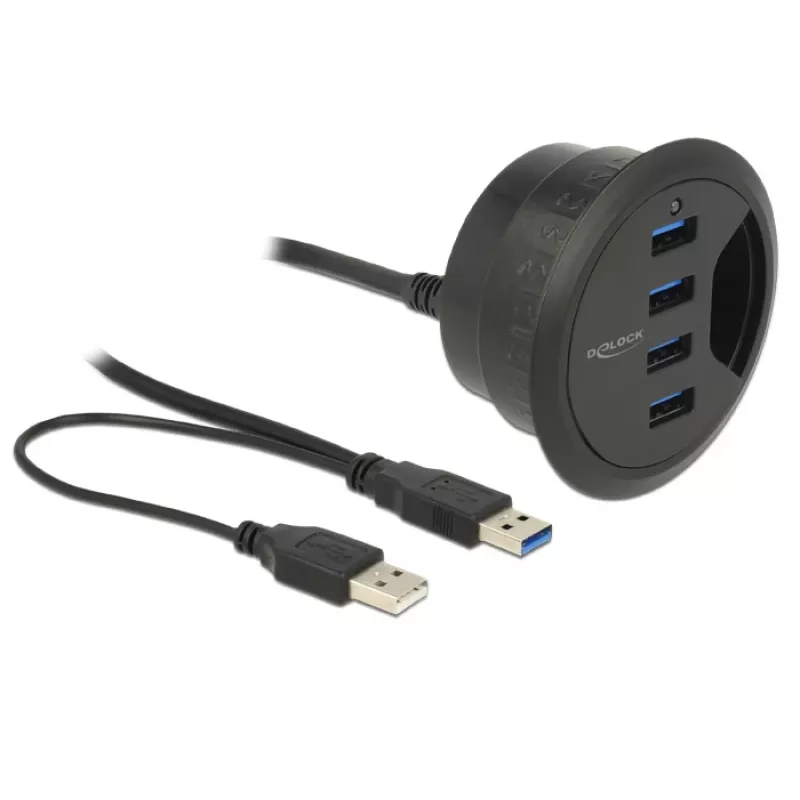

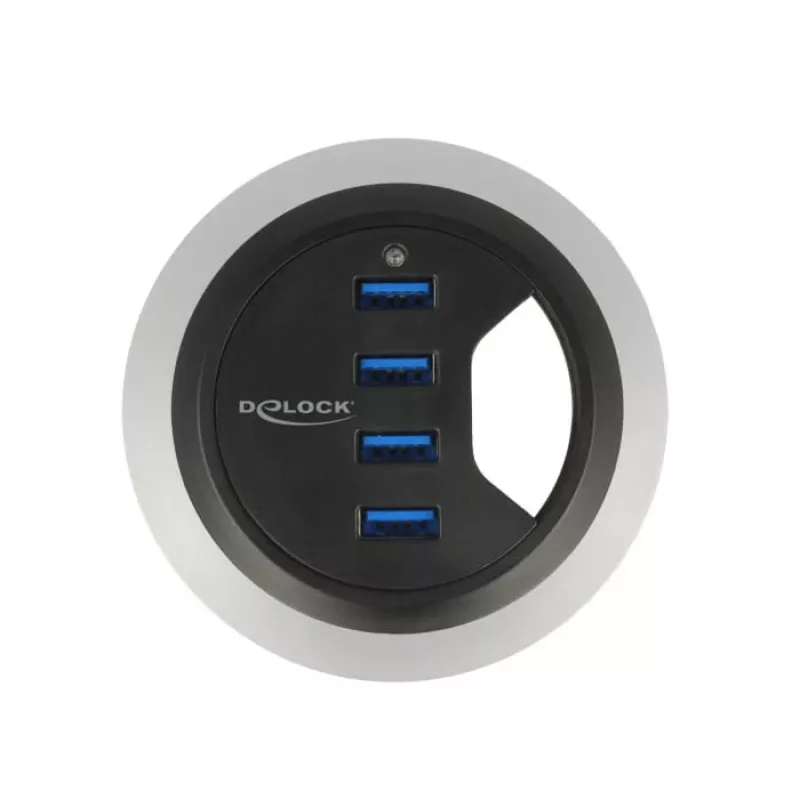

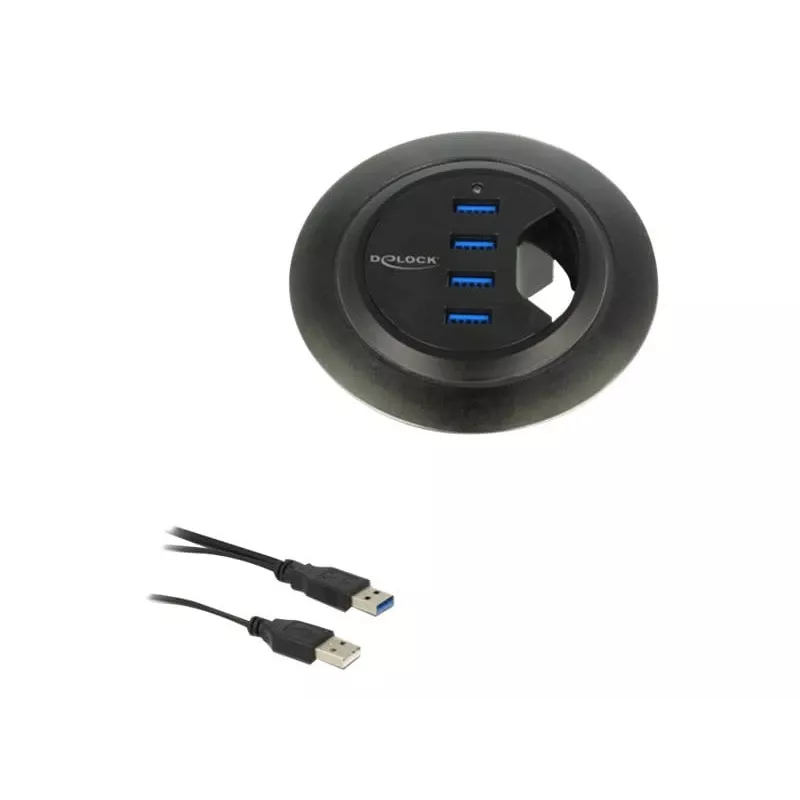

The DeLOCK 62868 is a recessed USB hub designed to be mounted into an existing desk cut-out with a diameter of 60 mm or 80 mm. It routes cables for monitor, keyboard and mouse while providing four USB Type-A ports. The hub uses one USB 3.2 Gen 1 (3.1 Gen 1) Type-A male and one USB 2.0 Type-A male for data transfer and power; both cables are connected and the maximum distance between the free connectors is 20 cm.

Advantages

This compact hub supports high-speed data transfer up to 5000 Mbit/s via the USB 3.2 Gen 1 host interface and offers four downstream USB Type-A ports for connecting peripherals. Its installation into a 60 mm or 80 mm desk cut-out keeps cables organised and accessible, and the integrated USB power source removes the need for an external power adapter. The unit is compatible with common desktop systems, including Windows 10 and Mac OS X 10.9.

Suitable for

• Expanding USB Type-A connectivity at a desk or workstation

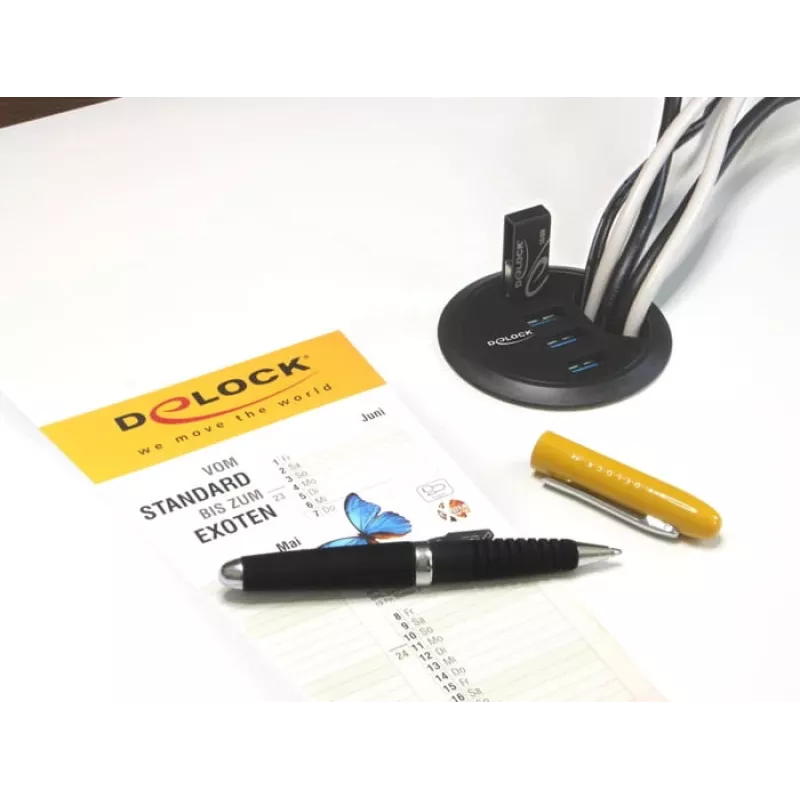

• Routing monitor, keyboard and mouse cables through a desk grommet
• Connecting external drives, peripherals and input devices

Key specifications

• Model: DeLOCK 62868
• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A (plus one USB 2.0 Type-A)
• Downstream ports: 4 × USB Type-A
• Maximum data rate: up to 5000 Mbit/s (USB 3.2 Gen 1)
• Mounting cut-out diameter: 60 mm or 80 mm
• Colour: Black

How to use

Insert the hub into an existing desk cut-out of 60 mm or 80 mm and secure it according to the desk’s mounting method. Connect the hub to the host using the supplied USB 3.2 Gen 1 Type-A male and the USB 2.0 Type-A male cables; note that the two cables are attached to each other and the free ends must remain within 20 cm of each other. After connection, plug your USB Type-A peripherals into the four available ports. The hub draws power from the host USB connection and requires no external power supply.

Recommendations

For reliable high-speed transfers, connect high-bandwidth devices to the USB 3.2 Gen 1 host cable. Keep the two host cable ends within the specified 20 cm distance and avoid placing the hub in locations where the attached cables would be strained or sharply bent.
