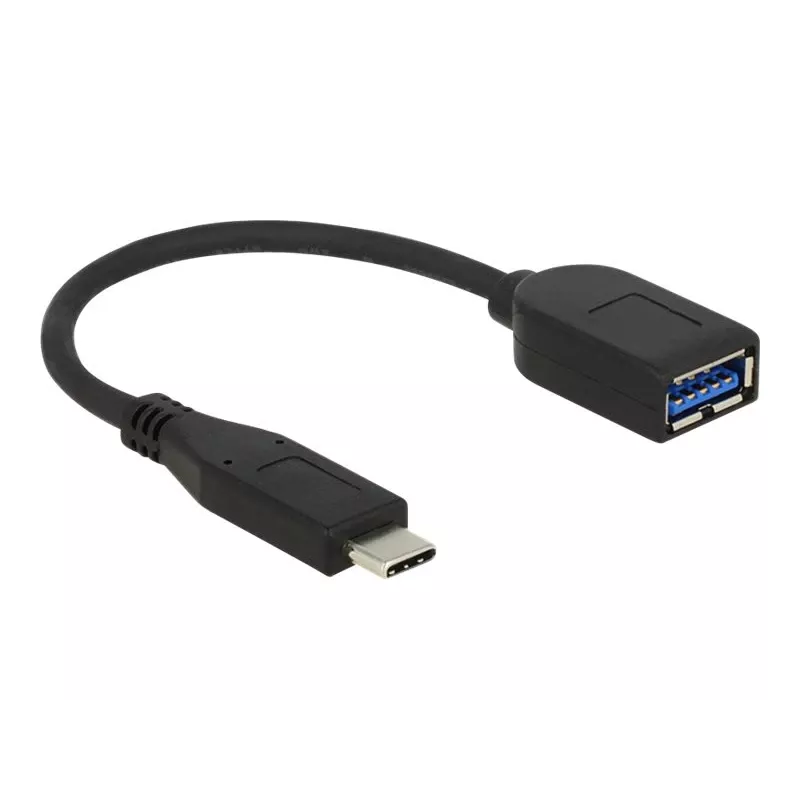

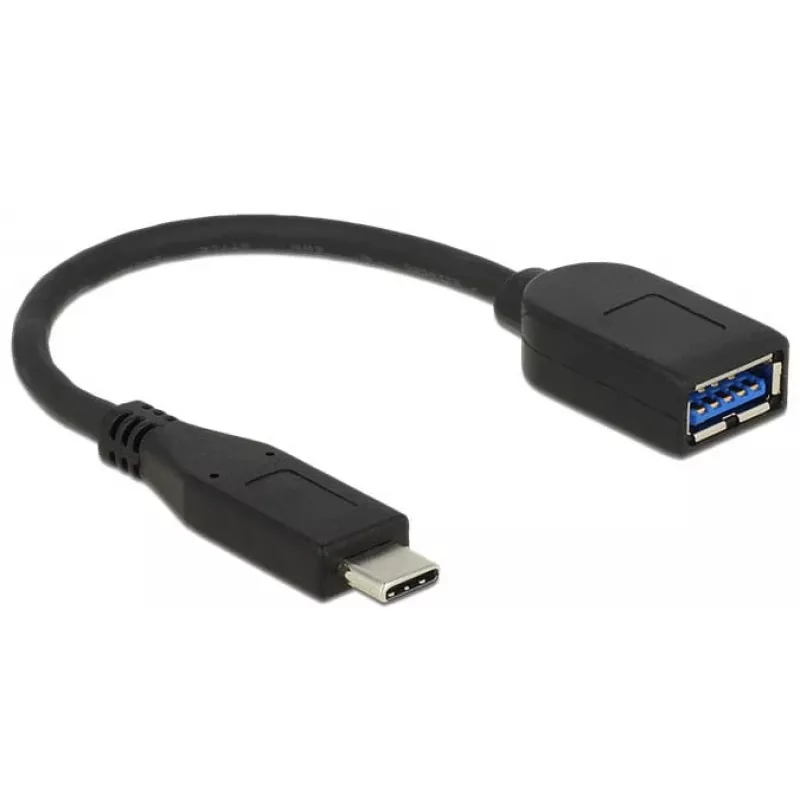

USB-kabel DeLOCK USB 3.1 Gen 2 Type-C/Type-A 0,1 m zwart

This USB adapter by Delock enables connection between devices with a USB Type-A port — for example a USB stick, mouse or external HDD — and a PC or laptop equipped with a USB Type-C port. The cable is approx. 0.1 m long and supports SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) data transfer. The connectors are gold-plated and the cable uses coaxial conductors for interference-reduced high-speed transmission.

Advantages

The adapter supports SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) for fast data transfer and uses 4x coaxial conductors for the SuperSpeed lines plus a twisted pair for USB 2.0. It has a compact 0.1 m length with ca. 4 mm cable diameter, gold-plated connectors for improved contact and a 5.1 kΩ identification resistor. The small form factor is suitable for direct connection to laptops and PCs with USB Type-C ports.

Suitable for

• Connecting USB Type-A storage devices (USB sticks, external HDD/SSD) to USB Type-C hosts
• Attaching USB Type-A peripherals such as mice or keyboards to laptops with Type-C ports
• Short, high-speed data transfer links where a compact cable is required

Key specifications

• Connectors: USB Type-C male (SuperSpeed 10 Gbps) to USB Type-A female (SuperSpeed 10 Gbps)
• Standard: USB 3.1 Gen 2 (SuperSpeed USB 10 Gbps)
• Cable length: approx. 0.1 m (length incl. connector: ca. 10 cm)
• Cable diameter: approx. 4 mm
• Conductors: 4x coaxial for SuperSpeed, 1x twisted pair for USB 2.0
• Cable gauge: 32 AWG data lines, 26 AWG power line
• Resistor: 5.1 kΩ
• Connector plating: gold
• Colour: black

How to use

Insert the USB Type-C male connector into a free USB Type-C port on your PC or laptop (host). Plug the USB Type-A device into the Type-A female connector on the adapter. The adapter functions as a passive cable for data and power within the limits of USB specifications; no drivers are required when both host and device support USB standards used.

Recommendations

The adapter is intended for short connections (approx. 0.1 m). For longer distances or for use cases requiring higher power delivery or alternate modes (e.g., video over USB-C), use a dedicated cable or adapter matched to those requirements.
