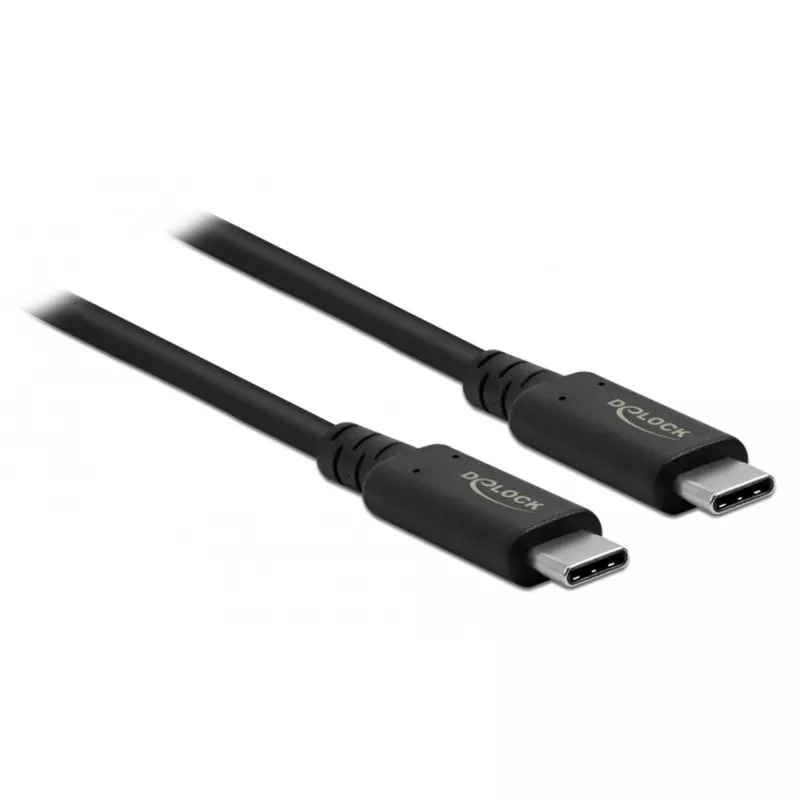

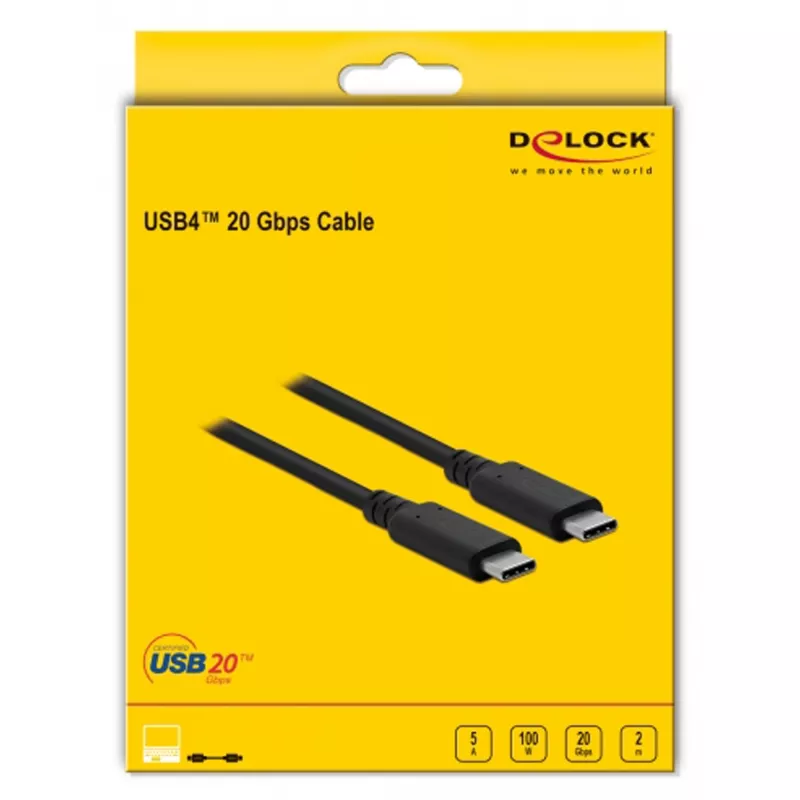

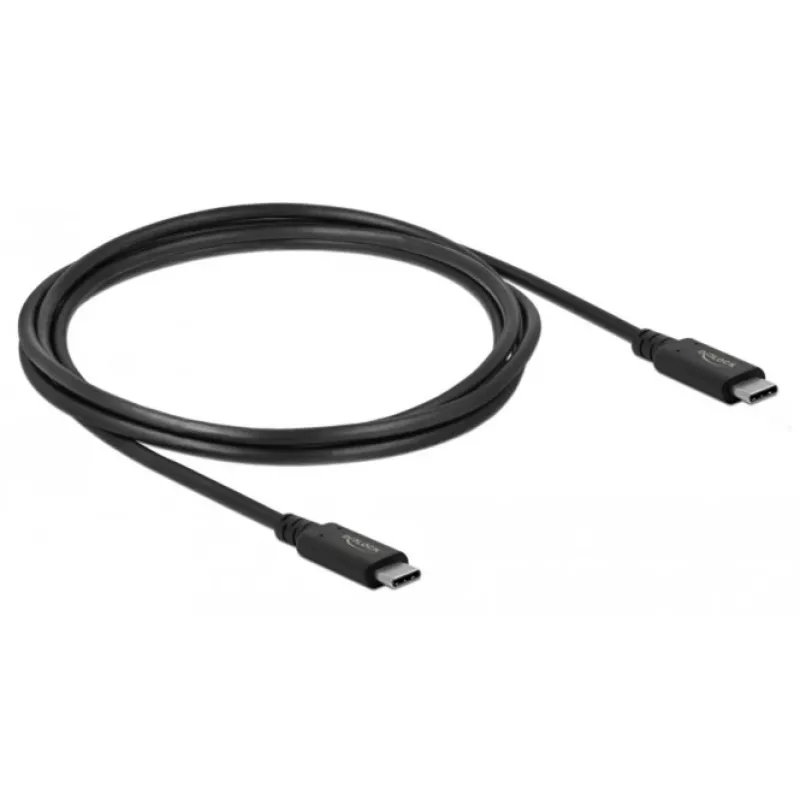

USB-kabel DeLOCK USB4 20 Gbps 2 m

This Delock USB4™ cable allows connection of devices such as smartphones, monitors, external enclosures and docking stations to a PC or laptop via a USB Type-C™ or Thunderbolt™ 3 port. It carries USB, DisplayPort and PCI Express data and is compatible with older USB standards.

Advantages

The cable supports USB4™ data rates up to 20 Gbps while remaining backward compatible with USB 3.2 and USB 2.0 devices. It provides DisplayPort Alternate Mode (DP 1.4a and DP 2.0) for connecting DisplayPort monitors up to 4K at 60 Hz. In addition, it supports USB Power Delivery 3.0 for power delivery up to 100 W (20 V / 5 A).

Key specifications

• Standard: USB4™
• Maximum data transfer rate: 20 Gbps
• Compatibility: USB 3.2, USB 2.0, Thunderbolt™ 3
• Display alternate mode: DisplayPort 1.4a and DisplayPort 2.0
• Maximum display resolution supported: up to 4K (3840×2160) at 60 Hz
• Power delivery: USB PD 3.0, up to 100 W (20 V / 5 A)
• Connector type: USB Type-C™

How to use

Connect one end of the USB Type-C™ cable to the USB4™ or Thunderbolt™ 3 port of your PC or laptop and the other end to the compatible device such as a monitor, smartphone, external enclosure or docking station. For video output, ensure the connected monitor supports DisplayPort over USB-C. For charging or powering devices, use a power source that supports USB Power Delivery and the required wattage.

Recommendations

When using high-resolution video or high power delivery, ensure both connected devices support the necessary USB4™, DisplayPort and PD profiles to achieve the specified data rate, resolution and power. Use certified power adapters and compatible devices for safe operation.
