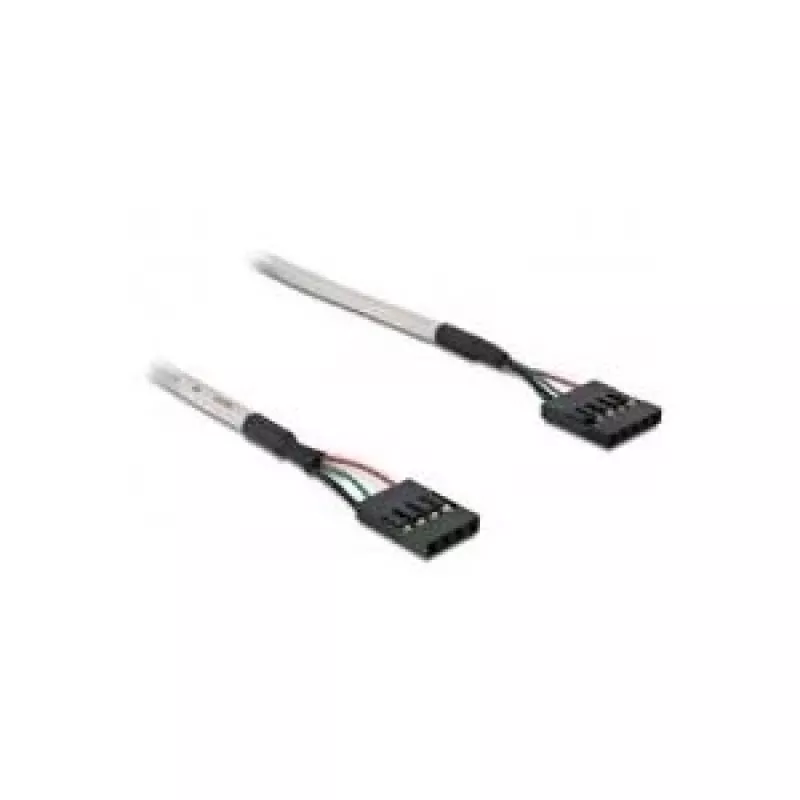

USB-pinheader 4-pins/5-pins FM/FM DeLOCK 82439

This USB pinheader cable is designed to connect internal USB ports to a motherboard via a 4‑pin or 5‑pin female/male pinheader. With a 2.54 mm pitch and 0.4 m cable length, it allows devices such as multi‑panels or front‑panel USB modules to be routed and connected to the mainboard using the USB pinheader connector.

Advantages

The Delock USB Pinheader 4pin/5pin FM (0.4 m) offers a compact, straightforward solution for internal USB routing. Its standard 2.54 mm pitch ensures compatibility with common motherboard pinheaders, and the cable length provides sufficient reach inside most PC cases while keeping wiring tidy.

Suitable for

• Connecting internal USB front panels to motherboard pinheaders
• Routing USB connections from multi‑panels or internal USB modules
• Replacing or extending short internal USB header cables

Key specifications

• Brand: DELOCK
• Model / MPN: 82439
• EAN: 4043619824397
• Connector: USB pinheader (FM) 4‑pin / 5‑pin compatible
• Pitch: 2.54 mm
• Cable length: 0.4 m
• Category: USB data cables

How to use

Identify the motherboard USB pinheader and the internal device connector. Align the 4‑pin/5‑pin USB pinheader plug with the board header according to the keyed orientation and press gently to seat the connector. Route the 0.4 m cable inside the case to avoid obstructing fans or other components and secure with cable ties if needed.

Recommendations

Ensure the system is powered off before connecting or disconnecting internal USB pinheader cables. Verify pin alignment and avoid forcing the connector to prevent bent pins. Use the cable length to route wiring neatly and keep it clear of moving parts.
