USB-pinheader-adapter DeLOCK 41763

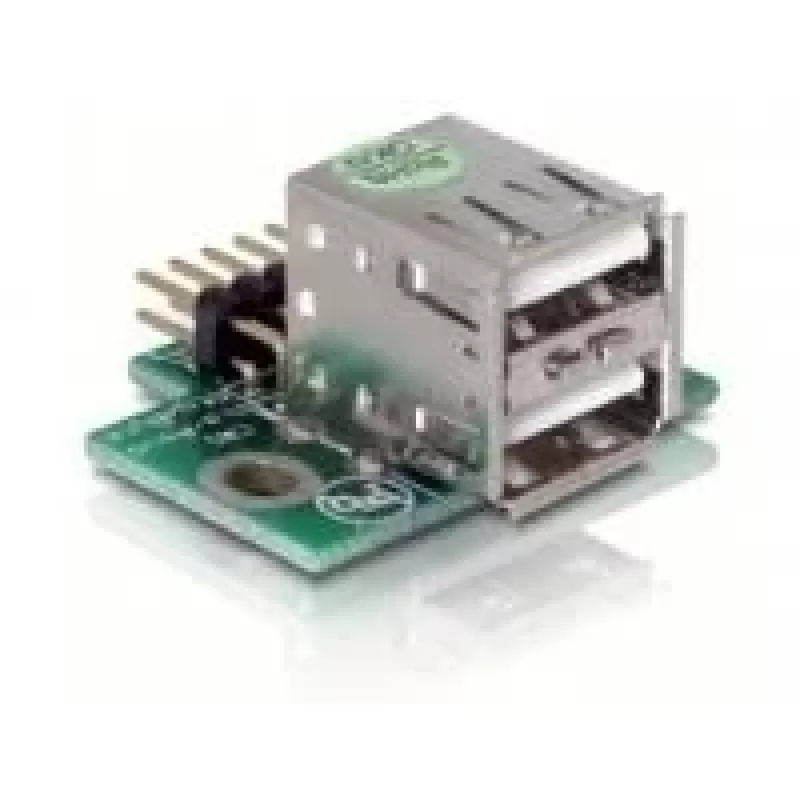

This USB Pinheader-male adapter from DELOCK (model 41763) connects to a free USB pinheader on a motherboard via cable to add two internal USB 2.0 A ports. The silver-coloured connector provides a compact internal extension that lets you attach devices such as USB memory sticks or USB WLAN adapters while keeping connections directed upward from the motherboard pin 1 orientation.

Advantages

The adapter supports USB 2.0 A connections and installs directly to a motherboard pinheader to expand internal connectivity by two ports. Its silver finish and compact cable-mounted design allow convenient placement inside desktop cases without occupying external panel space. The product is compatible with standard USB 2.0 peripherals and is suitable for DIY upgrades and system expansions.

Suitable for

• Adding two internal USB 2.0 ports to a desktop PC
• Connecting USB memory sticks or USB WLAN adapters inside the case
• DIY motherboard upgrades and internal peripheral connections

Key specifications

• Brand: DELOCK
• Model (MPN): 41763
• EAN: 4043619417636
• Connector type: USB 2.0 A (female ports)
• Product colour: Silver

How to use

Locate a free USB pinheader on the motherboard and align the adapter cable connector with the pin 1 orientation shown on the board. Plug the male pinheader into the motherboard socket firmly but gently. Route the cable and position the two female USB 2.0 A ports upward or to a convenient internal location, then secure them if necessary to prevent movement inside the case. Once connected, boot the system and confirm the operating system recognises the new USB ports.

Recommendations

Use this adapter inside a powered-off system and handle the motherboard connector carefully to avoid bending pins. For optimal performance, connect USB 2.0 devices; while USB 1.1 devices will function, they will be limited to lower transfer speeds. Ensure cable routing does not interfere with fans or other components.
