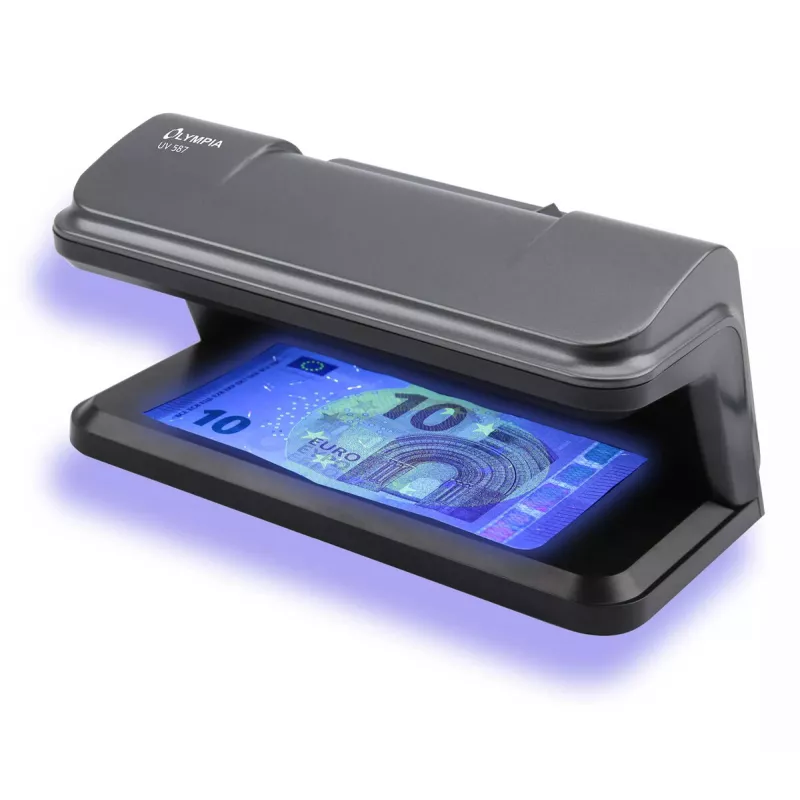

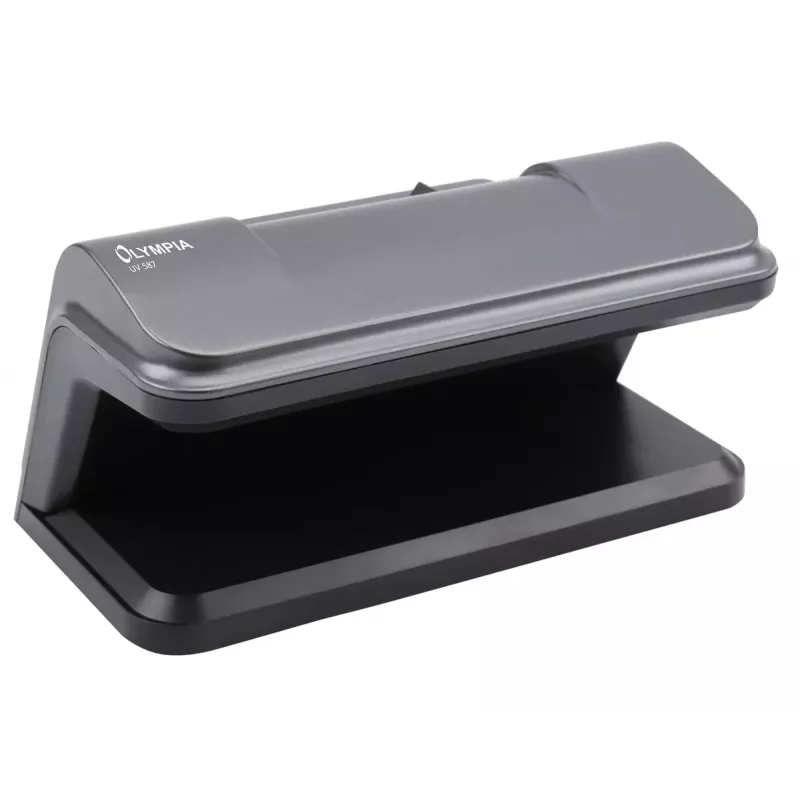

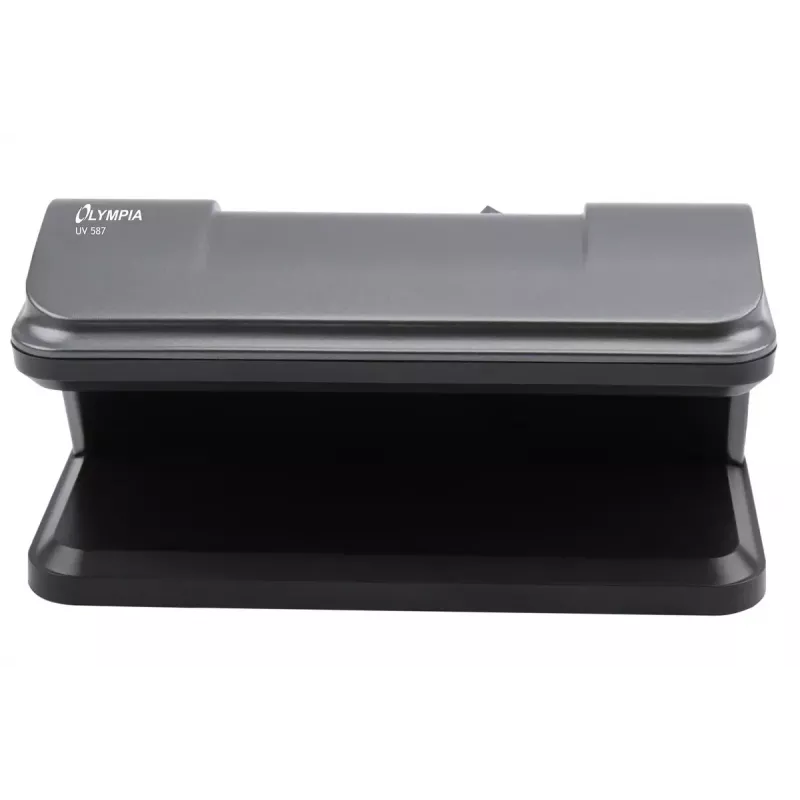

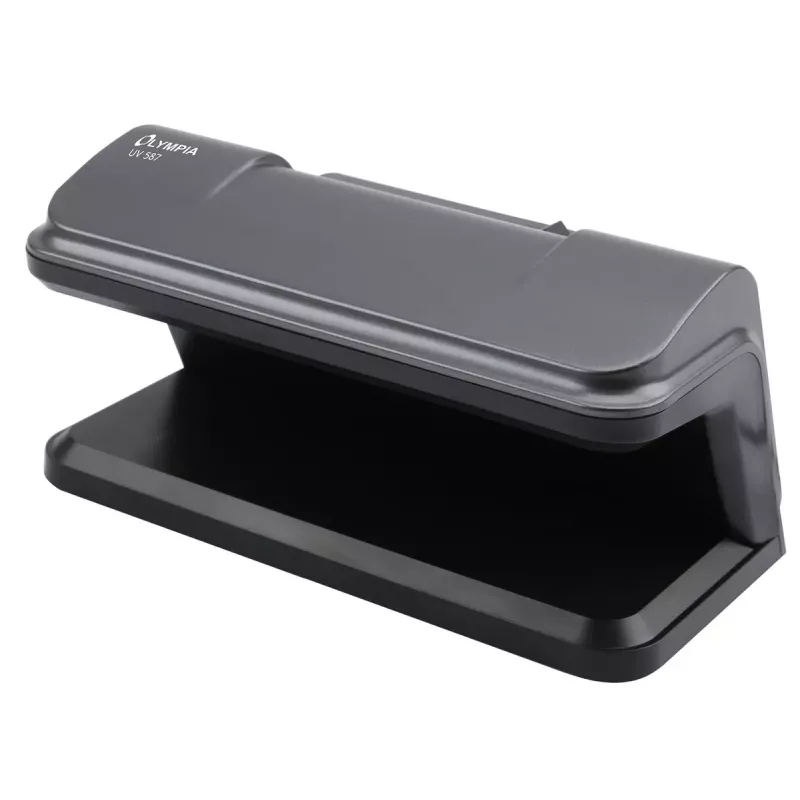

Valsgelddetector Olympia UV 587

The Olympia UV 587 counterfeit bill detector is a compact UV inspection device for identifying forged banknotes and cards. It uses UV LED illumination to reveal security features and fluorescence marks on currency and payment cards. The unit is portable, black in colour, lightweight (0.28 kg) and powered via USB (5V, 1000mA), making it suitable for retail counters, cash points and field use.

Advantages

Equipped with two long-life 3W UV LED lamps that emit 365 nm ultraviolet light, the Olympia UV 587 highlights UV security threads and fluorescent printing on banknotes and cards. The device’s compact dimensions (190 × 90 × 91 mm) and battery/USB power option provide portability and easy integration into point-of-sale environments. It is simple to operate and requires minimal setup.

Suitable for

• Retail checkout counters
• Small businesses and kiosks
• Cash handling at events and markets
• Bank branches and back-office verification

Key specifications

• Model: Olympia UV 587 (MPN: 947730116, EAN: 4030152950928)
• UV source: 2 × 3W LED, 365 nm
• Power supply: USB plug and USB cable, 5V, 1000 mA
• Environment: operating temperature 0–40°C, max. 85% humidity
• Dimensions (W × D × H): 190 × 90 × 91 mm
• Weight: 0.28 kg
• Colour: Black

How to use

Connect the detector to a USB power source using the supplied cable and plug. Place the banknote or card under the UV lamps and observe the illuminated area to check for UV security features such as fluorescent fibers, threads or marks. Move the document slowly if necessary to inspect different sections. Turn off and disconnect when not in use.

Recommendations

Use the device in a dimly lit area for best visibility of UV features, and avoid direct eye exposure to the UV LEDs. Maintain the unit within the specified temperature and humidity range for reliable operation.
