Ventilator ASUS Prime MR120 ARGB zwart 120 mm glijlager PWM 1600 tpm 58 CFM

ASUS Prime MR120 ARGB Fan is a 120 mm computer case fan with an extra-thick 28 mm frame that balances airflow and low noise. The fan delivers up to 58 CFM while operating at noise levels at or below 21 dB(A). It integrates 20 addressable RGB LEDs with dual-sided frame lighting and supports Aura Sync for coordinated lighting across compatible hardware.

Advantages

The reinforced 28 mm frame improves airflow performance without significantly increasing noise. Dual-sided ARGB illumination and a circular LED design provide even, vivid lighting. PWM control enables dynamic speed adjustment up to 1600 RPM for efficient cooling across different workloads, while Aura Sync compatibility allows synchronized lighting with other components.

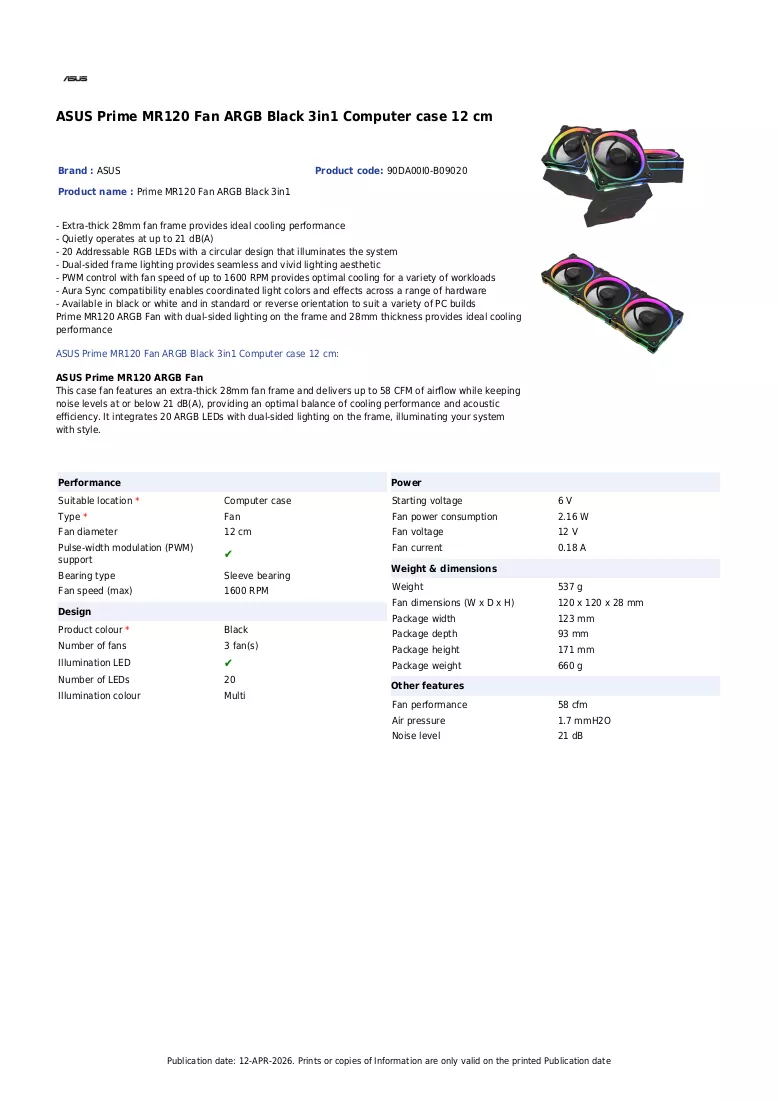

Key specifications

• Fan size: 120 x 120 x 28 mm
• Maximum airflow: up to 58 CFM
• Noise level: ≤ 21 dB(A)
• Fan speed: up to 1600 RPM (PWM)
• LEDs: 20 addressable RGB LEDs, circular design
• Lighting: Dual-sided frame lighting
• Bearing type: Sleeve bearing
• Compatibility: Aura Sync
• Color options: Black (also available in white and reverse orientation variants)

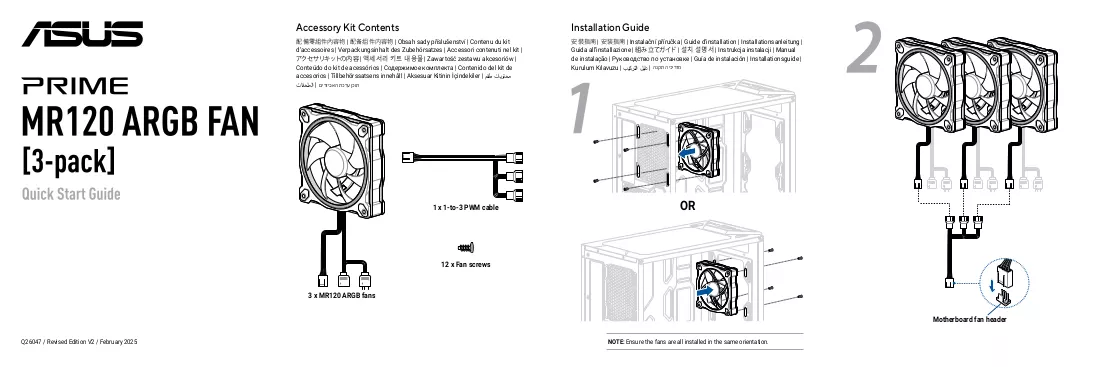

How to use

Install the ASUS Prime MR120 ARGB Fan into a 120 mm fan mount in your PC case, aligning screw holes and securing it with the included screws. Connect the PWM power connector to a compatible motherboard fan header for speed control and connect the ARGB cable to a compatible header or controller to enable addressable lighting and Aura Sync functionality. Configure fan curves and lighting effects in your motherboard software as needed.

Recommendations

Use the PWM header for optimal speed control and connect the ARGB cable to a compatible controller or motherboard header that supports addressable RGB. Choose black or white and the appropriate orientation to match airflow direction and your build’s aesthetic.
