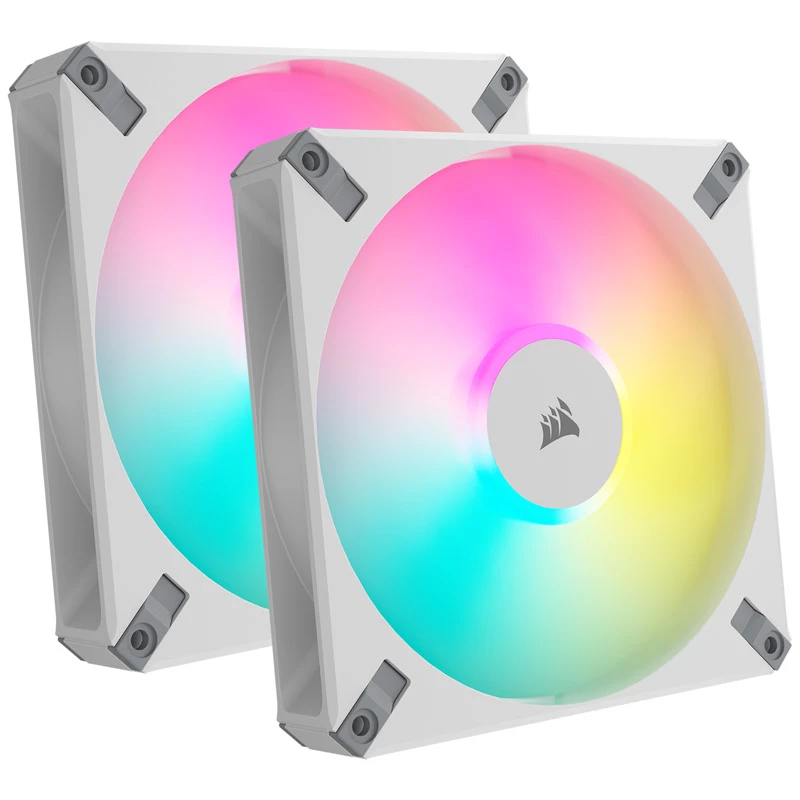

Ventilator Corsair CO-9050160-WW 140mm 500-1700 RPM fluïdumdynamisch lager

The Corsair CO-9050160-WW is a 140mm case fan engineered to provide effective system cooling with a wide speed range from 500 to 1,700 RPM. It uses a fluid dynamic bearing for reduced friction and longer life, delivers up to 89 CFM of airflow, and features anti-vortex AirGuide vanes to concentrate airflow when used as intake, exhaust, or mounted on a radiator or heatsink.

Advantages

The fluid dynamic bearing lowers friction for quieter operation and improved durability, while Zero RPM mode can stop the fan when the system is idle to eliminate fan noise. The fan balances low noise, strong static pressure and high airflow at medium speeds. Eight individually addressable RGB LEDs provide customizable lighting to complement your PC build.

Suitable for

• Case cooling for desktop PCs
• Intake or exhaust fan installation
• Mounting on liquid cooling radiators or CPU heatsinks
• PC builds requiring RGB lighting

Key specifications

• Size: 140 x 140 x 25 mm
• Speed range: 500–1,700 RPM
• Maximum airflow: up to 89 CFM
• Air pressure range: 0.16–2 mmH2O
• Bearing type: Fluid Dynamic Bearing
• Lighting: 8 individually addressable RGB LEDs
• Color: Black
• Weight: 0.205 kg
• Brand / MPN / EAN: CORSAIR / CO-9050160-WW / 0840006662327

How to use

Install the fan in a compatible 140mm mount in your PC case, radiator, or heatsink using the supplied screws or mounting hardware. Connect the power and RGB headers to the appropriate motherboard or controller headers for fan speed control and LED addressability. Configure fan curves and enable Zero RPM mode in your motherboard or fan controller software to stop the fan at low temperatures if desired.

Recommendations

For balanced cooling and low noise, use the fan at medium speed settings or set a temperature-based fan curve. When installing on radiators, ensure correct airflow direction and sufficient clearance around the fan. Use compatible RGB controllers or motherboard headers to control the eight addressable LEDs.
